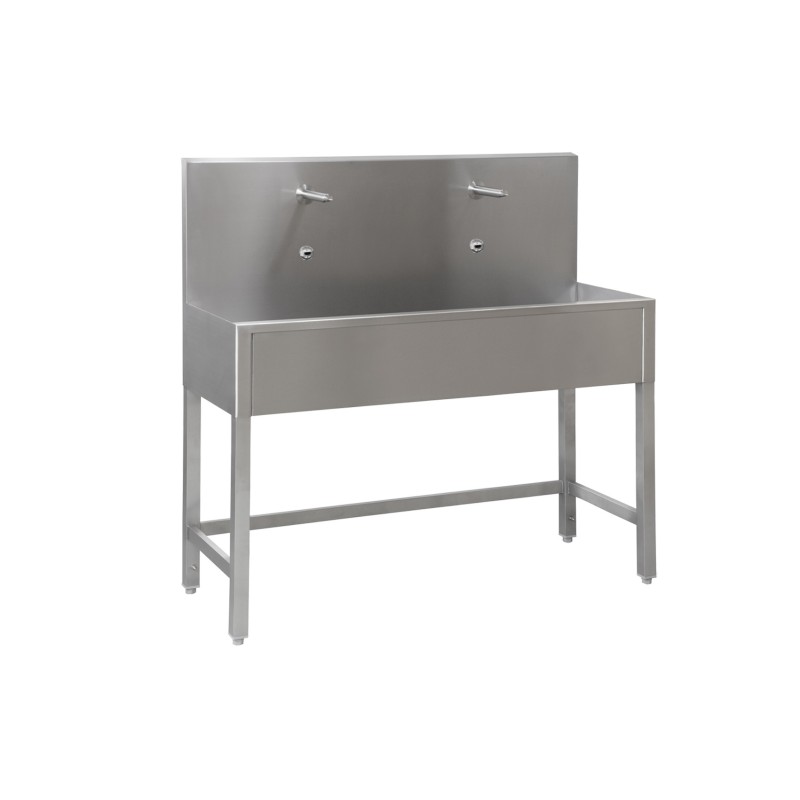

Collective wash basin on foot with electronic faucets integrated

Installation without wall fixation

LMP-050E
€2,660.00 Tax Excl.

Dimension

COLLECTIVE WASH BASIN ON FOOT IN STAINLESS STEEL FROM 2 TO 5 PLACES, WITH ELECTRONIC TAPS INTEGRATED

Solution in case of impossibility to fix to the wall.

Operation function STANDARD = the water runs as long as the hands are placed in the detection area
or function START/STOP =  the water runs when approaching the hands from 5-10 cm from the detection area and stops when placing your hands again at a short distance.

- Infrared detection with stainless steel spouts, solenoid valves 1/2'', connection pipes,

- 2 stopcocks with squares and check valves (pre-mixed water) and filters, plug and s-trap included.

- External transformer 230/24V in sus.

- Remote control SLD03 pour adjusting the settings (detection length, flow time, start/stop, periodical rinse).



OPTIONS:

Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
Sides 1,5 mm - tank 1,2 mm
Finish
Brushed
Tap sensor
Self-adjusting infrared
Electrical supply
230/24V transformer
Safety shut-off
After 5 minutes without interruption (adjustable)
Water inlet
1/2''
Evacuation
Ø 50 mm
Pressure
1-6 bars
Max. eligible temperature
70°C
Flow rate
6 LPM (3,8 or 1,9 LPM upon request)
Fixing
Self-supporting on feet
Dimensions
W1250 x D480 x H1270 mm (wash basin 850 mm) - Tray D380 x H250 mm
W1900 x D480 x H1270 mm (wash basin 850 mm)
W2500 x D480 x H1270 mm (wash basin 850 mm)
W3000 x D480 x H1270 mm (wash basin 850 mm)

COLLECTIVE WASH BASIN ON FOOT IN STAINLESS STEEL FROM 2 TO 5 PLACES, WITH ELECTRONIC TAPS INTEGRATED

Solution in case of impossibility to fix to the wall.

Operation function STANDARD = the water runs as long as the hands are placed in the detection area
or function START/STOP =  the water runs when approaching the hands from 5-10 cm from the detection area and stops when placing your hands again at a short distance.

- Infrared detection with stainless steel spouts, solenoid valves 1/2'', connection pipes,

- 2 stopcocks with squares and check valves (pre-mixed water) and filters, plug and s-trap included.

- External transformer 230/24V in sus.

- Remote control SLD03 pour adjusting the settings (detection length, flow time, start/stop, periodical rinse).



OPTIONS:

Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
Sides 1,5 mm - tank 1,2 mm
Finish
Brushed
Tap sensor
Self-adjusting infrared
Electrical supply
230/24V transformer
Safety shut-off
After 5 minutes without interruption (adjustable)
Water inlet
1/2''
Evacuation
Ø 50 mm
Pressure
1-6 bars
Max. eligible temperature
70°C
Flow rate
6 LPM (3,8 or 1,9 LPM upon request)
Fixing
Self-supporting on feet
Dimensions
W1250 x D480 x H1270 mm (wash basin 850 mm) - Tray D380 x H250 mm
W1900 x D480 x H1270 mm (wash basin 850 mm)
W2500 x D480 x H1270 mm (wash basin 850 mm)
W3000 x D480 x H1270 mm (wash basin 850 mm)
