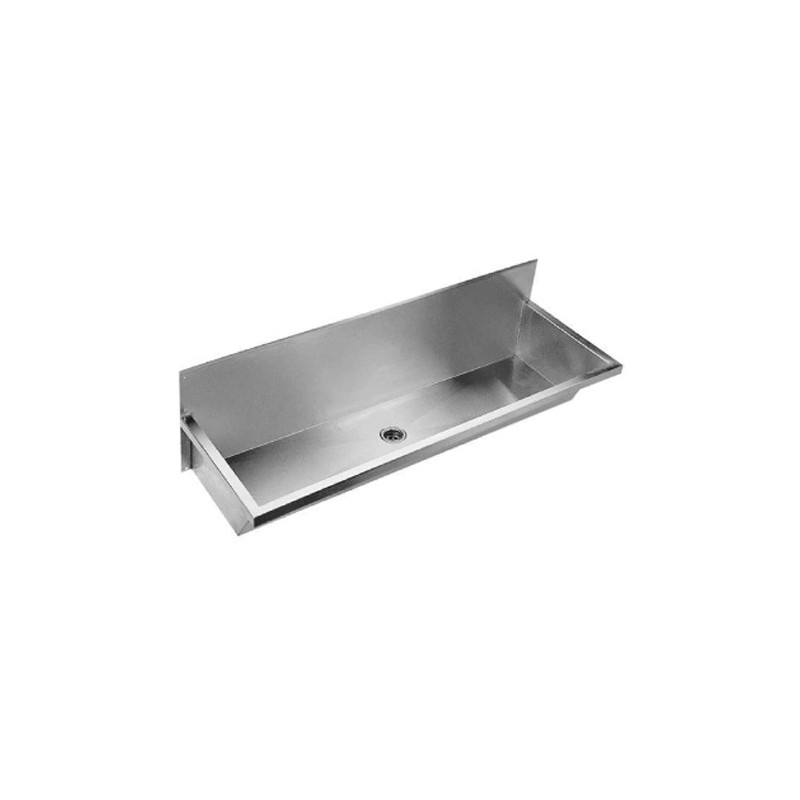

Stainless steel wash trough for wall-mounted taps
for wall-mounted taps...
Technical sheet & documents
No technical sheet available for this reference. Request the sheet
WALL-MOUNTED STAINLESS STEEL WASH TROUGH FOR WALL-MOUNTED TAPS
of particularly robust construction...
Trough height 200 / splashback 150 mm
| 2 users - Dim. W 1200 x D 440 x H 350 | Ref. LVC-1200 |
| 3 users - Dim. W 1800 x D 440 x H 350 | Ref. LVC-1800 |
| 4 users - Dim. W 2400 x D 440 x H 350 | Ref. LVC-2400 |
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.5 mm
- Finish
- Brushed
- Evacuation
- Ø 32 mm
- Fixing
- Wall mounted
- Dimensions
- W1200 x D440 x H350 mm
W1800 x D440 x H350 mm
W2400 x D440 x H350 mm - Waste connection
- 1 1/4"
- Outlet details
- Perforated grid free drainage, drain 1 1/4''
WALL-MOUNTED STAINLESS STEEL WASH TROUGH FOR WALL-MOUNTED TAPS
of particularly robust construction...
Trough height 200 / splashback 150 mm
| 2 users - Dim. W 1200 x D 440 x H 350 | Ref. LVC-1200 |
| 3 users - Dim. W 1800 x D 440 x H 350 | Ref. LVC-1800 |
| 4 users - Dim. W 2400 x D 440 x H 350 | Ref. LVC-2400 |
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.5 mm
- Finish
- Brushed
- Evacuation
- Ø 32 mm
- Fixing
- Wall mounted
- Dimensions
- W1200 x D440 x H350 mm
W1800 x D440 x H350 mm
W2400 x D440 x H350 mm - Waste connection
- 1 1/4"
- Outlet details
- Perforated grid free drainage, drain 1 1/4''
