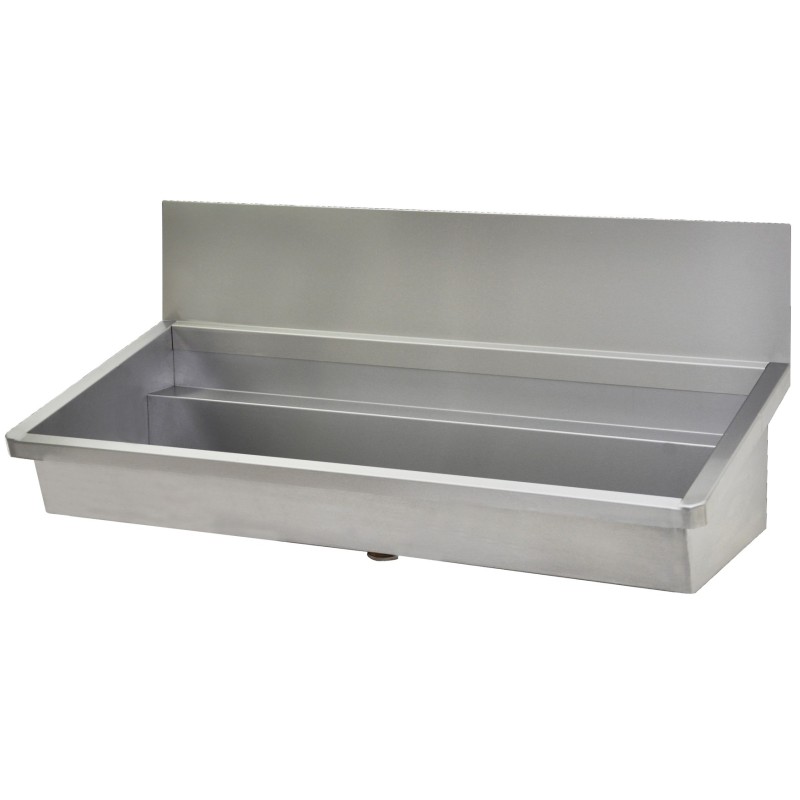

Industrial stainless steel washbasin with high splashback INTER-9-D
Protects the wall from dirt and water splashes
Technical sheet & documents
No technical sheet available for this reference. Request the sheet
Wall-mounted stainless steel wash trough INTER-9-D with tap deck and high splashback for 1 to 5 users, combining hygiene, safety and maximum functionality. The splashback protects the wall from splashes and makes cleaning easier.
Available made to measure and ideal for installation in series.
The flat bottom lets you stand a bucket in the basin.
Front corners chamfered at 45°.
Accessible to people with reduced mobility from a width of 100 cm.
Vandal-resistant.
- Robot-welded with no grooves in the corners, preventing the growth of bacteria.
- No dust ledge under the basin, for hygiene.
- Built-in 75 mm tap deck and 103 mm high splashback protecting the wall from water splashes and dirt.
With an additional 185 mm high splashback, to be glued or screwed on.
- Also suitable for wall-mounted taps.
 |
| Flexible length from 600 to 3000 mm |
- Quick and easy installation. Built-in 4-point fixing system for tightening the basin against the wall.
- Complies with EN 14296 on the load resistance of sanitary appliances.
|
A higher initial price than ceramic, but with a built-in splashback against water splashes and brackets included; one person can install it (light weight, built-in brackets, fixing holes easy to align), and no pipework needs to be built into the wall… |
 |
 |
 |
 |
 |
| Rounded corners to prevent injury on impact | Pressed waste with no water retention or screws, for hygiene and easy cleaning | High-quality welding. Inside angles greater than 90° | Enough room for a bucket | Optional stainless steel lift-up grid, as a support or drainer |
| Stainless steel stays rust-free thanks to its chromium content, which gives it remarkable resistance to corrosion and wear (a "passive" surface film). Type 441 chromium steel is no exception, and is used successfully in major applications such as sinks, washing machine drums and exhaust systems… |
- Material
- AISI 430/441 stainless steel
- Detailed composition
- Sides 1.5 mm - tank 0.8 mm
- Stainless steel thickness
- 0.8 mm
1.5 mm - Finish
- Brushed
- Evacuation
- Ø 40 mm
- Waste connection
- 1 1/2"
- Fixing
- Wall mounted
- Dimensions
- W600 x D395 x H415 mm
W1000 x D395 x H415 mm
W1200 x D395 x H415 mm
W1400 x D395 x H415 mm
W1500 x D395 x H415 mm
W1800 x D395 x H415 mm
W2000 x D395 x H415 mm
W2100 x D395 x H415 mm
W2400 x D395 x H415 mm
W2800 x D395 x H415 mm
W3000 x D395 x H415 mm
Wall-mounted stainless steel wash trough INTER-9-D with tap deck and high splashback for 1 to 5 users, combining hygiene, safety and maximum functionality. The splashback protects the wall from splashes and makes cleaning easier.
Available made to measure and ideal for installation in series.
The flat bottom lets you stand a bucket in the basin.
Front corners chamfered at 45°.
Accessible to people with reduced mobility from a width of 100 cm.
Vandal-resistant.
- Robot-welded with no grooves in the corners, preventing the growth of bacteria.
- No dust ledge under the basin, for hygiene.
- Built-in 75 mm tap deck and 103 mm high splashback protecting the wall from water splashes and dirt.
With an additional 185 mm high splashback, to be glued or screwed on.
- Also suitable for wall-mounted taps.
|
| Flexible length from 600 to 3000 mm |
- Quick and easy installation. Built-in 4-point fixing system for tightening the basin against the wall.
- Complies with EN 14296 on the load resistance of sanitary appliances.
|
A higher initial price than ceramic, but with a built-in splashback against water splashes and brackets included; one person can install it (light weight, built-in brackets, fixing holes easy to align), and no pipework needs to be built into the wall… |
|
|
|
|
|
| Rounded corners to prevent injury on impact | Pressed waste with no water retention or screws, for hygiene and easy cleaning | High-quality welding. Inside angles greater than 90° | Enough room for a bucket | Optional stainless steel lift-up grid, as a support or drainer |
| Stainless steel stays rust-free thanks to its chromium content, which gives it remarkable resistance to corrosion and wear (a "passive" surface film). Type 441 chromium steel is no exception, and is used successfully in major applications such as sinks, washing machine drums and exhaust systems… |
- Material
- AISI 430/441 stainless steel
- Detailed composition
- Sides 1.5 mm - tank 0.8 mm
- Stainless steel thickness
- 0.8 mm
1.5 mm - Finish
- Brushed
- Evacuation
- Ø 40 mm
- Waste connection
- 1 1/2"
- Fixing
- Wall mounted
- Dimensions
- W600 x D395 x H415 mm
W1000 x D395 x H415 mm
W1200 x D395 x H415 mm
W1400 x D395 x H415 mm
W1500 x D395 x H415 mm
W1800 x D395 x H415 mm
W2000 x D395 x H415 mm
W2100 x D395 x H415 mm
W2400 x D395 x H415 mm
W2800 x D395 x H415 mm
W3000 x D395 x H415 mm
