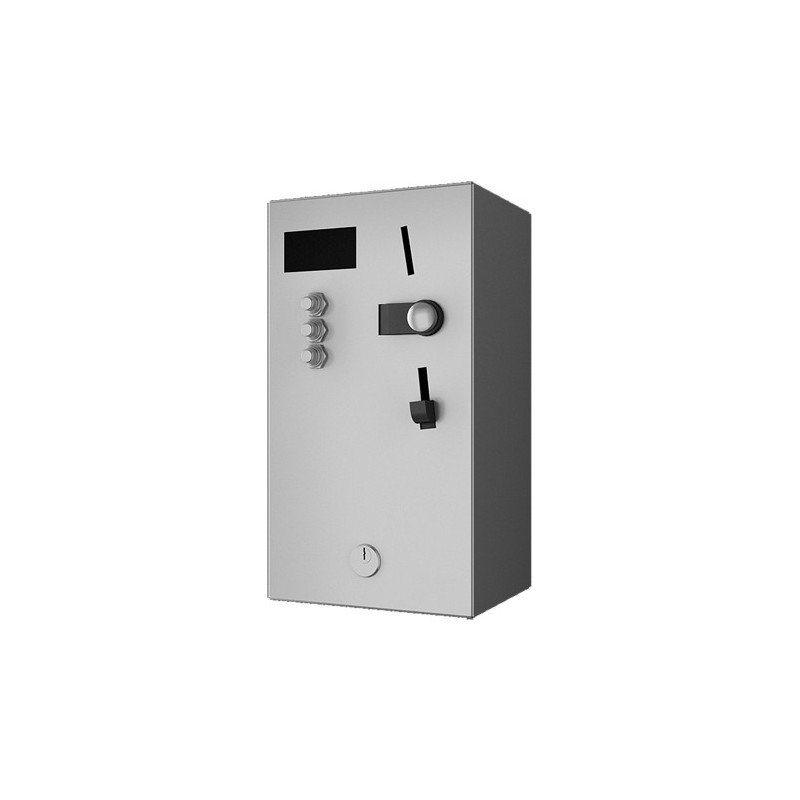

Coin- or token-operated shower timer for up to 12 showers

Wall-mounted timer for 4 to 12 showers, for €1 or €2 coins, or tokens (accepts all 3)

The solenoid valve is opened by a coin or token.

Shower assigned by the machine, with its number shown on a digital display.

Two operating modes:

1 - Direct control: water flows 30 seconds after the coin is inserted, for a fixed time (adjustable from 0 to 255 s)

2 - Interactive control: users turn the water on themselves at the shower valve.
For use with shower tapware fitted with a piezo touch button and wired to the timer.
Flow time is counted down while the valve is open, with a maximum interruption time of 4 minutes (these 4 minutes include the time between inserting the coin and starting the shower). The 4-minute limit is factory-set so that the shower is not blocked for the next users if a user does not use the time paid for (adjustable by remote control).
Configuration on request.

The timer adds up coins but does not give change.

Settings are adjusted with the SLD05 remote control (shower time according to the coin or token inserted, start delay, activation of the periodic hygiene flush, token value, display contrast, option to switch off some showers).

Vandal-resistant.

Periodic hygiene flush.

30 seconds before the end, the user is warned by a brief interruption of the water flow.

Usage statistics and device diagnostics can be viewed on the screen.

Fitted with a lock.

Indoor use (+5 to +40 °C).

SPZ02 transformer to power the timer in direct control, or in interactive control with up to 5 piezo shower valves

SPZ01 transformer to power the timer in interactive control with up to 9 piezo shower valves

CONTACT US TO CONFIGURE THE TIMER FOR YOUR NUMBER OF SHOWERS (max 12)

DIN-rail valve distribution board, to be added to the timer (ref. SA-15 or SA-17).
