Urinal design URI-ONE, stainless steel, with integrated invisible detection

URI-ONE automatic stainless-steel urinal, vandal-resistant.

Stainless steel URI-ONE urinal with integrated automatic detection

Stainless steel urinal by concealed trigger URI-ONE-TH

integrated detection, quickly mounted

Reference UR-01-TH

Unit price

€895.00 Tax Excl.

Power supply

Mains
Battery

Ask a question

INDIVIDUAL URINAL IN STAINLESS STEEL URI-ONE WITH AUTOMATIC CONCEALED FLUSH

The system automatically activates the flush once it detects a change of temperature (urine heat)

Invisible and inaccessible trigger = aesthetic and hidden from vandalism

System with no s-trap = maximal reliability

Quick and simple installation = controlled costs

Wall mounted fixation by service hatch with 2 Torx security screws M5x16mm.

ECO modes for high water savings:
ECO 1: Reduction in the number of rincing cycles during peak usage periods (schools, theatres, stadiums...).
ECO 2: Flushing of the urinal after each use, but not always with the same water volume.
Adjustable settings depending on usage frequency.

OPTIONS:

Remote control SLD04
Transformer box to supply up to 5 faucets SPZ02 (ref. SPZ02)
Transformer box to supply up to 9 faucets SPZ01 (ref. SPZ01)
On request rail DIN transformer
Urinal support frame

Sensor: Thermal sensor
Power supply: 6V battery
Embedded 230V transformer
Consumption: 7 W on 24 V ; 3 W on 6 V
Hygienic rinse anti-legionella: After 24 H of non-use (adjustable)
Material: AISI 304 brushed stainless steel finish
Stainless steel thickness: 1,5 mm
Finish: Brushed
Stopcock: Bracket with filter
Water inlet: M1/2'' hose
Evacuation: Ø 40 mm (trap included)
Pressure: 1-6 bars
Flush time: 0.,5 to 15,5 sec. adjustable
Flow rate: 12 LPM.
Fixing: Frontal by screws and wall plugs
Operation settings: Adjustable by SLD04 remote control: detection sensitivity, flow time, interval rinse, temporary off...

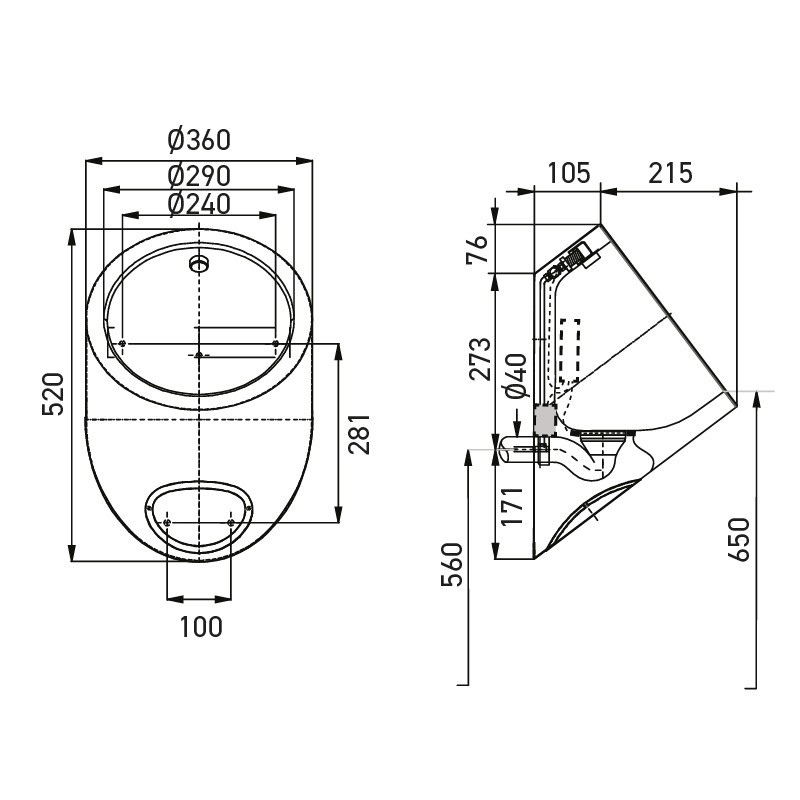

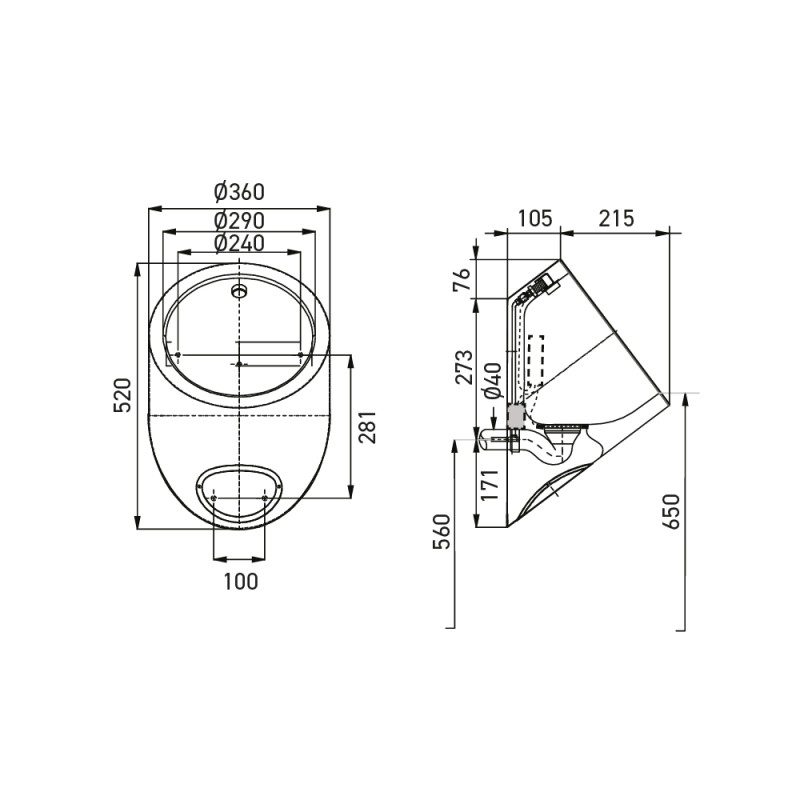

Dimensions: W360 x D300 x H520 mm
Warranty: Electronics 5 years

UR-01-TH_Technical-sheet.pdf
