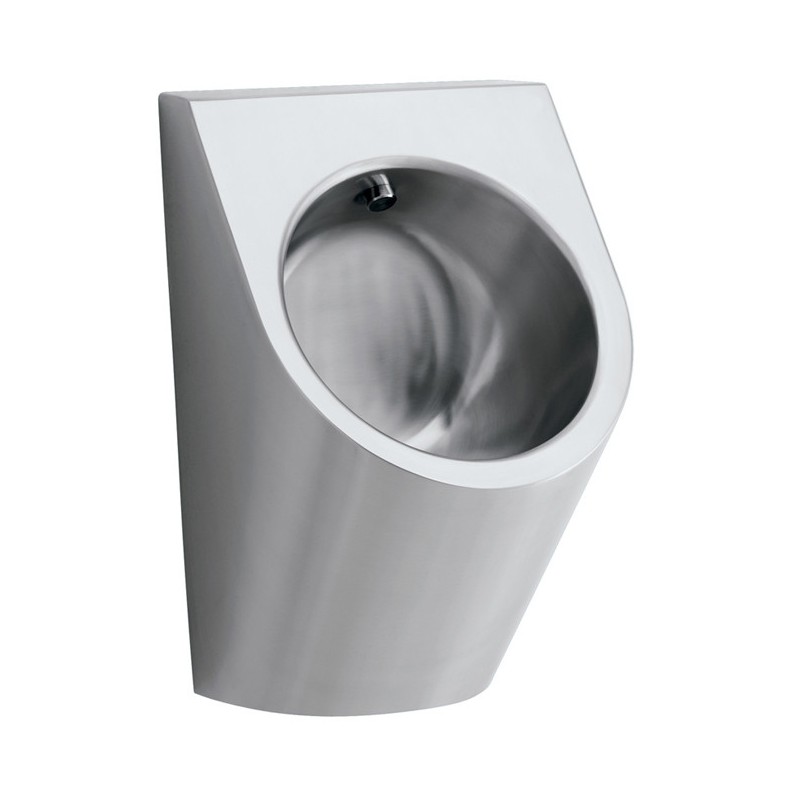

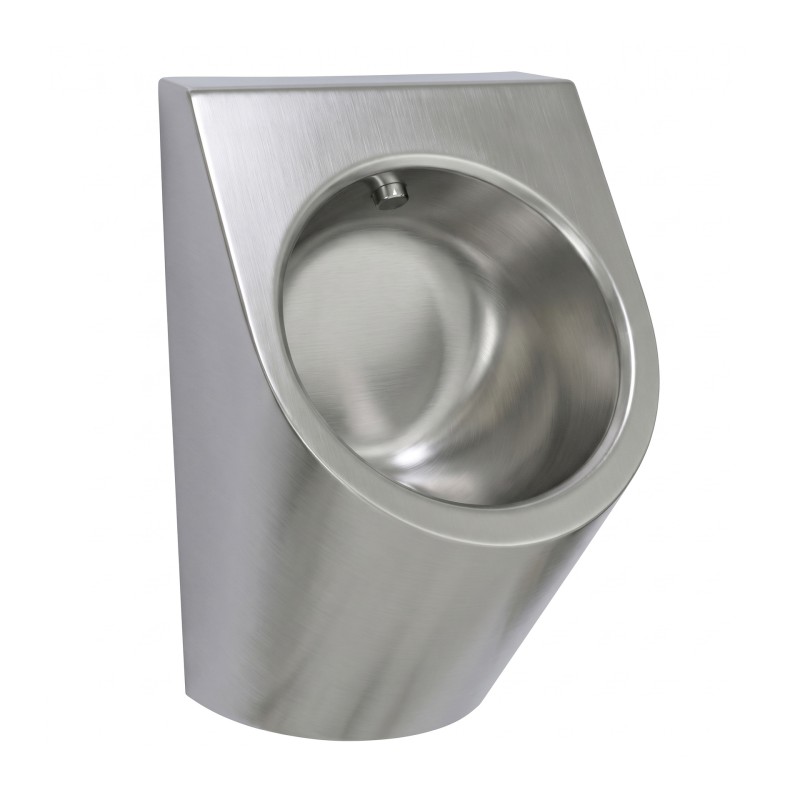

Wall-mounted stainless steel touchless urinal URBA-TH with hidden sensor
with automatic function heavy duty and economical
INDIVIDUAL URINAL URBA WITH AUTOMATIC CONCEALED FLUSH
Wall mounted urinal with thermic concealed electronic trigger = no risks of vandalism.
The system automatically activates the flush once it detects a change of temperature (urine heat)
| The quality of a unique detection system situated in the dry place for a long lasting urinal. No risks of urinal alteration unlike other systems integrated to the s-trap. Inviolable perforated plug. |
Wall-mounted fixation by service hatch with 2 Torx security screws M5x16mm.
ECO modes for high water savings:
ECO 1: Reduction in the number of rincing cycles during peak usage periods (schools, theatres, stadiums...).
ECO 2: Flushing of the urinal after each use, but not always with the same water volume.
Adjustable settings depending on usage frequency.
- Sensor
- Thermal sensor
- Power supply
- 6V battery
Embedded 230V transformer - Consumption
- 7 W on 24 V ; 3 W on 6 V
- Hygienic rinse anti-legionella
- After 24 H of non-use (adjustable)
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.5 mm
- Finish
- Brushed
- Stopcock
- Bracket with filter
- Water inlet
- 1/2"
- Evacuation
- Ø 40 mm
- Pressure
- 1-6 bars
- Flow rate
- 12 LPM.
- Fixing
- Wall mounted
- Mounting details
- By screws and wall plugs
- Operation settings
- Adjustable by SLD04 remote control: detection sensitivity, flow time, interval rinse, temporary off...

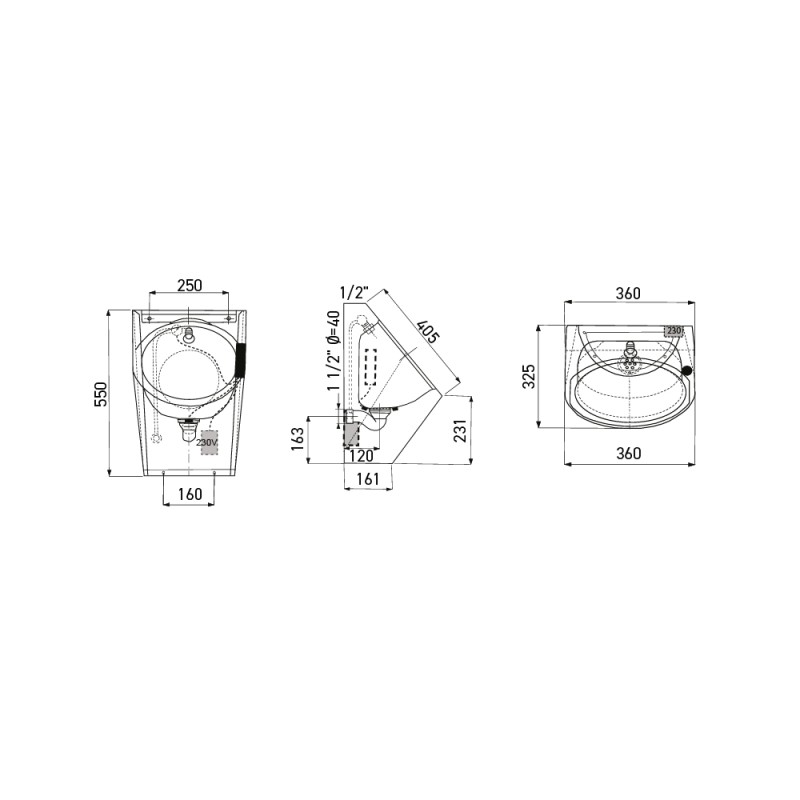

- Dimensions
- W360 x D325 x H550 mm
- Warranty
- Electronics 5 years
- Outlet details
- Ø 40 mm (trap included)
- Connection gender
- Male
- Water inlet details
- M1/2'' hose
