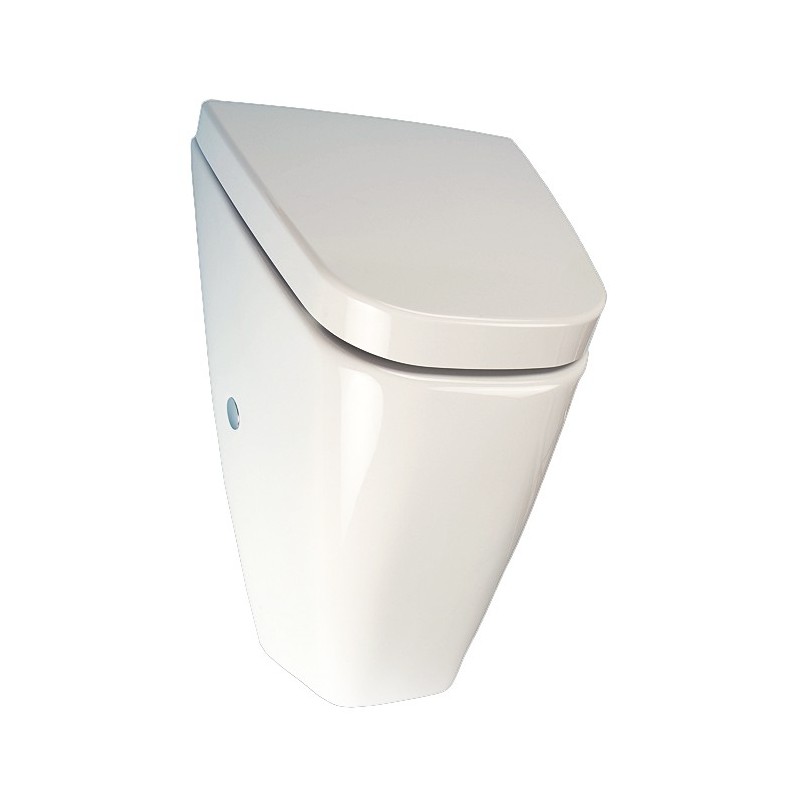

Urinal with automatic flush VILA

for intensive collective sanitary use...

Réf. : S12RS

€1,038.00 Tax Excl.

Power supply

Ask a question

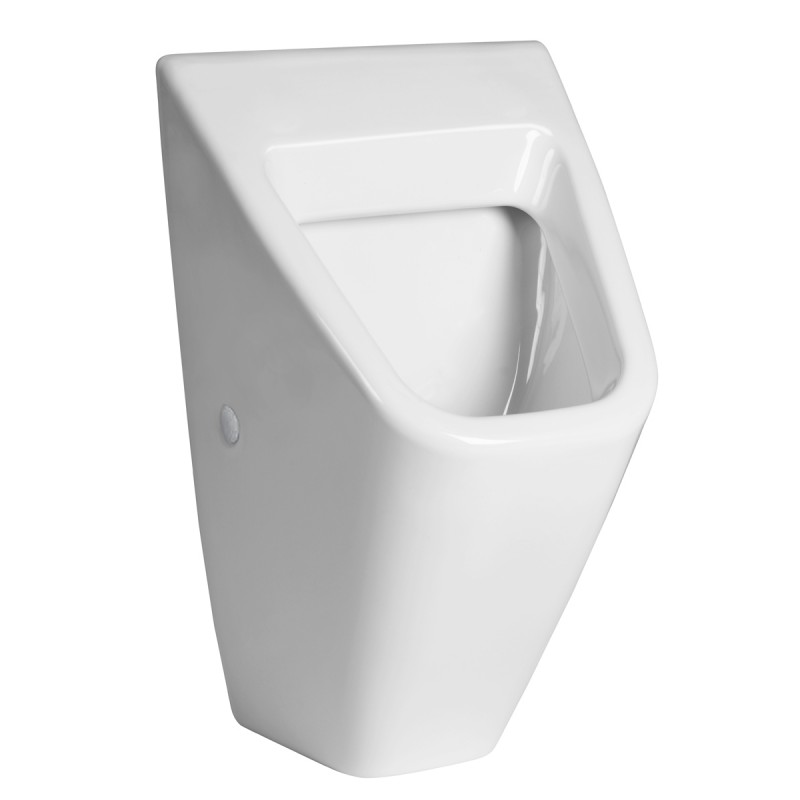

VILA CERAMIC URINAL BY AUTOMATIC CONCEALED FLUSH

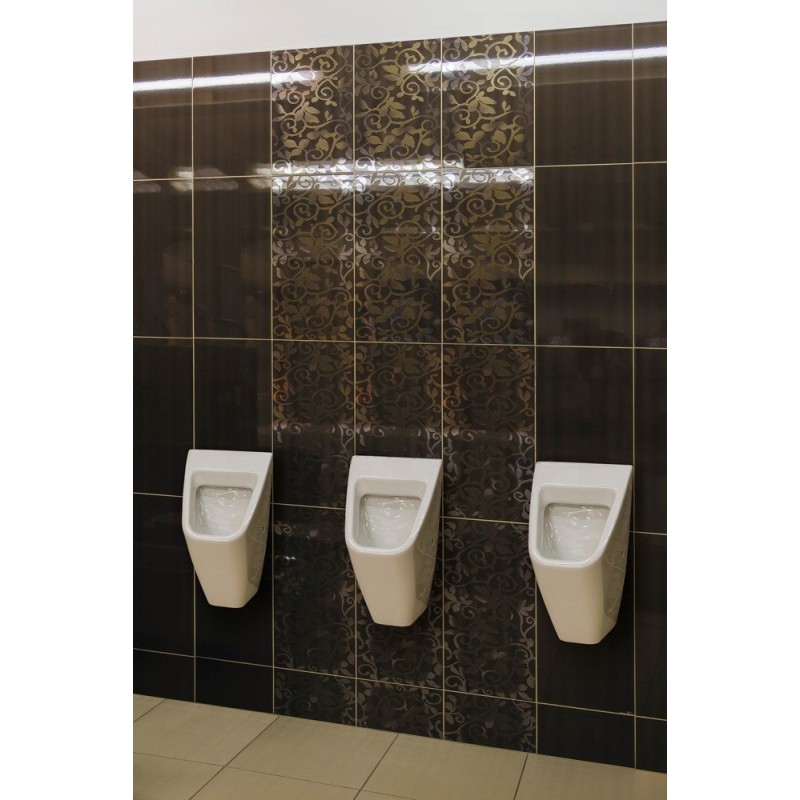

Designed for public sanitary spaces with high attendance.
With its design shape, this 1-liter s-trap system urinal allows you to save on water and to eliminate unpleasant smells.

- 1L economical flush
- easy assembly with the template included
- wall-mounted box with solenoid valve and shut-off valve.
- activation only when the urinal is used (takes into consideration the urine or water movement)
- adjustable flush duration from 0,5 to 15,5 sec.
- minimum use time adjustable before flushing from 6 to 15 sec.
- Adjustable settings by SLD04 remote control (no need to disassemble the urinal)
- Automatic flush after 6 hours without use
- possibility to adjust the flow by a stop valve
- water s-trap refill after each flush

VILA-boitier-encastrement

OPTIONS:

Remote control SLD04
Transformer box 230/24V by electrical supply SPZ07 (ref. SPZ07)
Transformer box 230/24V to supply 1 urinal SPZ06 (ref. SPZ06)
Transformer box to supply up to 5 urinals SPZ02 (ref. SPZ02)
Transformer box to supply up to 9 urinals SPZ01 (ref. SPZ01)
On request rail DIN transformer
Fold up lid

Sensor: Concealed radar behind the ceramics
Power supply: 6V battery
230V mains operated
External 230/24V transformer
Consumption: 10 W on 24 V
Material: White ceramics
Water inlet: Threaded M1/2''
Evacuation: Ø 50 mm
Pressure: 1-6 bars
Flow rate: 12 LPM.
Flush volume: 1 L (adjustable 0.5 to 4 LPM.)
Operation settings: Adjustable by SLD04 remote control: detection sensitivity, flow time, interval rinse, temporary off...
Dimensions: W310 x D280 x H490 mm
Warranty: Electronics 5 years

S12_Technical-sheet (pdf)
