Rimless and automatic urinal CAPRINO with concealed sensor

with economical flush 1L...

Reference S49Z
Unit price
€1,165.00 Tax Excl.
Power supply

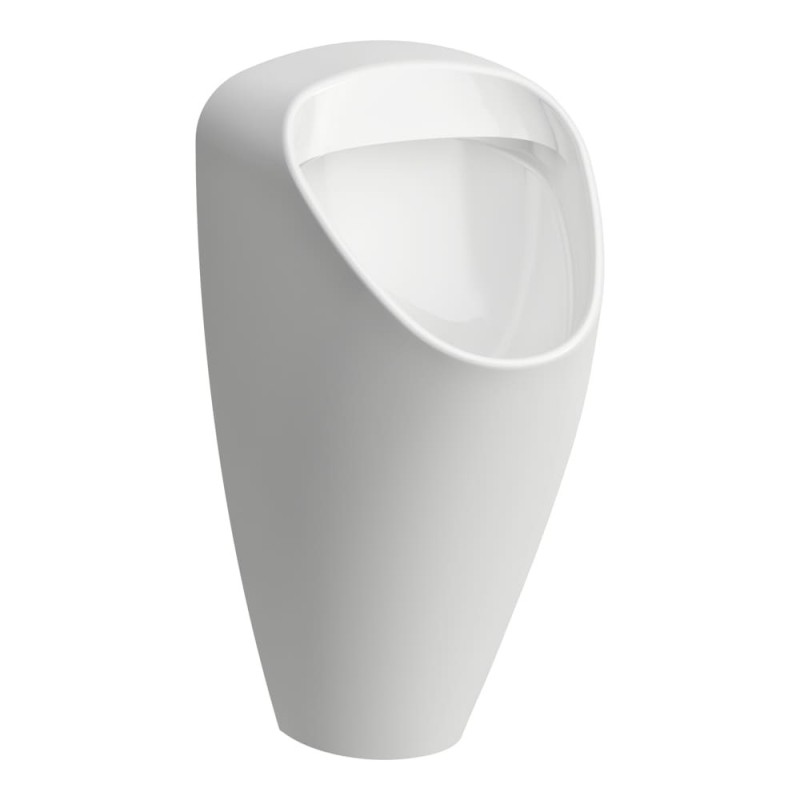

WALL MOUNTED CERAMIC URINAL CAPRINO RIMLESS WITH CONCEALED RADAR DETECTION

With no more rinsing rim, design of the urinal becomes more slim, giving it a modern, light and elegant look.
The rinsing water splitter washes the urinal bowl more deeply, which make it even more hygienic and easy to clean.
With its conical shape and its 1L automatic flush, this urinal reduces water expenses and preserves the environment, while avoiding bad smells.

"Plug and Play" : just mount it, connect it and the urinal is working ! With radar sensor ceramic-bound.
Battery operating version : battery accessible from the bottom (without disassembling).

Features:

- Economical 1 L flush
- Easy to assemble thanks to the template included with ceramic-bound electronic detection
- Activation only when the urinal is used (takes into consideration the urine or water movement)
- Adjustable flush duration from 0,5 to 15,5 sec.
- Minimum use time adjustable before flushing from 6 to 15 sec.
- Adjustable settings by SLD04 remote control (no need to disassemble the urinal)
- Automatic flush after 6 hours without being used
- Possibility to regulate the water flow by stopcock
- Battery access from the bottom, no need to disassemble the urinal

GOLEM urinal installation

OPTIONS:

Sensor
Concealed radar behind the ceramics
Power supply
6V battery
230V mains operated
External 230/24V transformer
Consumption
8 W on 24 V ; 3 W on 6 V
Material
White ceramics
Water inlet
Threaded M1/2''
Evacuation
Ø 50 mm
Pressure
1-6 bars
Flow rate
12 LPM.
Flush volume
1 L (adjustable 0.5 to 4 LPM.)
Operation settings
Adjustable by SLD04 remote control: detection sensitivity, flow time, interval rinse, temporary off...
Dimensions
Warranty
Electronics 5 years
