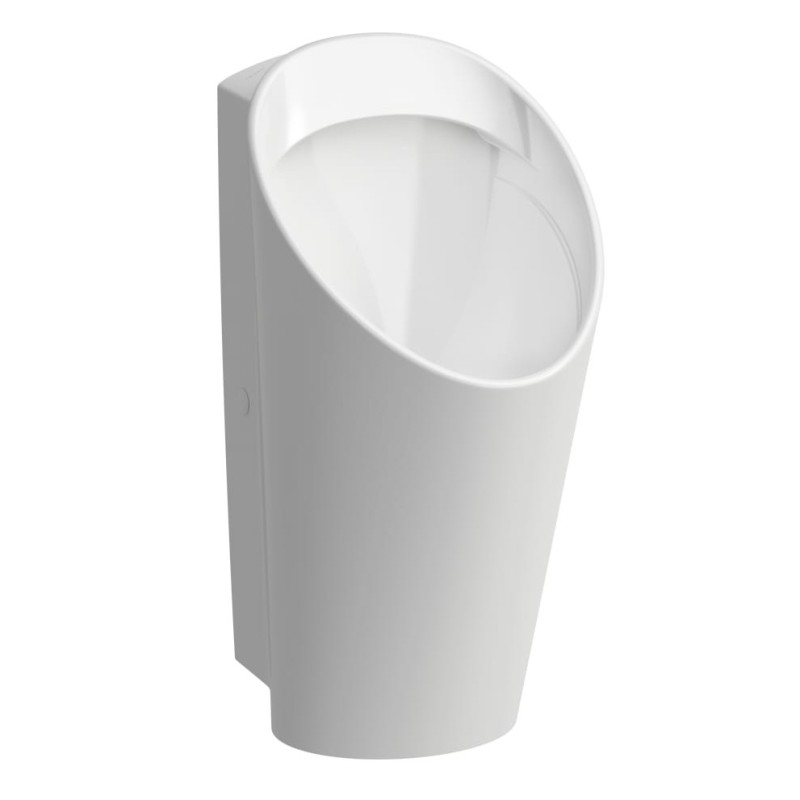

Photo Automatic urinal LEMA rimless with removable drain from the top S59RZ

Ceramic urinal with concealed sensors LEMA

Easy to maintain, removable s-trap by the top

Ref. : S59RZ

€1,890.00 excl. VAT

Tax excluded

Choose a model

Quantity

Ask a question

CERAMIC URINAL LEMA WITH CONCEALED AUTOMATIC RINSE

Designed for public sanitary spaces with high attendance.
With its design shape, this 1-liter s-trap system urinal allows you to save on water and to eliminate unpleasant smells.

Easy to clean and particularly adapted to public sanitary facilities: removable s-trap by the tap with the help of a special key, to simplify access for cleaning the pipes, without dismantling the urinal.

In the past, urinals especially in heavily frequented motorway service areas or busy restaurants often had to be dismantled to remove residue from the flushing channels or to replace the siphon trap. Thanks to a revolutionary system this is not the case for lema. It can be reliably maintained with no need for dismantling. To do so, the siphon trap is removed from above. Easy access is thus gained to the water courses and residue can be effortlessly eliminated. This is an invaluable benefit especially in public sanitary areas where quick and easy cleaning is reflected in reduced costs.

- 1L economical flush
- activation only when the urinal is used (takes into consideration the urine or water movement)
- adjustable flush duration from 0,5 to 15,5 sec.
- minimum use time adjustable before flushing from 6 to 15 sec.
- adjustable settings by SLD04 remote control (no need to disassemble the urinal)
- automatic flush after 6 hours without use
- possibility to adjust the flow by a stop valve
- water s-trap refill after each flush
- easy to mount thanks to a supplied template

OPTIONS:

Remote control SLD04
Transformer box 230/24V by electrical supply SPZ07 (ref. SPZ07)
Transformer box 230/24V to supply 1 urinal SPZ06 (ref. SPZ06)
Transformer box to supply up to 5 urinals SPZ02 (ref. SPZ02)
Transformer box to supply up to 9 urinals SPZ01 (ref. SPZ01)
On request rail DIN transformer

Sensor: Radar concealed behind the ceramics
Electrical supply: External transformer 230/24 V, mains 230 V or battery 6 V
Consumption: 10 W on 24 V ; 1,4 W on 6 V
Material: White ceramics
Water inlet: Threaded M1/2''
Evacuation: Ø 50 mm
Pressure: 1-6 bars
Flow rate: 12 LPM.
Flush volume: 1 L (adjustable 0.5 to 4 LPM.)
Operation settings: Adjustable by remote control SLD04 : Detection sensitivity, flow time, interval rinse, temporary off...
Dimensions: W350 x D420 x H730
Warranty: Electronic 5 years
