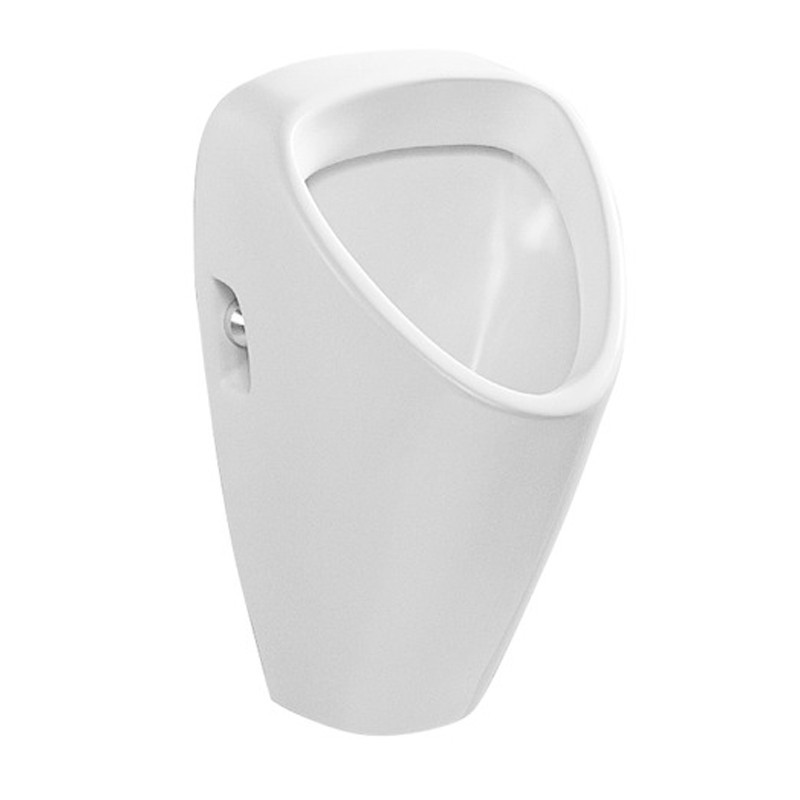

Automatic urinal with invisible sensor GOLEM
Smart urinal GOLEM with automatic rinsing
Smart urinal GOLEM with automatic rinsing
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
Automatic urinal with invisible sensor GOLEM
Smart urinal GOLEM with automatic rinsing
Smart urinal GOLEM with automatic rinsing

Automatic urinal with concealed sensor GOLEM

with concealed sensor and economical 1L flush...

S19RS
€775.00 Tax Excl.

Power supply

INVISIBLE CERAMIC URINAL GOLEM WITH CONCEALED SENSOR INTEGRATED

Designed for public sanitary spaces with high attendance.
With its keel design, this 1-liter s-trap system urinal allows you to save water and to eliminate unpleasant smells.


"What is important, you can not see"
- pure aesthetic in the absence of a visible flush faucet
- easy to install with detection and wires behind the urinal
- vandal-proof as it's out of the public reach


- 1L economical flush
- easy assembly with the template included
- activated only when the urinal is used (take into consideration the urine or water movement)
- adjustable flush duration from 0,5 to 15,5 sec.
- minimum use time adjustable before the flushing from 6 to 15 sec.
- adjustable settings by SLD04 remote control (no need to disassemble the urinal)
- automatic flush after 6 H without being used
- possibility to adjust the flow by using a stop valve
- water s-trap refill after each flush

Automattery ceramic urinal by battery Automatic ceramic urinal by mains
Battery operated Mains operated

GOLEM automatic urinal installation

OPTIONS:

Sensor
Concealed radar behind the ceramics
Power supply
230/24V external transformer, 230V mains or 6V battery
Consumption
10 W on 24 V ; 1,4 W on 6 V
Material
White ceramics
Water inlet
Threaded M1/2''
Evacuation
Ø 50 mm
Pressure
1-6 bars
Flow rate
12 LPM.
Flush volume
1 L (adjustable 0.5 to 4 LPM.)
Operation settings
Adjustable by SLD04 remote control: detection sensitivity, flow time, interval rinse, temporary off...
Dimensions
Warranty
Electronics 5 years
