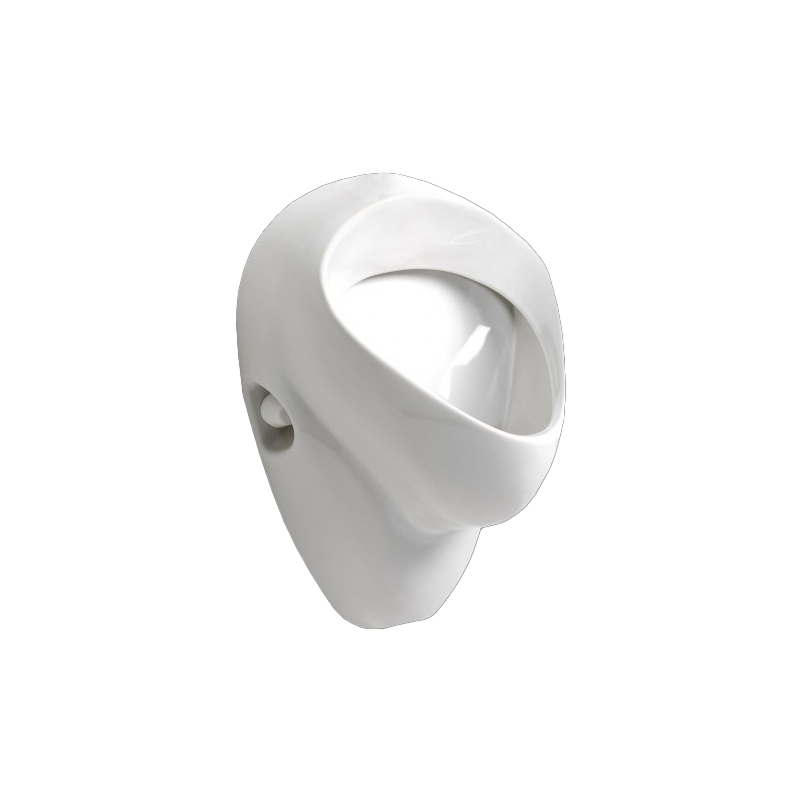

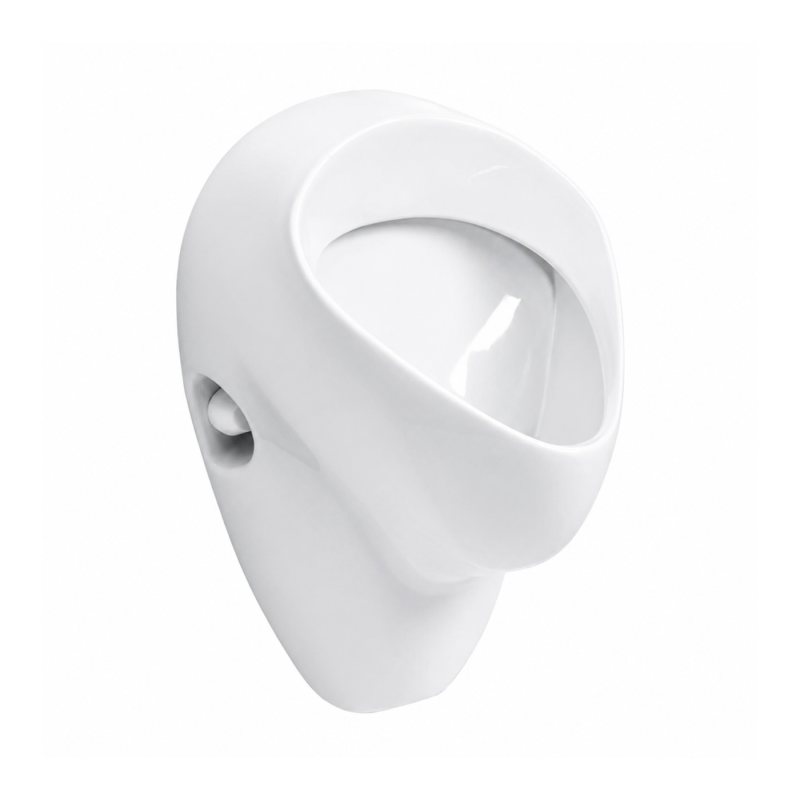

FELIX automatic urinal with concealed sensor
with concealed sensor and economical 1L flush...
INVISIBLE CERAMIC URINAL FELIX WITH CONCEALED SENSOR INTEGRATED
Designed for public sanitary spaces with high attendance.
With its keel design, this 1-liter s-trap system urinal allows you to save water and to eliminate unpleasant smells.
"What is important, you can not see"
- pure aesthetic in the absence of a visible flush faucet
- easy to install with detection and wires behind the urinal
- vandal-proof as it's out of the public reach
- 1L economical flush
- easy assembly with the template included
- activated only when the urinal is used (take into consideration the urine or water movement)
- adjustable flush duration from 0,5 to 15,5 sec.
- minimum use time adjustable before the flushing from 6 to 15 sec.
- adjustable settings by SLD04 remote control (no need to disassemble the urinal)
- automatic flush after 6 H without being used
- possibility to adjust the flow by using a stop valve
- water s-trap refill after each flush
 |
 |
| Battery operated | Mains operated |
- Sensor
- Radar
- Detection details
- Concealed behind the ceramics
- Power supply
- 6V battery
230V mains operated
External 230/24V transformer - Consumption
- 8 W on 24 V ; 3 W on 6 V
- Material
- Ceramic
- Water inlet
- 1/2"
- Evacuation
- Ø 50 mm
- Pressure
- 1-6 bars
- Flow rate
- 12 LPM.
- Flush volume
- 1 L (adjustable 0.5 to 4 LPM.)
- Operation settings
- Adjustable by SLD04 remote control: detection sensitivity, flow time, interval rinse, temporary off...
- Dimensions
- W345 x D350 x H560mm
- Warranty
- Electronics 5 years
- Connection gender
- Male
INVISIBLE CERAMIC URINAL FELIX WITH CONCEALED SENSOR INTEGRATED
Designed for public sanitary spaces with high attendance.
With its keel design, this 1-liter s-trap system urinal allows you to save water and to eliminate unpleasant smells.
"What is important, you can not see"
- pure aesthetic in the absence of a visible flush faucet
- easy to install with detection and wires behind the urinal
- vandal-proof as it's out of the public reach
- 1L economical flush
- easy assembly with the template included
- activated only when the urinal is used (take into consideration the urine or water movement)
- adjustable flush duration from 0,5 to 15,5 sec.
- minimum use time adjustable before the flushing from 6 to 15 sec.
- adjustable settings by SLD04 remote control (no need to disassemble the urinal)
- automatic flush after 6 H without being used
- possibility to adjust the flow by using a stop valve
- water s-trap refill after each flush
|
|
| Battery operated | Mains operated |
- Sensor
- Radar
- Detection details
- Concealed behind the ceramics
- Power supply
- 6V battery
230V mains operated
External 230/24V transformer - Consumption
- 8 W on 24 V ; 3 W on 6 V
- Material
- Ceramic
- Water inlet
- 1/2"
- Evacuation
- Ø 50 mm
- Pressure
- 1-6 bars
- Flow rate
- 12 LPM.
- Flush volume
- 1 L (adjustable 0.5 to 4 LPM.)
- Operation settings
- Adjustable by SLD04 remote control: detection sensitivity, flow time, interval rinse, temporary off...
- Dimensions
- W345 x D350 x H560mm
- Warranty
- Electronics 5 years
- Connection gender
- Male
