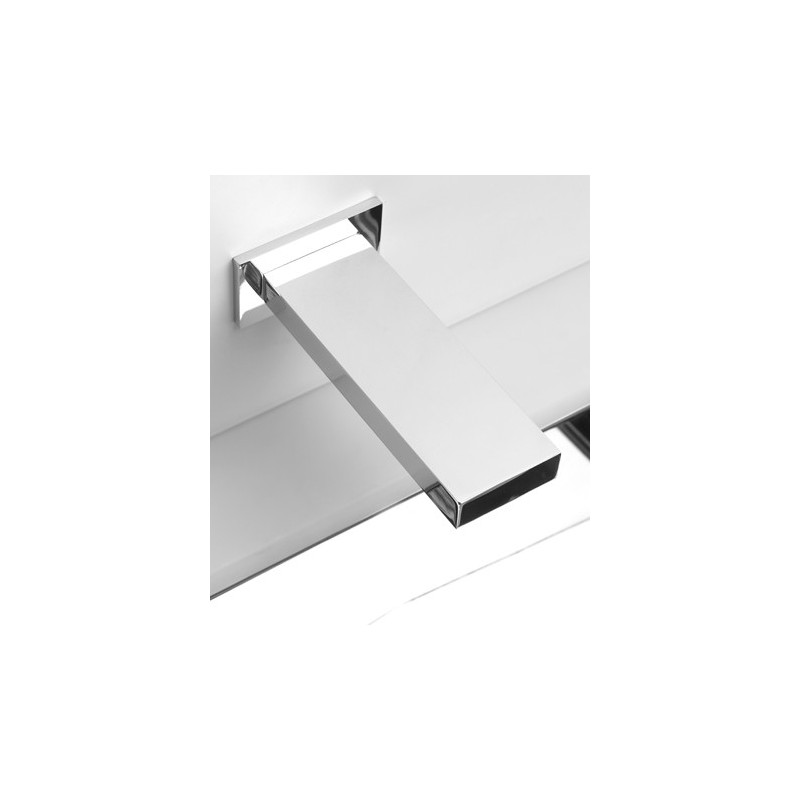

Electronic wall mounted faucet KUBIKA

rectangular design spout...

Réf. : RES-80

€432.00 Tax Excl.

Power supply

Wall installation

Ask a question

Electronic wall mounted rectangular faucet with infrared detection for cold or pre-mixed water KUBIKA

Works by 230/9V transformer or by 9V battery (low energy consumption, battery lasts around 3 years and light indicates low battery)
- Auto adjustable detection or possibility to adjust settings by remote control detection sensitivity, flow time, hygienic flush, temporary stop…).
- Spout of 231 mm
- Body in brass
- Aerator NEOPERL orientable to optimize the jet direction, with limited flow rate 6 LPM (1,9 LPM on request)
- Solenoid valve M 1/2” with filter
- Security stop after 90 seconds without interruption
- Warranty 2 years.

Wall mounted installation and technical duct from 1 to 35 mm or installation embedded with box under the wash basin

Robinet mural à détection infrarouge CUBICA

OPTIONS:

Remote control RES-31
Brushed, matt black, matt gold finish (minimum quantity)
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)

Sensor: Self-adjusting infrared
Spout length: 244 mm
Power supply: 9V battery
230/9V transformer
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: External M1/2'' with filter in wall-mounted version
Solenoid valve box M1/2'' or 3/4'' with stopcock and filter in recessed version
Material: Chrome-plated brass
Water supply: Mixer: hot + cold water (adjustment at the faucet)
Pressure: 0.5 - 8 bars
Max. eligible temperature: 70°C
Flow rate: NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.

RES-80-81_Installation-guide (pdf)

RES-80-83_Technical-sheet (pdf)
