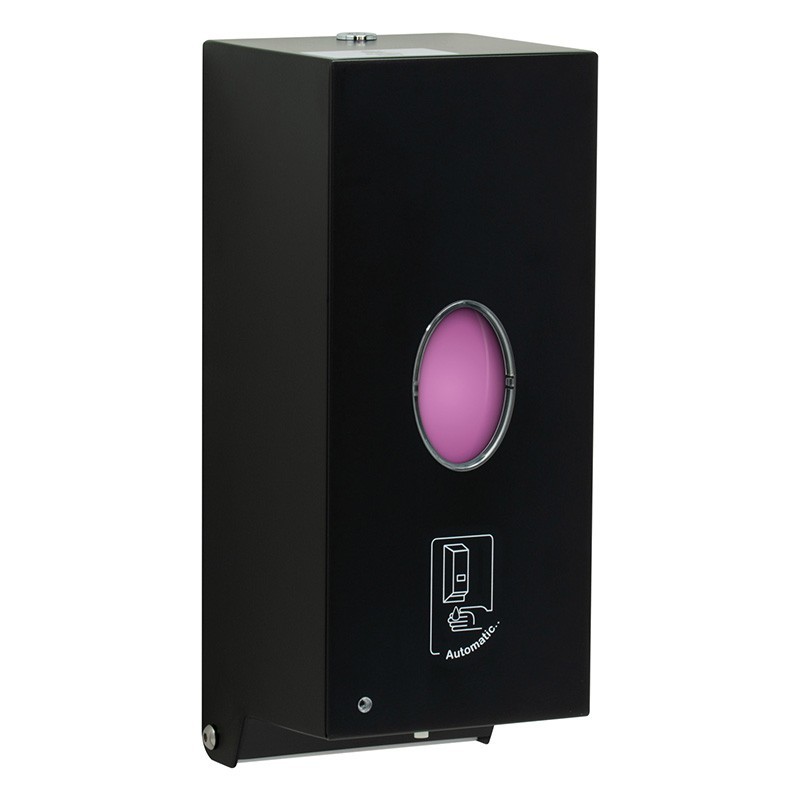

Wall-mounted automatic stainless steel soap dispenser
Touch-free soap dose of 1 to 1.5 ml, and 145,000 uses from one set of batteries.
Available in finish Brushed and Matt black.
Wall-mounted liquid soap dispenser in brushed stainless steel, for heavy use in public facilities
Touch-free soap dose: 1 to 1.5 ml
800 ml capacity, direct refill or liquid soap cartridge
Works with liquid soap, liquid disinfectant, or alcohol-, iodine- or detergent-based gels.
Runs for 145,000 uses on 3 LR14 batteries. Optional mains power supply.

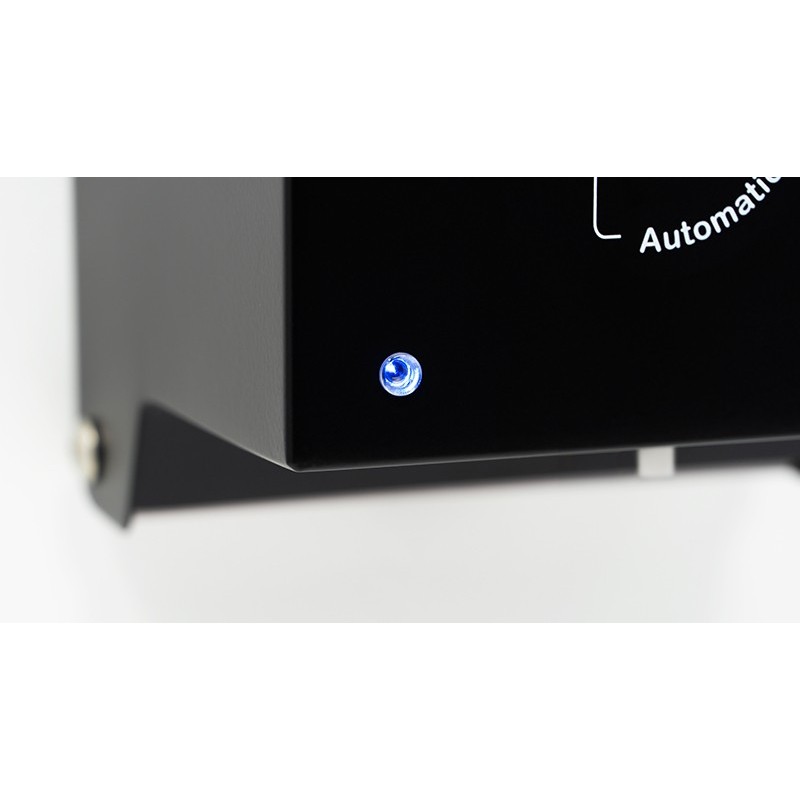

Indicator light: the LED flashes 3 times when the dispenser is on; continuous blue flashing means the batteries are low
Switches on automatically when the cover is closed and off when it is opened
All components are separate for easy maintenance
The dispensing mechanism is 100% separate from the soap assembly, so soap cannot damage the mechanism

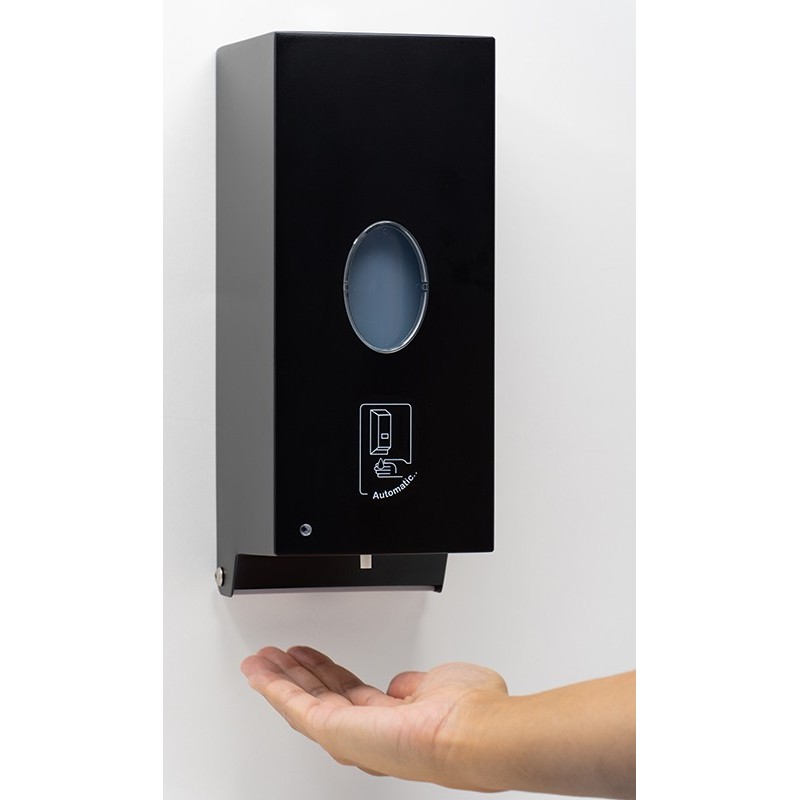

Keep 300 mm clear below the dispenser for the sensor to work properly
Transformer option (Ref. DS-08-T)
- Sensor
- Infrared
- Detection adjustment
- Self-adjusting
- Power supply
- 3 LR14 batteries or transformer option
- Autonomy
- 145 000 cycles or 1 year
- Tank capacity
- Less than 1 L
- Capacity details
- 800 ml to be filled
- Soap type
- Liquid
Hand sanitiser gel - Soap details
- Liquid soap or hand sanitizer (viscosity 2000-5000 cps)
- Dosage
- 1 cc
- Material
- AISI 304 stainless steel
- Fixing
- Wall mounted
- Dimensions
- W 110 x D 115 x H 270 mm
- Warranty
- 2 years
- Marking
- CE
Wall-mounted liquid soap dispenser in brushed stainless steel, for heavy use in public facilities
Touch-free soap dose: 1 to 1.5 ml
800 ml capacity, direct refill or liquid soap cartridge
Works with liquid soap, liquid disinfectant, or alcohol-, iodine- or detergent-based gels.
Runs for 145,000 uses on 3 LR14 batteries. Optional mains power supply.
Indicator light: the LED flashes 3 times when the dispenser is on; continuous blue flashing means the batteries are low
Switches on automatically when the cover is closed and off when it is opened
All components are separate for easy maintenance
The dispensing mechanism is 100% separate from the soap assembly, so soap cannot damage the mechanism
Keep 300 mm clear below the dispenser for the sensor to work properly
Transformer option (Ref. DS-08-T)
- Sensor
- Infrared
- Detection adjustment
- Self-adjusting
- Power supply
- 3 LR14 batteries or transformer option
- Autonomy
- 145 000 cycles or 1 year
- Tank capacity
- Less than 1 L
- Capacity details
- 800 ml to be filled
- Soap type
- Liquid
Hand sanitiser gel - Soap details
- Liquid soap or hand sanitizer (viscosity 2000-5000 cps)
- Dosage
- 1 cc
- Material
- AISI 304 stainless steel
- Fixing
- Wall mounted
- Dimensions
- W 110 x D 115 x H 270 mm
- Warranty
- 2 years
- Marking
- CE
