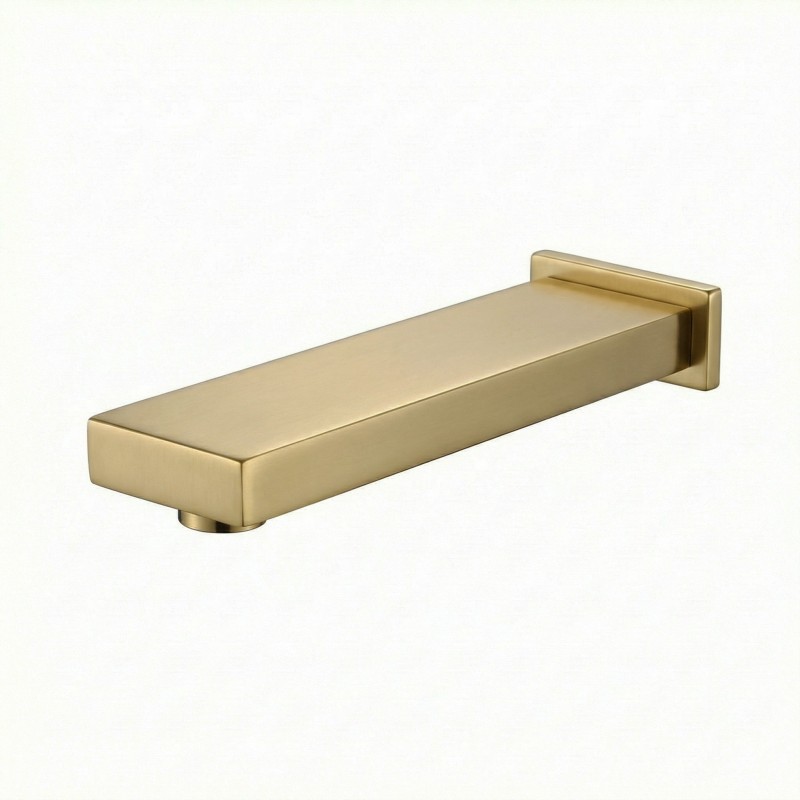

Wall-mounted tap in matt gold PVD, aerator visible under the tip of the straight spout
Dimensions of the automatic tap KUBIKA, through-wall fixing, mains-powered
Previous
Next
Wall-mounted tap in matt gold PVD, aerator visible under the tip of the straight spout
Dimensions of the automatic tap KUBIKA, through-wall fixing, mains-powered

KUBIKA wall-mounted sensor tap

Rectangular designer spout...

Available in finish Chrome, Matt black, Matte Gold PVD, Copper PVD, Brushed Nickel PVD and Gunmetal PVD.

Reference RES-81-AB
Unit price
€599.00 Tax Excl.
Technical sheet & documents
Finish
Power supply
Wall installation
Spout length: 244 mm
Ask a question

Free shipping from €1,000 excl. VAT in mainland France. Delivery terms

KUBIKA rectangular wall-mounted electronic tap with infrared sensor, for cold or pre-mixed water
Runs on a 230/9 V transformer or a 9 V battery (low energy consumption, battery life of about 3 years, low battery indicator)
- Self-adjusting sensor, or operating settings adjustable by remote control
  (run time, flow delay, sensor range)
- 231 mm spout
- Brass body
- Adjustable NEOPERL aerator to direct the jet, with flow rate limited to 6 l/min
  (1.9 l/min on request)
- M 1/2" solenoid valve with filter
- Safety shut-off after 90 seconds of continuous flow
- 2-year warranty.

Through-wall installation with service duct, on a panel 1 to 35 mm thick, or concealed installation with a box under the basin



OPTIONS:

Sensor
Infrared
Detection adjustment
Self-adjusting
Spout length
244 mm
Power supply
9V battery
230/9V transformer
Hygienic rinse anti-legionella
After 24 H of non-use
Safety shut-off
Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve
Solenoid valve box M1/2'' or 3/4'' with stopcock and filter in recessed version
External M1/2'' with filter in wall-mounted version
Material
Brass
Water supply
Mixer
Water supply details
Mixer: hot + cold water (adjustment at the faucet)
Pressure
0.5 - 8 bars
Max. eligible temperature
70°C
Flow rate
NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Operation settings
Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty
3 years
Certification
ACS
Marking
CE

KUBIKA rectangular wall-mounted electronic tap with infrared sensor, for cold or pre-mixed water
Runs on a 230/9 V transformer or a 9 V battery (low energy consumption, battery life of about 3 years, low battery indicator)
- Self-adjusting sensor, or operating settings adjustable by remote control
  (run time, flow delay, sensor range)
- 231 mm spout
- Brass body
- Adjustable NEOPERL aerator to direct the jet, with flow rate limited to 6 l/min
  (1.9 l/min on request)
- M 1/2" solenoid valve with filter
- Safety shut-off after 90 seconds of continuous flow
- 2-year warranty.

Through-wall installation with service duct, on a panel 1 to 35 mm thick, or concealed installation with a box under the basin



OPTIONS:

Sensor
Infrared
Detection adjustment
Self-adjusting
Spout length
244 mm
Power supply
9V battery
230/9V transformer
Hygienic rinse anti-legionella
After 24 H of non-use
Safety shut-off
Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve
Solenoid valve box M1/2'' or 3/4'' with stopcock and filter in recessed version
External M1/2'' with filter in wall-mounted version
Material
Brass
Water supply
Mixer
Water supply details
Mixer: hot + cold water (adjustment at the faucet)
Pressure
0.5 - 8 bars
Max. eligible temperature
70°C
Flow rate
NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Operation settings
Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty
3 years
Certification
ACS
Marking
CE
