Wall mounted electronic mixing tap RONDEO

refined design and comfortable to use

Réf. : RES-35-AB

€384.00 Tax Excl.

Power supply

Finish

Chrome
Matt black
Matte Gold PVD

Wall installation

Spout length

Ask a question

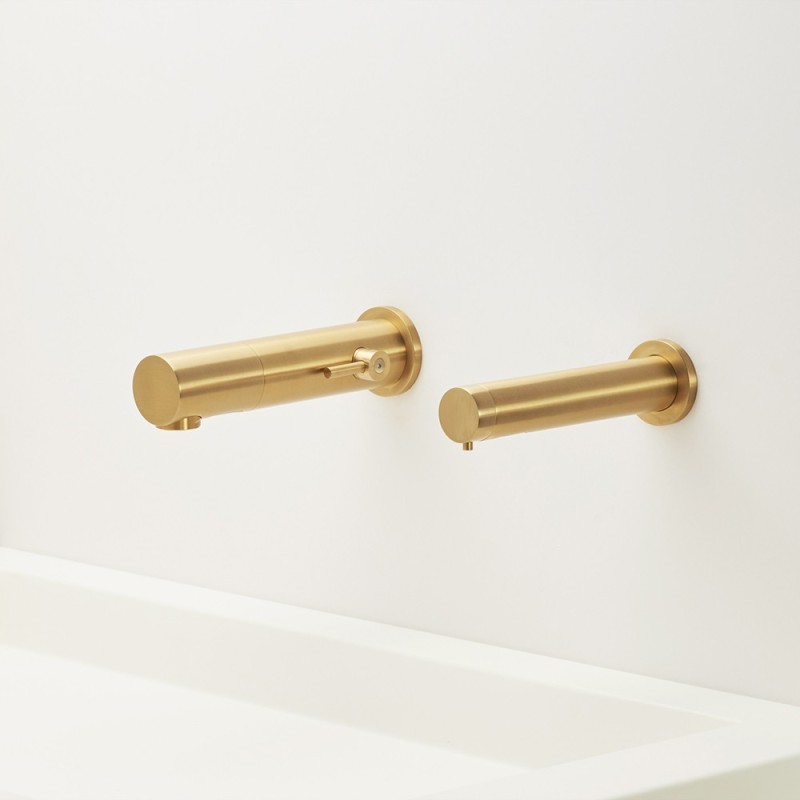

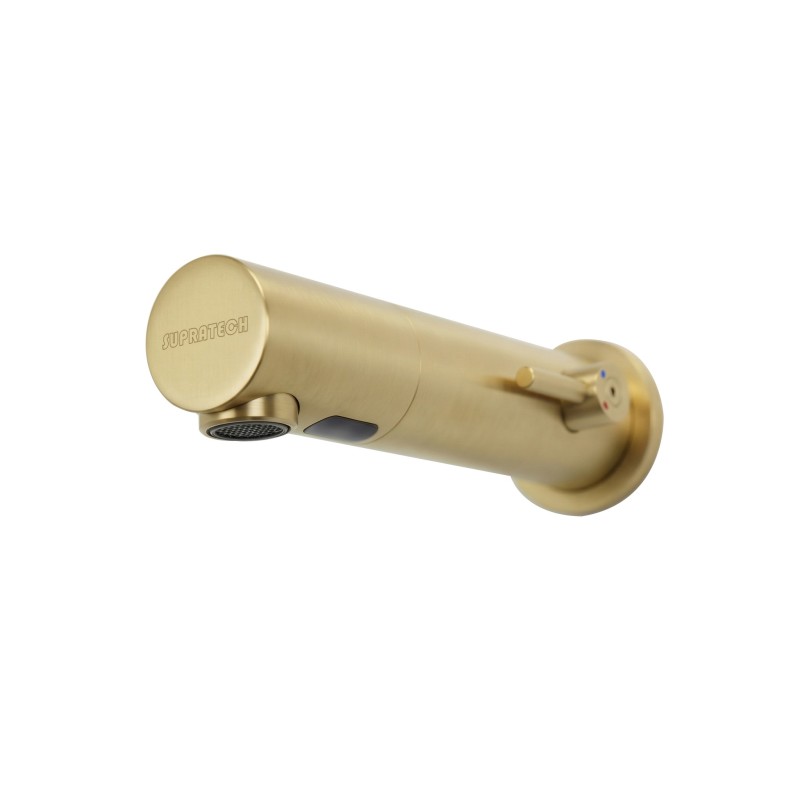

Wall mounted mixing tap faucet RONDEO with infrared detection.
Perfect integration in the sanitary facilities thanks to its minimalist design.

Wall mounted installation and technical room on panel from 1 to 35 mm (wall mounted fixation up to 200 mm as an option)
or recessed installation with solenoid valve box recommended under the wash basin.

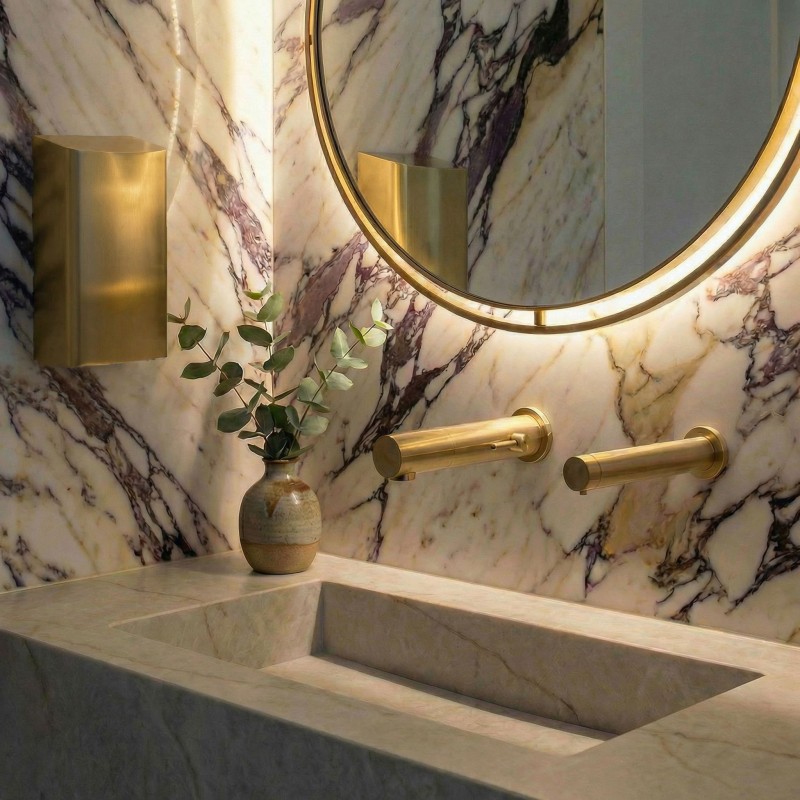

Electronic faucet RONDEO gold matt finish

OPTIONS:

Remote control RES-31
Version L long spout 220 mm.
Brushed finish, matt black, gold matt (minimum quantity)
Periodical rinse anti-legionella
Limited flow 1,3 LPM., 1,9 LPM. ou 3 LPM
Transformer IP68 (ref. RES-292)
Transformer 230/12V IP 68 to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)
Soap dispenser matching design
Wall support frame wash basin integrated faucet

Sensor: Self-adjusting infrared
Spout length: Standard 170 mm (long version 220 mm)
Power supply: 9V battery
230/9V transformer
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: External M1/2'' with filter in wall-mounted version
Solenoid valve box M1/2'' or 3/4'' with stopcock and filter in recessed version
Water supply: Mixer: hot + cold water (adjustment at the faucet)
Pressure: 0.5 - 8 bars
Max. eligible temperature: 70°C
Flow rate: NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.

RES-24-25_Installation-guide (pdf)

RES-34-35_Installation-Guide (pdf)

RES-25_Dim (pdf)

RES-35L_Dim (pdf)

RES-25-2D-ftl-view (dwg)

RES-25-3D (dwg)

RES-25-L-2D-ftl-view (dwg)

RES-24-25-34-35_Technical-sheet (pdf)
