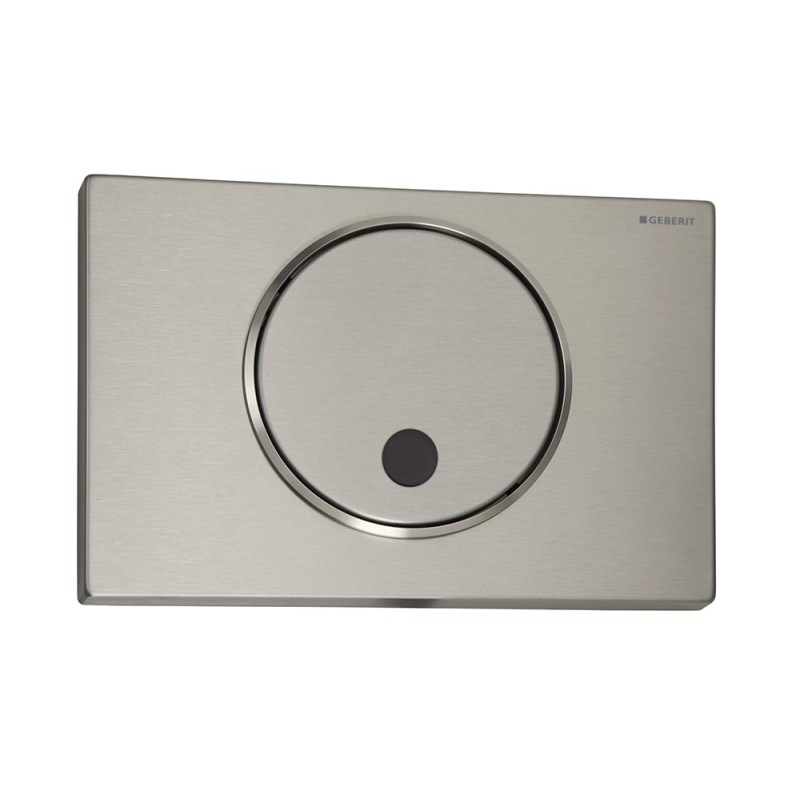

Automatic stainless steel plate for a WC flush GEBERIT
concealed electronic flush valve for GEBERIT support frame...
SLW-I
€625.00 excl. VAT
Tax excluded

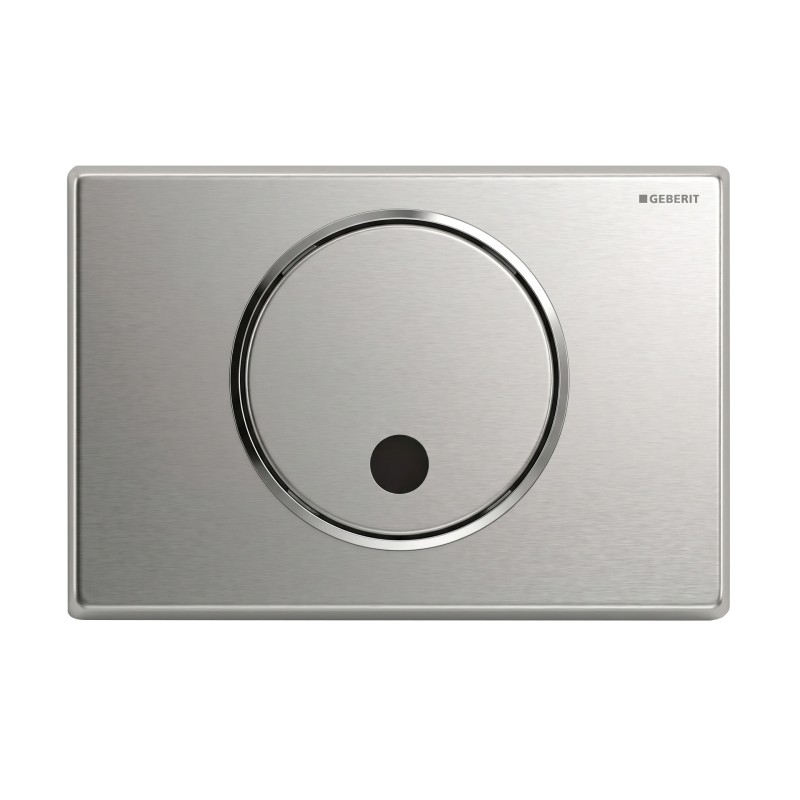

GEBERIT SIGMA 10 stainless steel electronic flush valve integrated
for support frame GEBERIT with UP720 or UP320 tank.
This flush valve reacts to user's presence in the active sensor range from maximum distance of 0,7m, minimal time of stay in this active area is 7,5sec.
Water flows after user has leaved the active range.
DOUBLE FLUSH =
reduced flush (2 s) = min. stay time in active range is 7,5 s, max. stay time is 45 s
full flush (6 s) = min. stay time in active range is 45 s
- Possible to activate flush by manual push button
- Automatic flush after 8 uses or after 24h without use
- Automatic flush mecanism with servomotor to integrate in the GEBERIT tank, vandal resistant
- Settings adjustments by remote control SLD03
- Sensor
- Infrared
- Sensor range
- 600 to 750 mm
- Electrical supply
- 230/24V transformer
- Consumption
- 13 W
- Material
- Stainless steel quality AISI 304 brushed finish
- Present time before flush
- Minimum 7,5 seconds
- Temporization before flush
- 2 seconds
- Flush time
- Short flushing 2 seconds and Long flushing 6 seconds
- Hygienic rinse anti-limescale
- After 24 H without being used (adjustable)
- Operation settings
- Adjustable by remote control SLD03 : Detection sensitivity, flow time, interval rinse, temporary off...
- Warranty
- Electronic 5 years
