Recessed stainless steel waste trap under sink

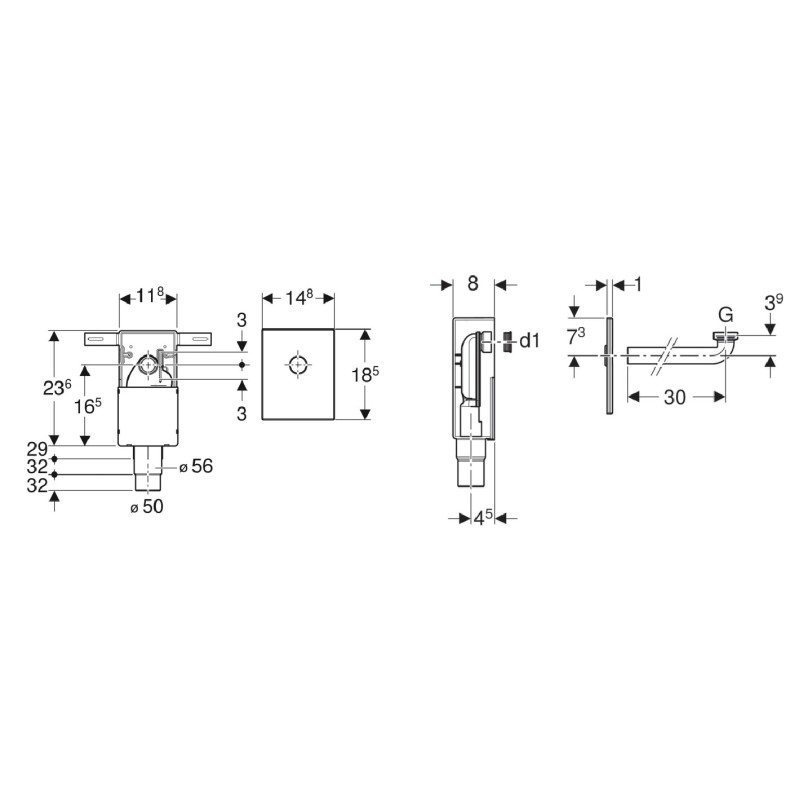

BS-15 S-trap dimensions
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
Recessed stainless steel waste trap under sink
BS-15 S-trap dimensions

Concealed stainless steel waste trap

PRM access

BS-15
€175.00 Tax Excl.

Recessed waste trap with brushed stainless steel cover box for washbasin. PRM adapted.

Use
• For concealed assembly with recessed cover box.
• Suitable for people with reduced mobility.
• Knee clearance for wheelchair users.

Evacuation flow rate for a water seal height of 150 mm is 0.6 liters per second.

Shipped with

• Recessed waste trap
• Closing plate
• ø 32 mm connection elbow
• Seals
• Recessed box
• Fixing material

Material
Brushed stainless steel front panel
Intlet
1 1/4''
Outlet
ø 32 mm
Dimensions
W118 x D80 x H236 mm

Recessed waste trap with brushed stainless steel cover box for washbasin. PRM adapted.

Use
• For concealed assembly with recessed cover box.
• Suitable for people with reduced mobility.
• Knee clearance for wheelchair users.

Evacuation flow rate for a water seal height of 150 mm is 0.6 liters per second.

Shipped with

• Recessed waste trap
• Closing plate
• ø 32 mm connection elbow
• Seals
• Recessed box
• Fixing material

Material
Brushed stainless steel front panel
Intlet
1 1/4''
Outlet
ø 32 mm
Dimensions
W118 x D80 x H236 mm
