WC support frame with automatic flush I-CARO

with infrared detection

DWS-81-KE
€819.00 Tax Excl.

Power supply

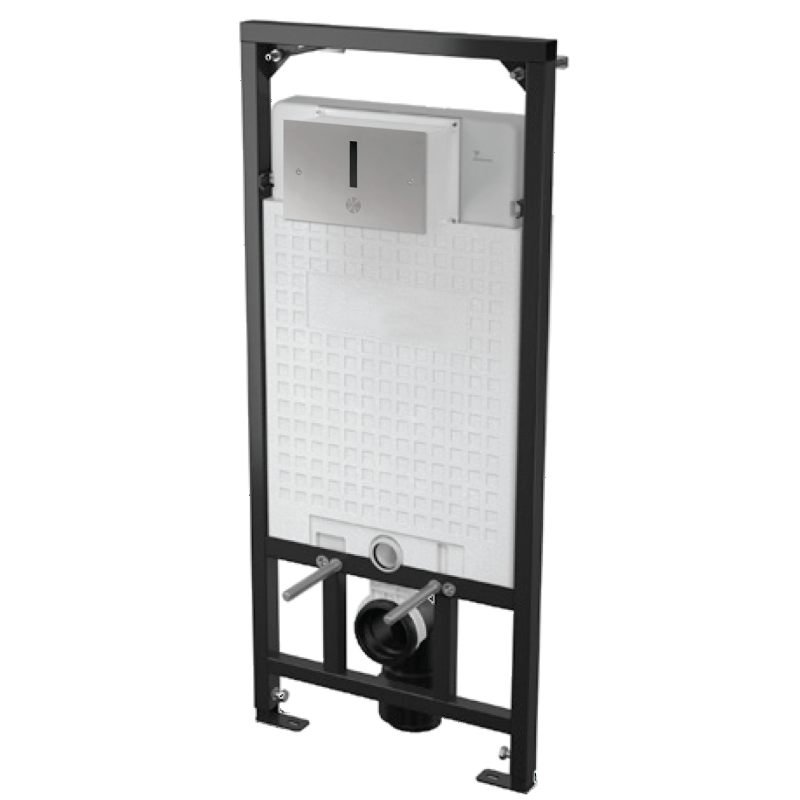

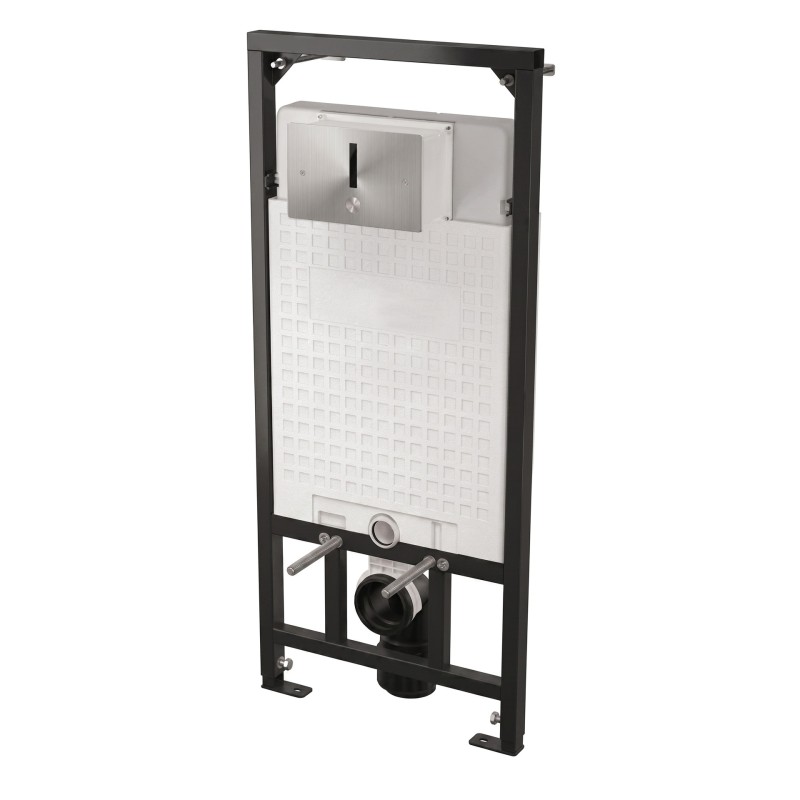

Metal support frame for wall hung WC, with integrated tank for WC flush by sensor presence detection, touch-free.
Automatic flush when the user leaves.
Optional Piezo button, for an easy activation by a simple touch. (inviolable with concealed mechanism, no mobile part).

Double flush: the detection determines if the flush must be reduced depending on the distance and the users presence time = reduced flush 3 L for less than one minute and complete flush, 6 L, for more than one minute
Flush volume adjustable by remote control.

  • Electronic trigger by infrared detection or manual by Piezo button.
  • Vandal proof plate in stainless steel type AISI-316 thickness 2 mm H160 x 240 mm
  • Support frame adjustable in height.
  • Support frame in galvanized steel back including all accessories and fixations, for a thin or thick wall.
  • Frame profile C in 40/40 mm.
  • Support height adjustable 1140 to 1340 mm.
  • Galvanized feet adjustable height 0-200 mm, rotary.
  • Pan fixation by 2 rods M12.
  • Resistant to 400 kg of static loads.

bati-support-wc-reservoir-automatique-antivandalisme-I-caro
Automatic flush after each use:
- Eliminates odours for every flush not triggered
- No cross contamination

- Adapted to People with Reduced Mobility
- Valorises the quality of sanitary installations
- Manual button

OPTIONS:

Sensor
Infrared or piezo button sensor
Power supply
Embedded 9V Lithium battery
IP68 230/12V transformer
Hygienic rinse anti-legionella
After 24 H of non-use
Water inlet
Threaded M1/2''
Water outlet
Ø 55 mm flush pipe with junction nose
Evacuation
Angled pipe Ø 100 mm
Flush volume
Double flush 3-6 L (adjustable)
Operation settings
Adjustable by RES-31 remote control: detection sensitivity, activation delay, delay after user leaves, flush scale, temporary off, interval rinse 24 H.

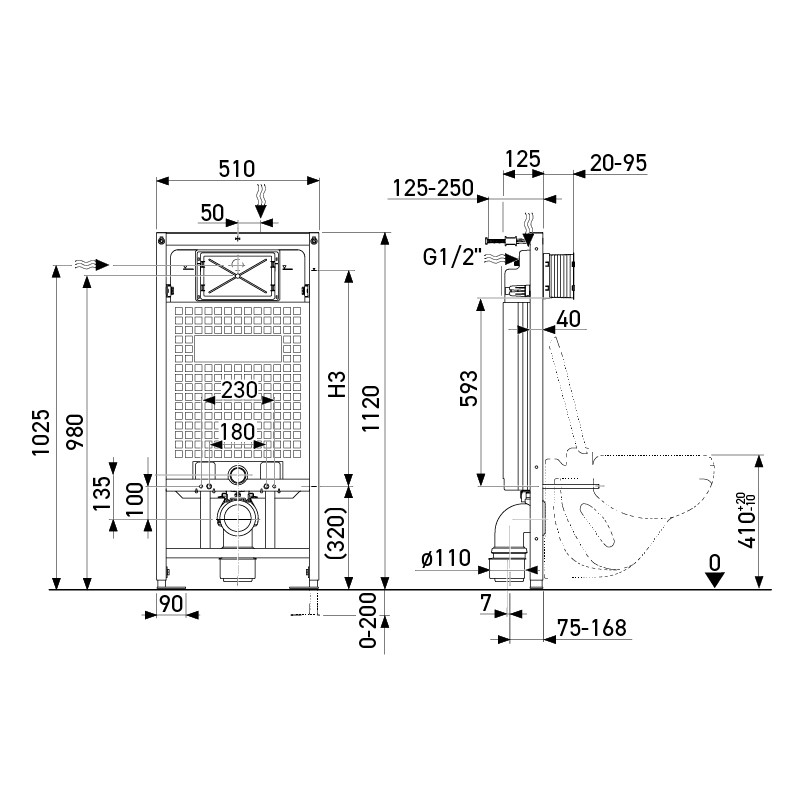

Dimensions
Warranty
3 years. CE.
