Photo Electronic, design and stainless steel wall mounted faucet EXTREME WS RES-901-S1

Electronic wall mounted stainless steel tap EXTREME WS

concealed detection, high range finish

Ref. : RES-901-S1

€362.00 excl. VAT

Tax excluded

Choose a model

Quantity

Stainless steel wall mounted electronic tap for wash basins with an infrared detection embedded in the end of the spout, for a neater and refined aesthetic.

Other advantage, a quicker and more efficient detection.
The faucet is made for an easy installation and maintenance.
The faucet electronics preserves water, saves on energy and optimizes sanitary hygiene.

High range brushed stainless steel finish AISI 316 quality, offering higher hygiene durability.

Long lasting over time (scratch resistant, UV, finger marks…),
ensuring that your sanitary facilities have irreproachable quality.
The brushes striae brings a matt and contemporary design.

The 316 stainless steel is particularly appreciated for its bacteriostatic quality in the medical field
and anti-corrosion in a marine environment. Ecological and entirely recyclable stainless steel.

robinet-inox-mural-automatique-EXTREME-WS-eau-savon

- Infrared auto-adjustable detection. Adjustable settings by remote control (detection sensitivity, flow time, hygienic flush, temporary stop…).
- Powered by 9V battery or 230/9V transformer.
- Mains operated, possibility to use a backup battery for a normal function is case of a power cut.
- Low energy consumption, battery lasts around 3 years.
- Indicator light when battery is low and needs replacing.

OPTIONS:

Remote control RES-31
Brushed, matt black, matt gold finish (minimum quantity)
Anti-legionella hygienic flush
Limited flow rate 1,9 LPM
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)
Soap dispenser matching design
Integrated on wash basin support frame

Sensor: Spout tip with self-adjusting infrared sensor

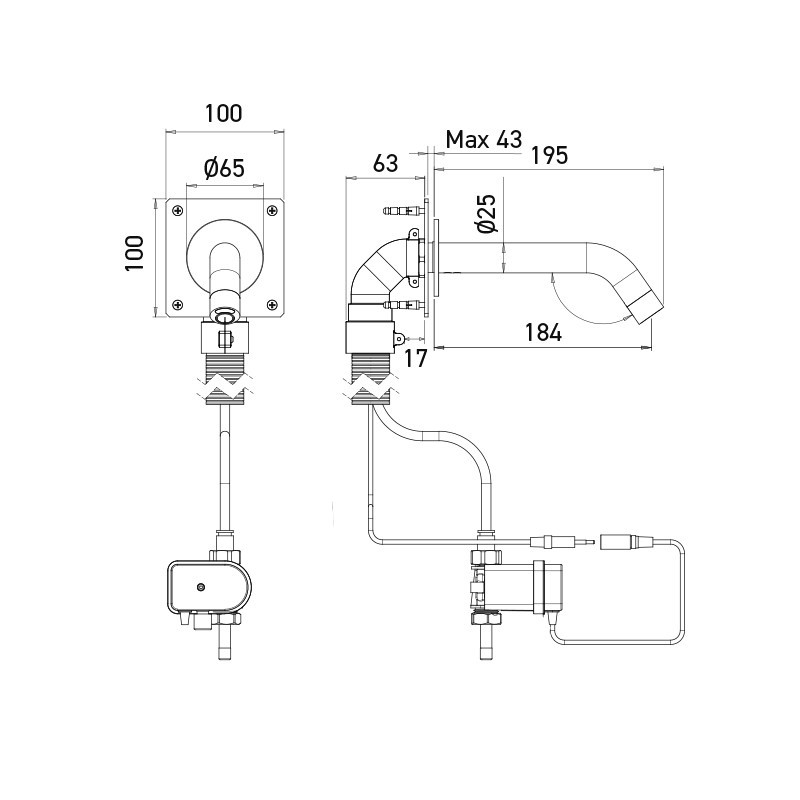

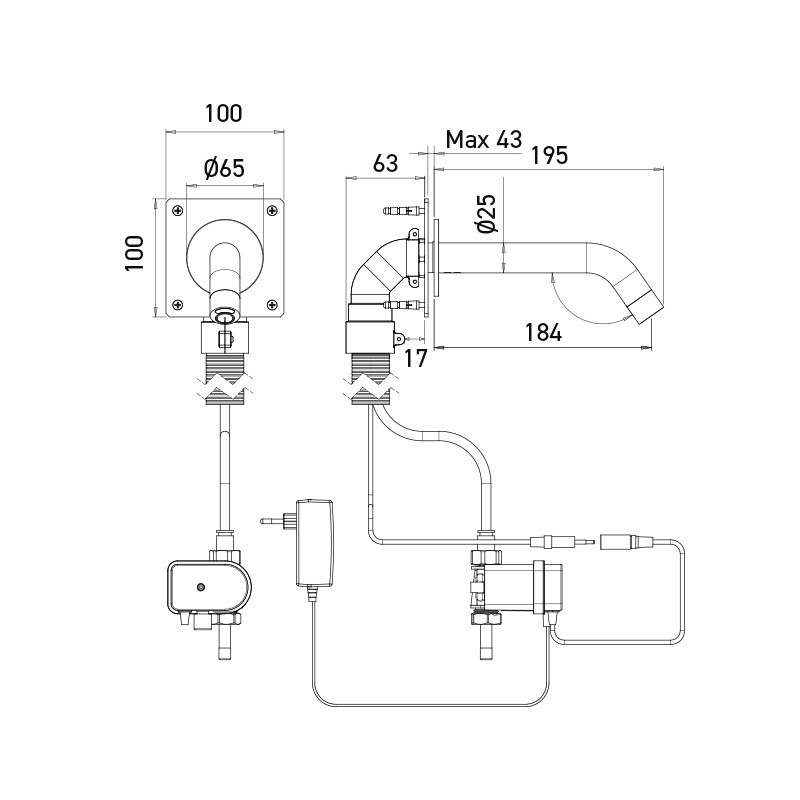

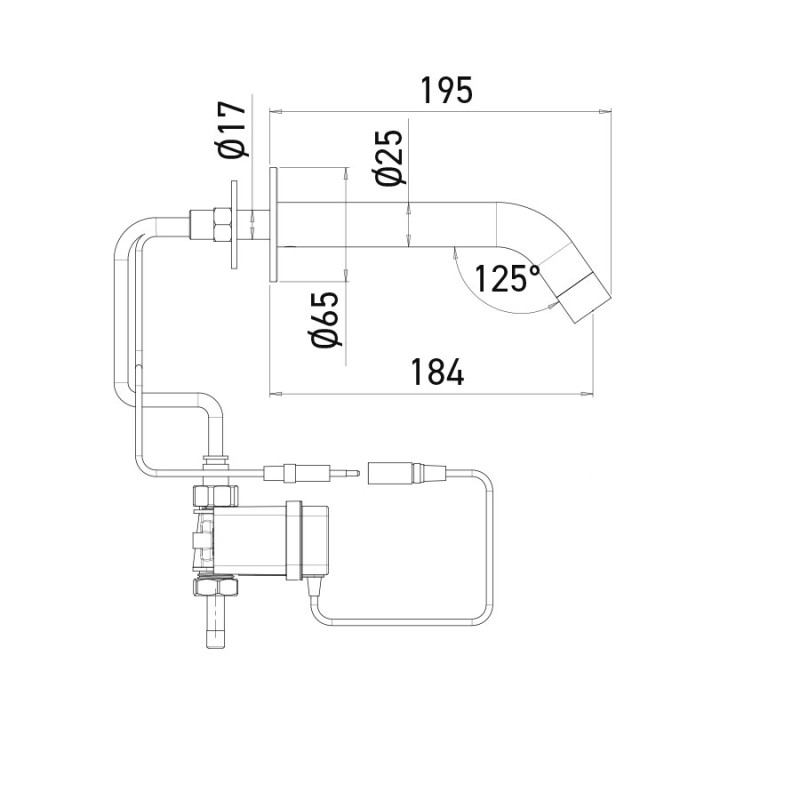

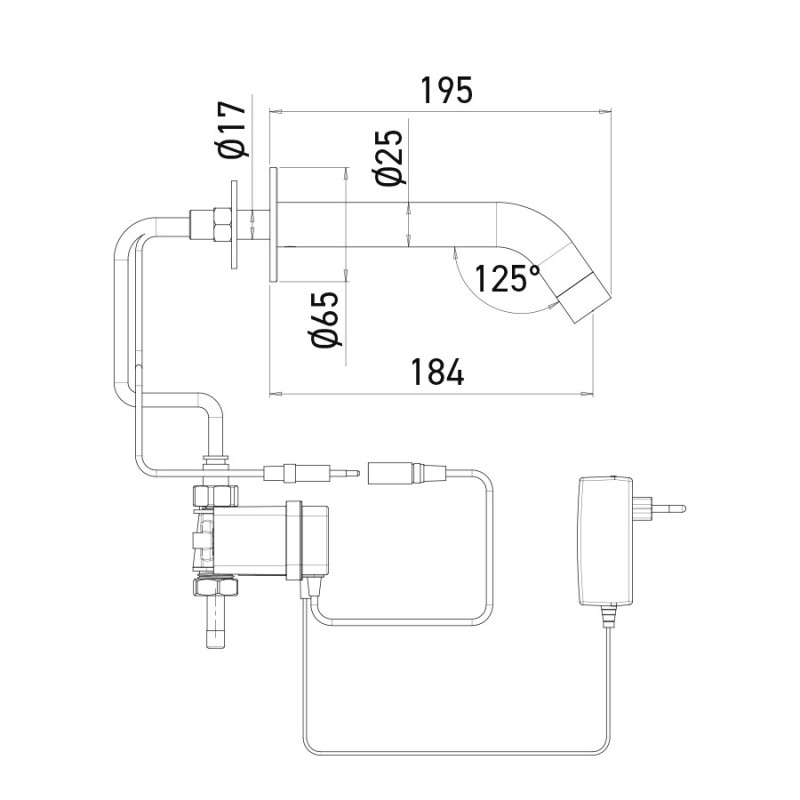

Spout length: 195 mm
Electrical supply: 230/9V transformer or 9V alkaline battery
Security off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: External M1/2'' with filter. Includes a space for a backup battery for mains operated, in the case of a power cut.
Material: AISI 316 brushed stainless steel finish
Water supply: For cold or pre-mixed water
Pressure: 0.3 - 8 bars
Max. temperature eligible: 70°C
Flow rate: 4 LPM (1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.
