High-rise automatic ELITE stainless steel soap dispenser

extra tall automatic stainless steel soap dispenser for countertop basins, robust and sleek design

Réf. : RES-72-R-S1

€385.00 Tax Excl.

Power supply

Ask a question

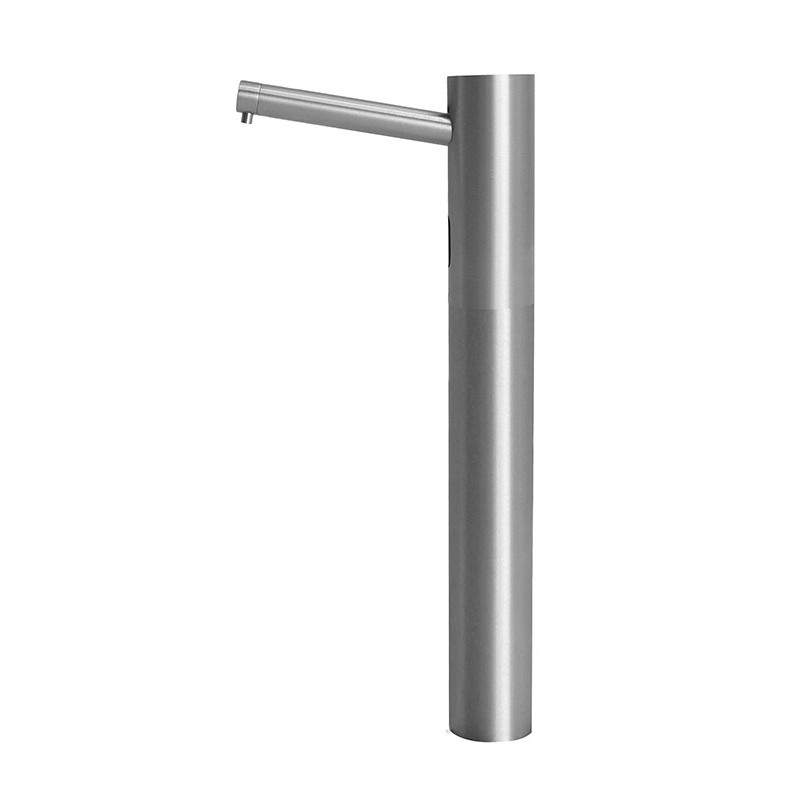

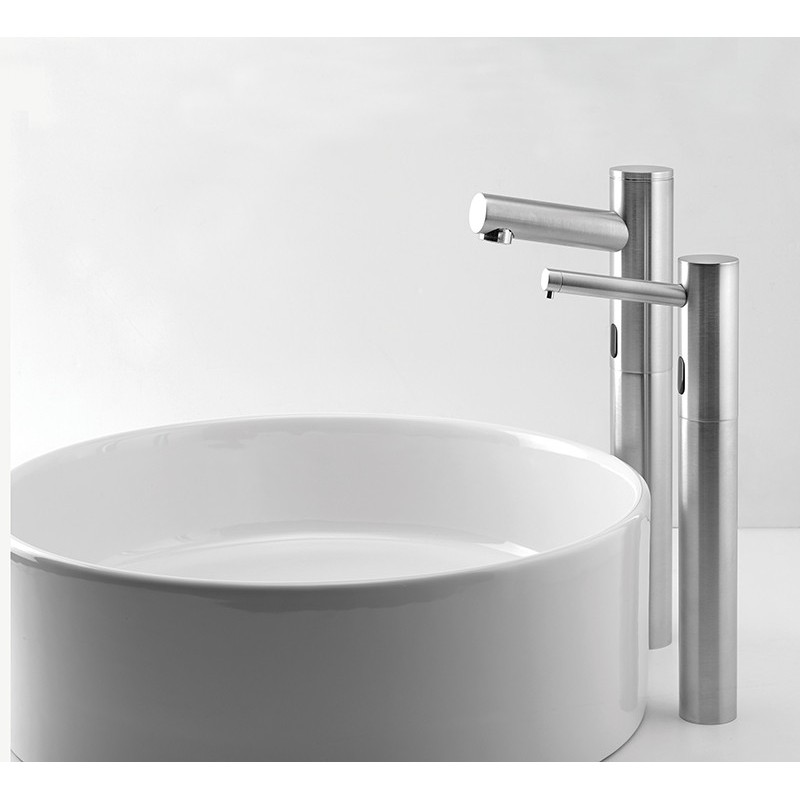

High-rise automatic AISI 316 stainless steel ELITE soap dispenser with infrared detection, for vanity bowls and/or countertop washbasins

Touch-free, protects against the risk of cross contamination.
Recommended for installations where ease of maintenance and robustness are prioritized (resistant to scratches, UV, fingerprints...).
Minimalist, modern, and elegant design.
Drastic decrease in soap consumption: precise and regular soap dosage, automatic drip-proof dosing system.
Peristaltic pump: the soap is circulated through a separate tube, which avoids contact with the pump and prevents contamination and backflow.
Easy to maintain and refill.
Perfect combination when paired with the stainless steel electronic ELITE faucet.

Advantages

• Infrared self-adjusting detection to create a germ-free and automated environment
• Precise soap dosing
• RES-38 remote control (optional)
• AISI 316 brushed stainless steel body with a 1L refillable plastic bottle
• Operates via peristaltic pump for liquid soap, detergent, lotion, and even antibacterial gel (viscosity 100 - 3000 cPs)
• Easy to use priming button
• Cost-effective solution

OPTIONS:

RES-38 remote control
93, 100 or 230 mm height raise.
6L soap tank to supply from 1 to 6 dispensers (ref. RES-790)
5L non-proprietary soap tank adapter cap kit to supply from 1 to 3 dispensers (ref. RES-797)
230/12V IP 68 transformer to supply from 1 to 4 dispensers (ref. RES-294)
230/12V junction box to supply from 1 to 10 dispensers (ref. RES-296)
Matching electronic faucet

Sensor: Self-adjusting infrared
Power supply: 230/12V transformer
Battery (6xLR20 not supplied)
Capacity: 1 L tank (6 L option)
Soap: Liquid soap (viscosity 100 -3800 cPs)
Dosage: 0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
Pump: Peristaltic pump
Hygienic rinse anti-legionella: After 24 H of non-use
Material: AISI 316 brushed stainless steel finish
Operation settings: Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
Warranty: 2 years

RES-72-R-2D-flt-view (dwg)

RES-72-R-3D (dwg)

RES-72-R (ifc)

RES-72-R (obj)

RES-72-R-S1_Technical-sheet (pdf)
