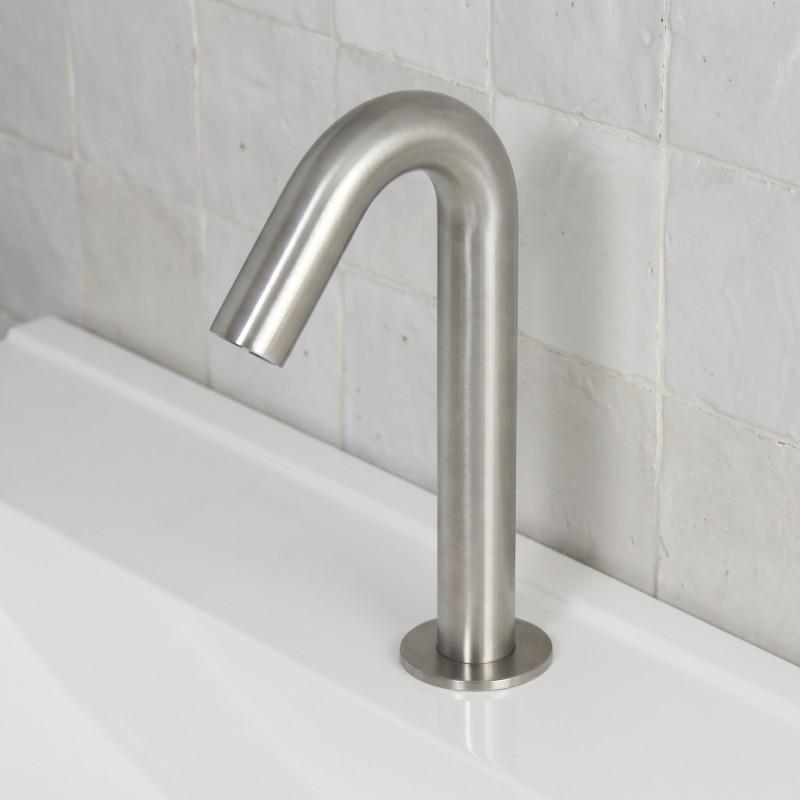

Sleek minimalist touchless design faucet ONE MINI contactless

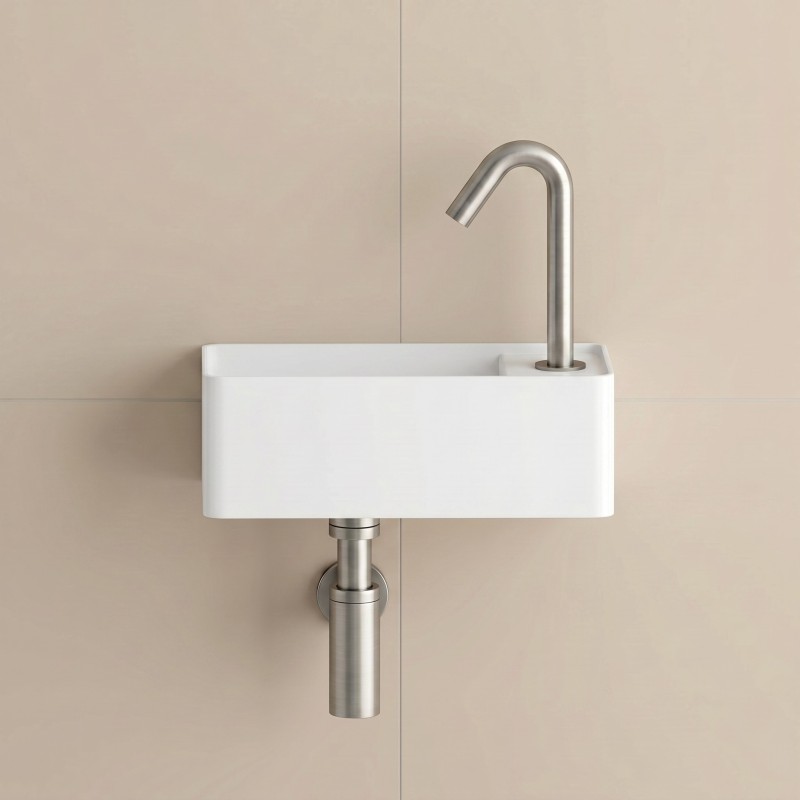

Automatic stainless steel ONE MINI faucet for compact hand wash basins

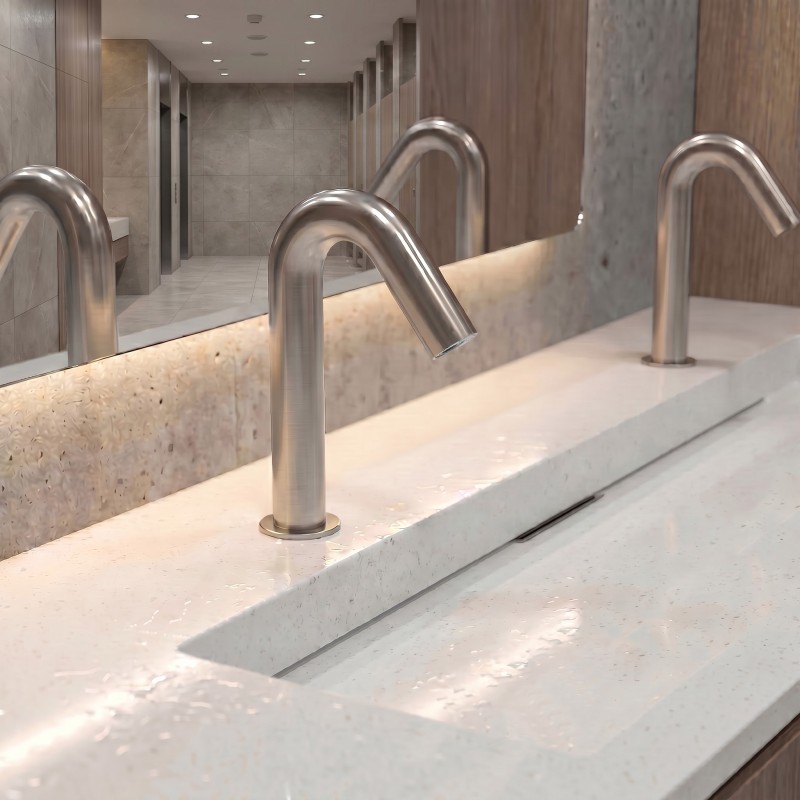

Compact tubular design brushed stainless steel ONE MINI tap for shared facilities

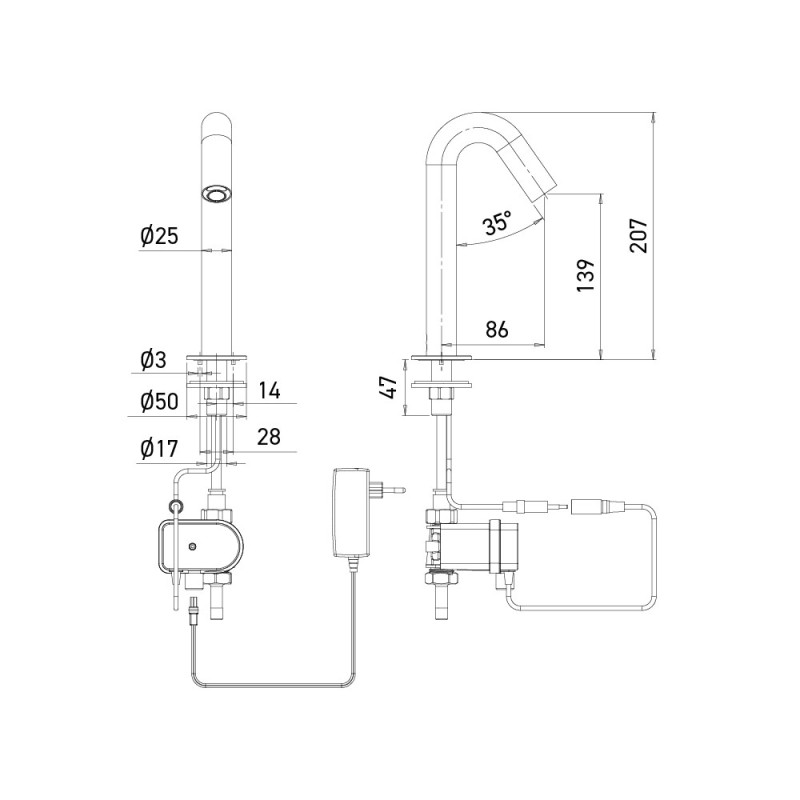

Dimensions of the stainless steel ONE MINI electronic tap on mains power

Electronic tap stainless steel ONE MINI brushed finish

pure line with concealed detection at the end of the spout

Reference RES-51M-S1
Unit price
€393.50 Tax Excl.
→ See other finishes
Finish
Power supply
Ask a question

Automatic tap ONE MINI in stainless steel AISI 316 brushed finish with infrared detection in the end of the spout, for a neat and refined aesthtic.
Other advantage, an efficient detection when the hands approach the sensor.

- For cold and pre-mixed water.
- Powered by 9V battery or 230/9V transformer.
- Low energy consumption, batteries last around 2 years or 250 000 cycles. Indicator light when batteries need changing.
- On the transformer version, solenoid valve double electric supply with a space for backup battery in case of a power cut.
- Security off after 90 seconds without interruption.
- Adjustable settings by remote control RES-31 (detection sensitivity, drainage time, periodical rinse, temporary off...).

OPTIONS:

  • Remote control RES-31
  • Available finishes: chrome, matte black, matte gold PVD, copper PVD, brushed nickel PVD, and gunmetal PVD (please contact us).
  • Limited flow rate 1,9 LPM.
  • Transformer 230/12V IP 68 to supply from 1 to 4 taps (ref. RES-294)
  • Junction box 230/12V to supply up to 10 taps (ref. RES-295)
  • Soap dispenser matching design
Sensor
Spout tip with self-adjusting infrared sensor
Power supply
9V battery
230/9V transformer
Hygienic rinse anti-legionella
After 24 H of non-use
Safety shut-off
Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve
External M1/2'' with filter
Material
AISI 316 Stainless steel
Finish
Brushed
Water supply
Single supply: cold water or pre-mixed water (mixed upstream)
Pressure
0.3 - 8 bars
Max. eligible temperature
70°C
Flow rate
4 LPM (1.9 LPM upon request)
Operation settings
Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty
3 years. CE. ACS.

Automatic tap ONE MINI in stainless steel AISI 316 brushed finish with infrared detection in the end of the spout, for a neat and refined aesthtic.
Other advantage, an efficient detection when the hands approach the sensor.

- For cold and pre-mixed water.
- Powered by 9V battery or 230/9V transformer.
- Low energy consumption, batteries last around 2 years or 250 000 cycles. Indicator light when batteries need changing.
- On the transformer version, solenoid valve double electric supply with a space for backup battery in case of a power cut.
- Security off after 90 seconds without interruption.
- Adjustable settings by remote control RES-31 (detection sensitivity, drainage time, periodical rinse, temporary off...).

OPTIONS:

  • Remote control RES-31
  • Available finishes: chrome, matte black, matte gold PVD, copper PVD, brushed nickel PVD, and gunmetal PVD (please contact us).
  • Limited flow rate 1,9 LPM.
  • Transformer 230/12V IP 68 to supply from 1 to 4 taps (ref. RES-294)
  • Junction box 230/12V to supply up to 10 taps (ref. RES-295)
  • Soap dispenser matching design

Sensor
Spout tip with self-adjusting infrared sensor
Power supply
9V battery
230/9V transformer
Hygienic rinse anti-legionella
After 24 H of non-use
Safety shut-off
Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve
External M1/2'' with filter
Material
AISI 316 Stainless steel
Finish
Brushed
Water supply
Single supply: cold water or pre-mixed water (mixed upstream)
Pressure
0.3 - 8 bars
Max. eligible temperature
70°C
Flow rate
4 LPM (1.9 LPM upon request)
Operation settings
Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty
3 years. CE. ACS.
