Electronic tap ONE MINI

tubular spout...

Ref. : RES-52M

€268.00 excl. VAT

Tax excluded

Choose a model

Finish

Quantity

Ask a question

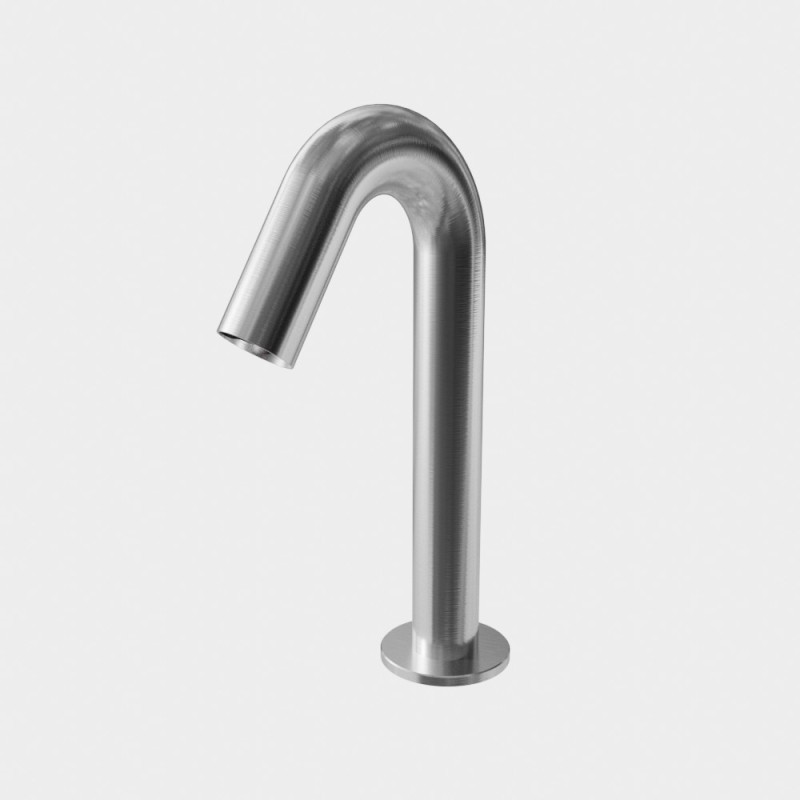

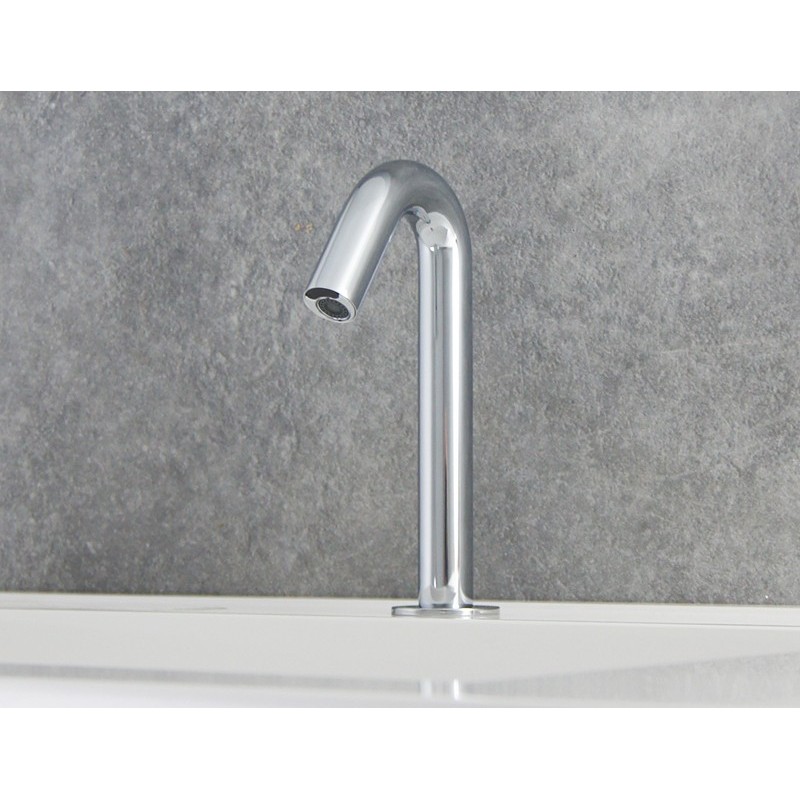

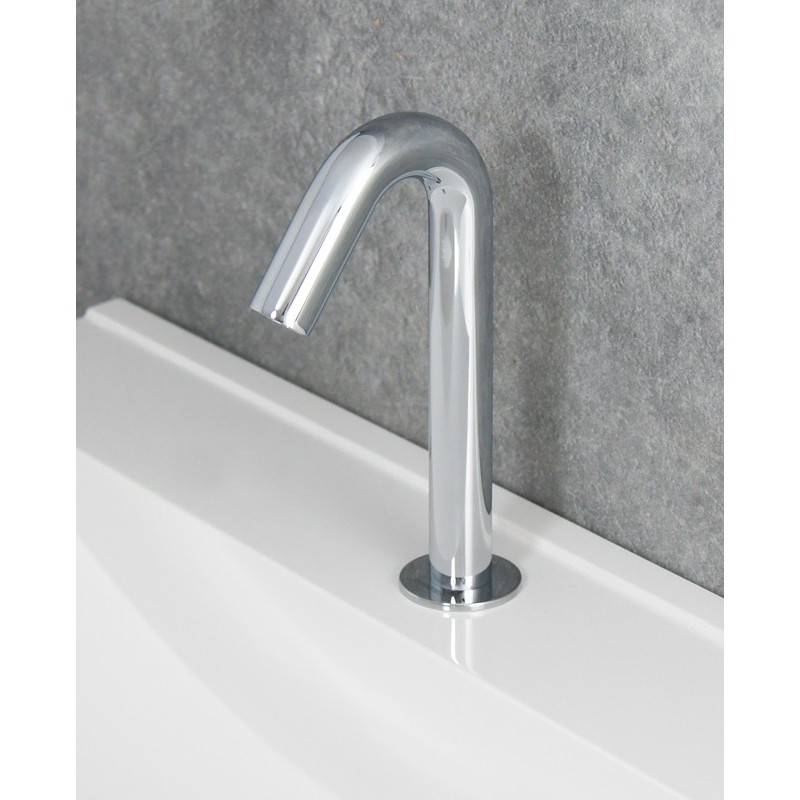

ONE MINI automatic tap with infrared detection concealed in the end of the spout, for an elegant bathroom and comfortable to use.

- For cold or premixed water.
- Powered by 9V battery or 230/9V transformer.
- Low energy consumption, batteries last around 2 years or 250 000 cycles. Indicator light when batteries need changing.
- On the transformer version, double electric supply solenoid valve with a space for a backup battery in case of an electrical power cut.
- Temporary off after 90 seconds of water running non-stop.
- Adjustable settings by remote control RES-31 (detection sensitivity, drainage time, periodical rinse, temporary off…).

Dimensions robinet ONE MINI sans contact

OPTIONS:

Remote control RES-31

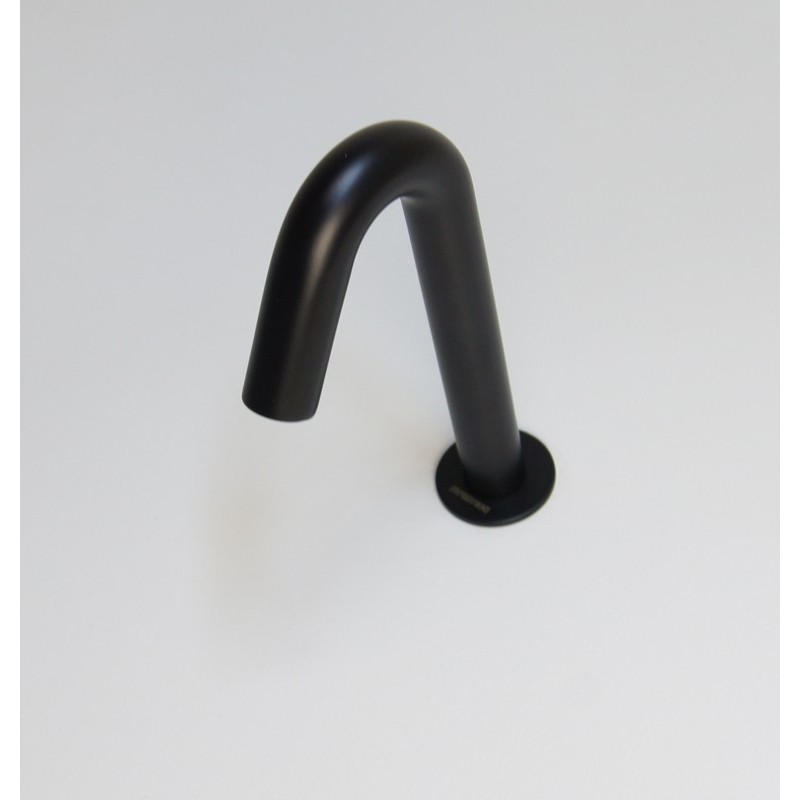

Brushed, matt black, matt gold finish (minimum quantity).
Anti-legionella hygienic flush.
Limited flow rate 1,9 LPM.
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)

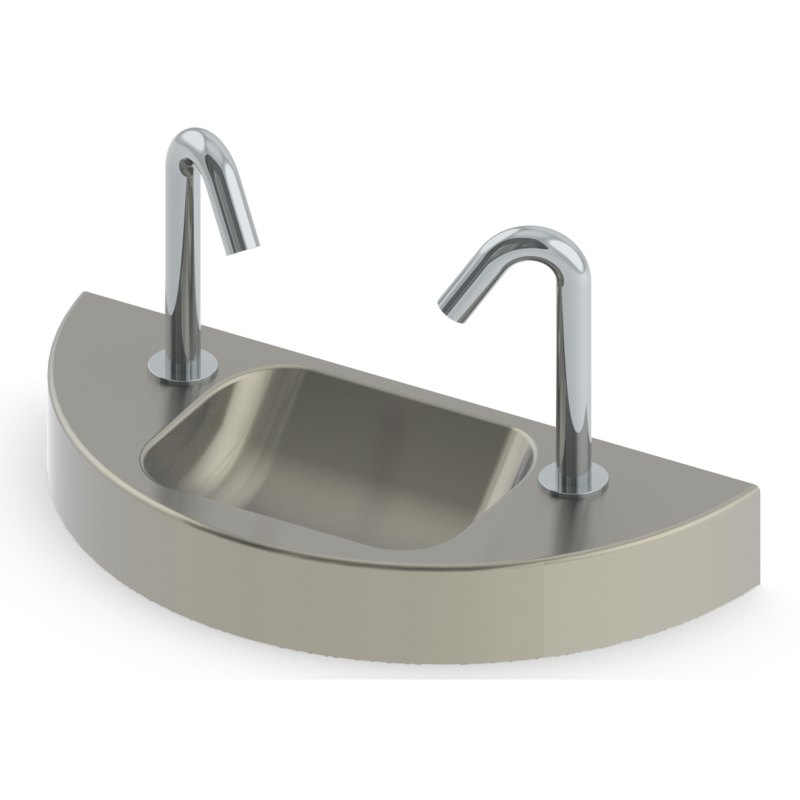

Soap dispenser matching design

Sensor: Spout tip with self-adjusting infrared sensor
Electrical supply: 230/9V transformer or 9V alkaline battery
Security off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: External M1/2'' with filter
Material: Chrome brass
Water supply: For cold or pre-mixed water
Pressure: 0.3 - 8 bars
Max. temperature eligible: 70°C
Flow rate: 4 LPM (1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.
