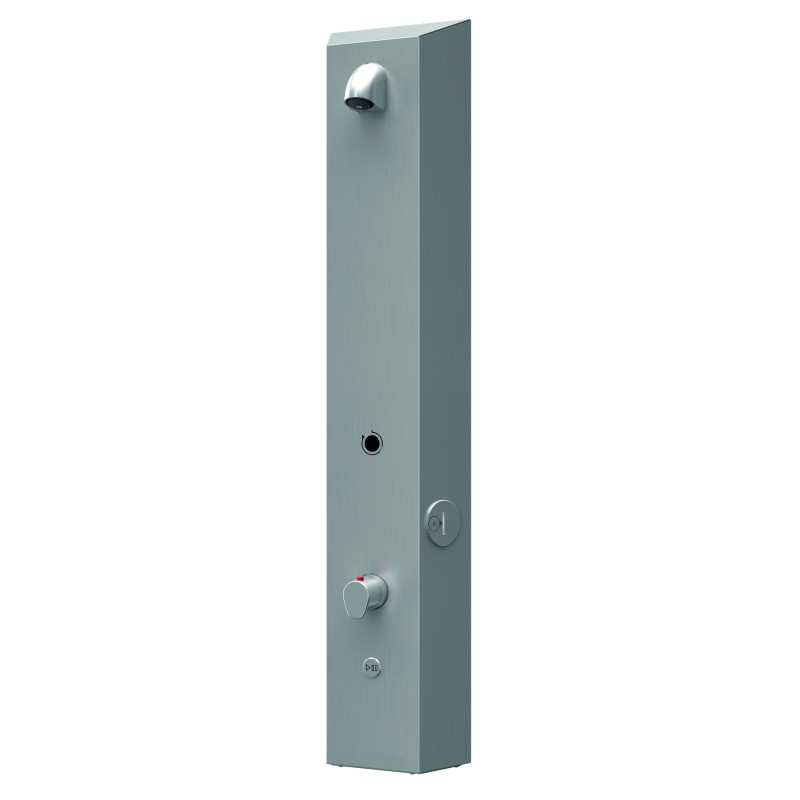

Thermostatic shower panel with integrated token timer
anti-scalding security
Wall mounted stainless steel shower panel with token timer, for cold or pre-mixed water, with thermostatic setting button for the temperature, 24 V
• after inserting an SA-52 token in the panel, the shower is activated immediately after pressing the mechanical button.
• the water flows by pressing the button, with initially 10 red diodes on the LED indicator, then the diodes counting down the shower time.
• the user can start and stop the water directly in the shower.
• 30 s before the end of the water supply, the user is warned by a brief interruption of the water flow.
• integrated receptacle for tokens, lock for emptying from the bottom.
Optional: RFID token rechargeable credit
- Power supply
- 230/24V transformer
- Hygienic rinse anti-legionella
- After 24 H of non-use (adjustable)
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1 mm
- Finish
- Brushed
- Water supply
- Mixer
- Water inlet
- 1/2"
- Pressure
- 1-6 bars
- Flow rate
- 12 LPM.
- Power consumption
- 7 W
- Duration
- To be specified when ordering
- Operation settings
- Adjustable by SLD04 remote control: interval rinse, temporary off, interval rinse time

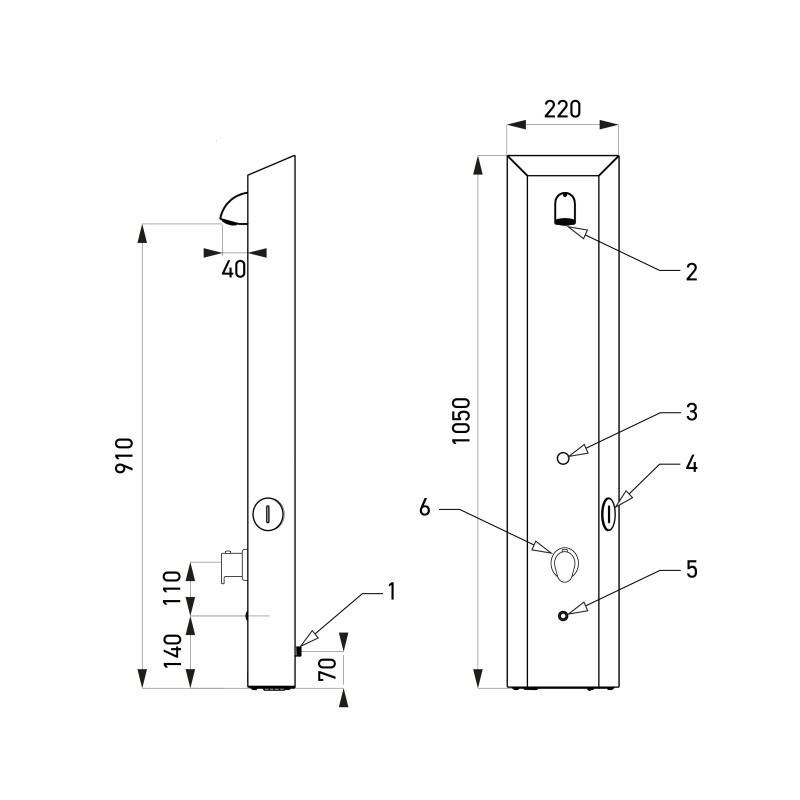

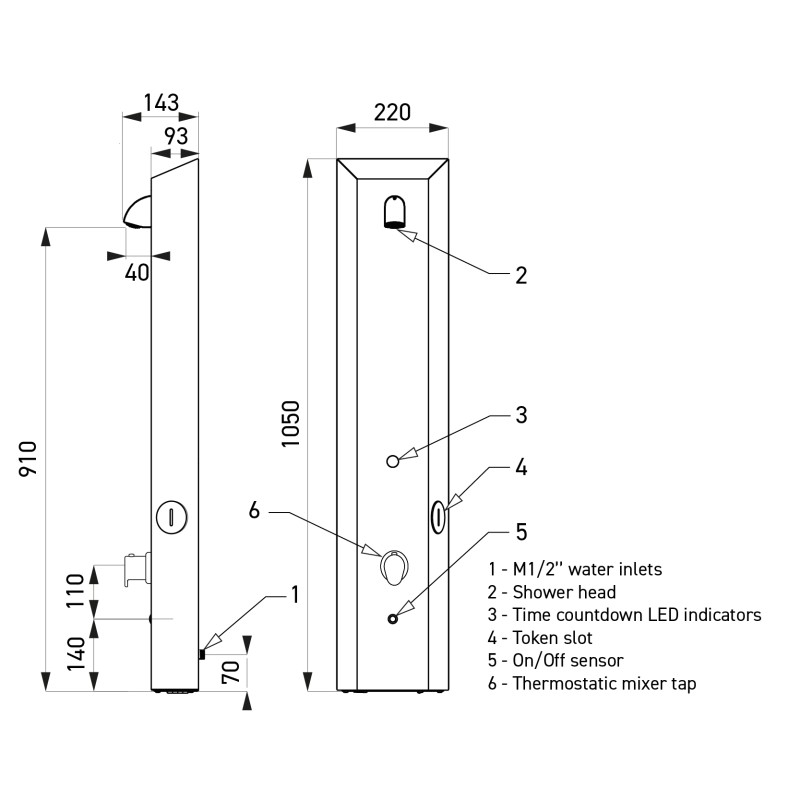

- Dimensions
- W220 x D93 (143 with shower head) x H1050 mm
- Warranty
- Electronics 5 years
- Connection gender
- Male
- Water supply details
- Mixer: hot + cold water (adjustment at the faucet)
