Photo Vertical spout with infrared detection to integrate behind mirror RES-88
  • Miniature-0 Vertical spout with infrared detection to integrate behind mirror RES-88

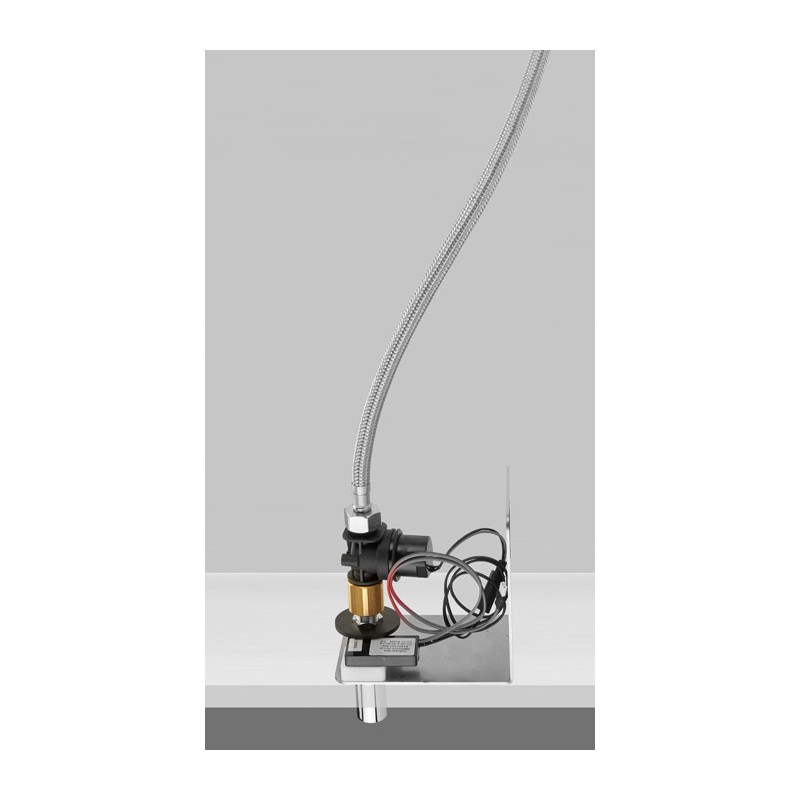

  • Miniature-1 Electronic faucet behind mirror vertical spout by battery or transformer RES-88

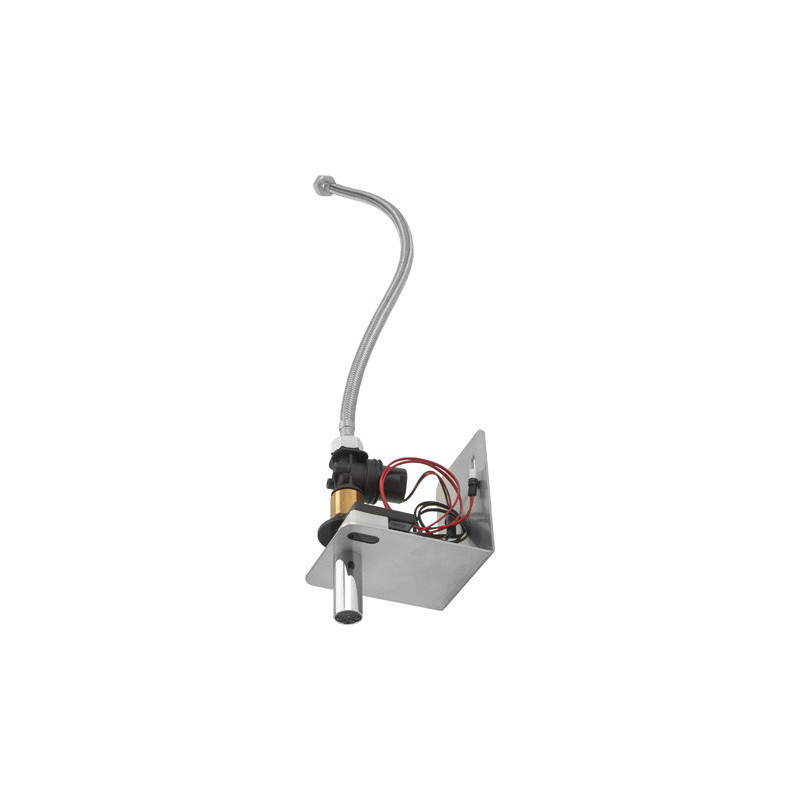

Vertical electronic faucet to integrate behind mirror

Creates a clean and hygienic hand washing space

RES-88

€295.00 Net Price

Tax excluded
Choose a model
Quantity

Automatic faucet to install behind a mirror, to integrate above a washbasin

The sensor detection is triggered when hands are under the spout in the sensor area.
When hands are removed from the sensor area, the water stop flowing.
The electronic faucet eliminates germs as its not being touched. The temperature and the flow are pre-adjusted.



Electronic faucet behind mirror

- Infrared self-adjustable settings by remote control (flow time, sensor range, temporary stop, on/off...).
- Cold or pre-mixed water supply, by solenoid valve M½’’ and filter included.
- NEOPERL orientable aerator to optimize the jet direction, with 6 LPM limited flow rate(1,9 LPM. or 3 LPM. on request). Anti-limescale agent.
- 30 cm minimum distance under the sensor, avoiding any shining.
- Power supply by 9V lithium battery or 230/24V external transformer.
- Low energy consumption, battery lifetime about 2 years or 250 000 cycles.
- Low battery indicator for when needs replacing.
- Security time: the faucet shuts off if the sensor is activated for more than 90 sec.
- Water pressure: 0.5 – 8 bars.
- Maximum temperature 70°C.
- 3 year warranty. ACS. CE.

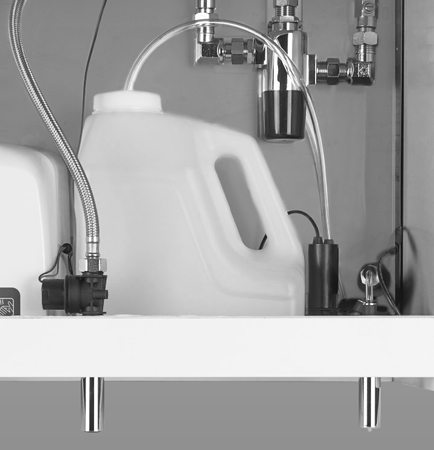

Recessed electronic faucet water soap

OPTIONS:

Sensor
Self-adjusting infrared
Electrical supply
230/9V transformer or 9V alkaline battery
Security off
Shut-off after 90 seconds of uninterrupted use
Solenoid valve
External M1/2'' with filter
Material
Chrome brass
Water supply
For cold or pre-mixed water
Pressure
0.5 - 8 bars
Max. temperature eligible
70°C
Flow rate
5 LPM (on demand 1,9 LPM)
Operation settings
Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty
3 years. CE. ACS.
