KUBIKA automatic soap dispenser

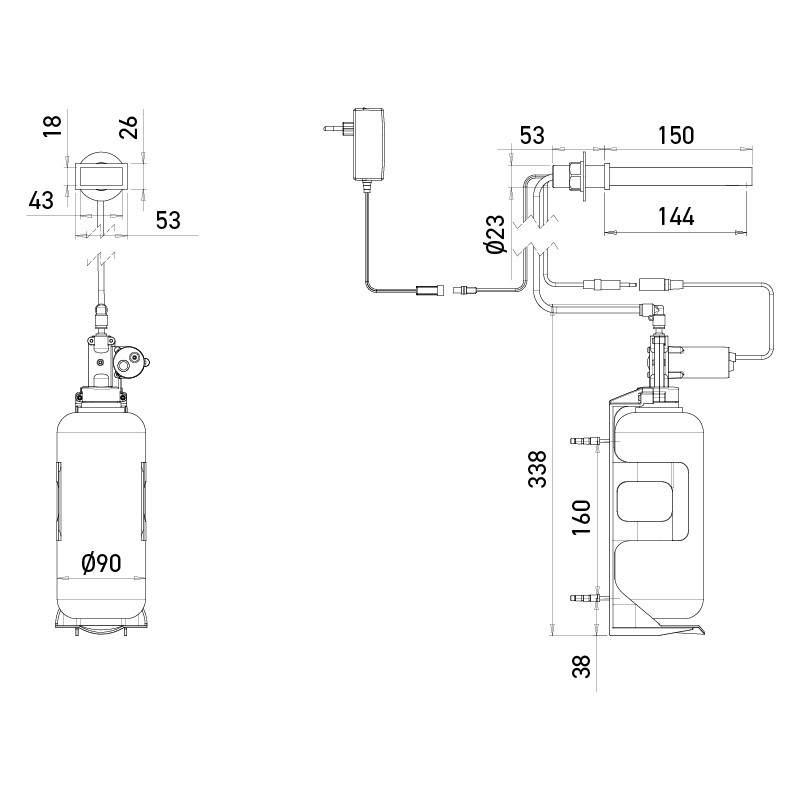

Mains-operated, recessed soap dispenser

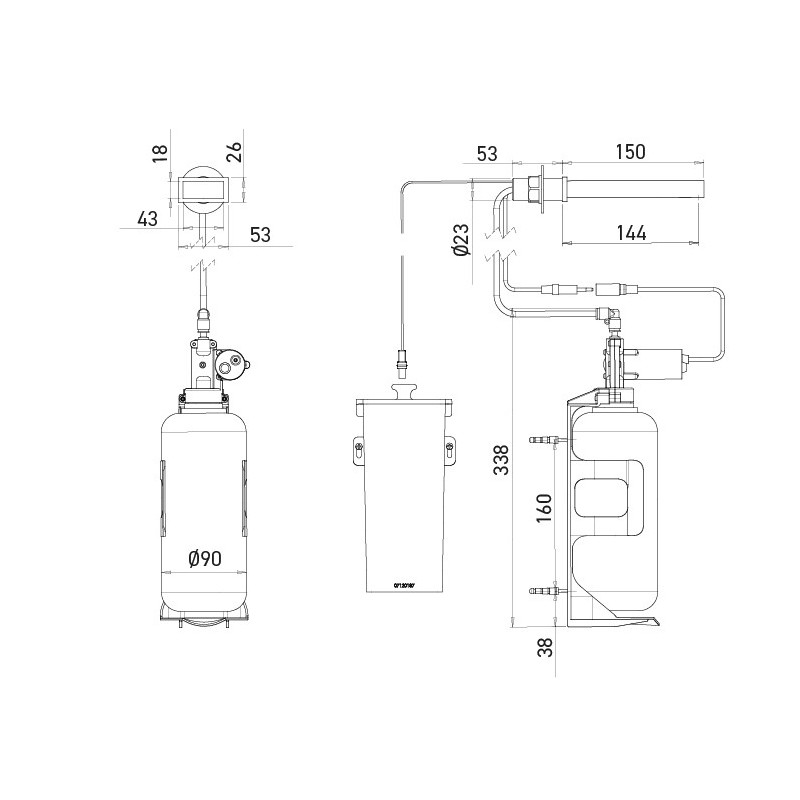

Battery-operated, panel-mounted soap dispenser
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
KUBIKA automatic soap dispenser
Mains-operated, recessed soap dispenser
Battery-operated, panel-mounted soap dispenser

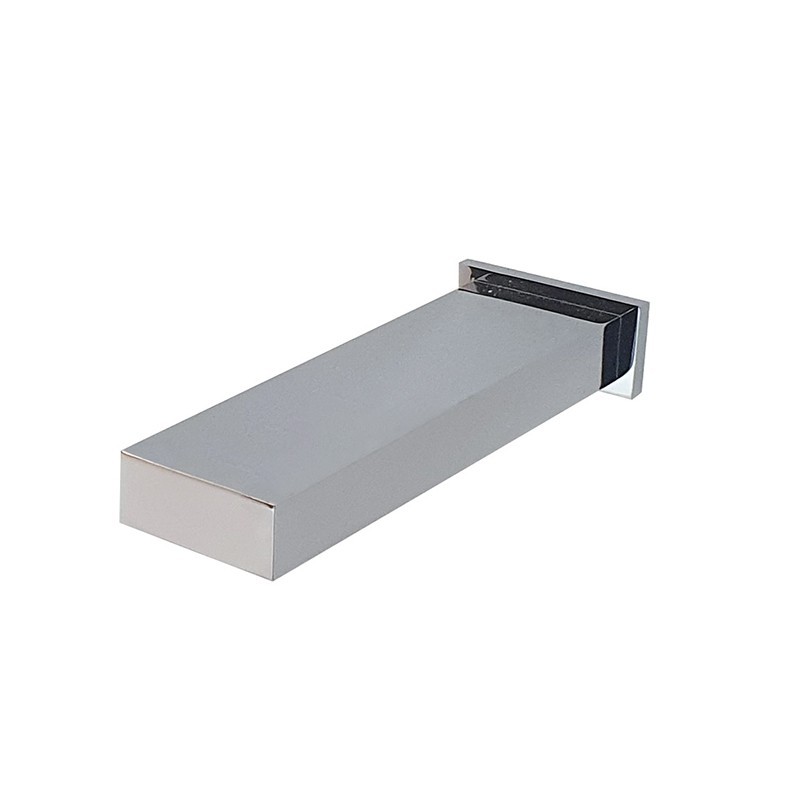

Automatic wall mounted KUBIKA soap dispenser

Perfect match with the KUBIKA electronic faucet for optimal hygiene and brand image in sanitary spaces

Reference RES-49P
Unit price
€295.00 Tax Excl.
Power supply
Wall installation

KUBIKA automatic liquid soap dispenser with infrared sensor, ideal for hygiene and the aesthetic improvement of sanitary areas.

Thanks to its touch-free activation and rectangular, minimalist desing, it combines aesthetic an hygiene, limiting the risk of cross-contamination.
Not to mention its robust construction, making it suitable for installation in high-traffic areas.
Easy to install and refill, it provides a cost-effective solution while reducing soap consumption.

  • Infrared sensor activation
  • 230/12V mains-operated or 6 LR20 batteries (not supplied)
  • Panel-mounted or recessed installation
  • 1L soap tank to refill with wall bracket included (optional 2L or 6L)
  • Peristaltic pump allowing the use of all types of liquid soap, detergent, lotion or antibacterial gel
  • Viscosity: 100-3800 cPs. PH: 6.5 - 8.5

Recessed installation

Wall-mounted fixation

Recessed installation



OPTIONS:
    • Remote control RES-38
    • Matte Black, Matte White, Brushed Nickel PVD, Matte Gold PVD, Copper PVD finishes (please contact us)
    • 6L soap tank to supply up to 6 dispensers (ref. RES-790)
    • 4 IP 68 transformer to supply up to 4 faucets(ref. RES-294)
    • Junction box to supply up to 10 faucets (ref. RES-296)
    • Matching KUBIKA faucet

Sensor
Self-adjusting infrared
Spout length
150 mm
Power supply
230/12V transformer
Battery (6xLR20 not supplied)
Capacity
1 L tank (6 L option)
Soap
Liquid soap (viscosity 100 -3800 cPs)
Dosage
0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
Pump
Peristaltic pump
Material
Brass
Fixing
Wall mounted or recessed
Operation settings
Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
Warranty
3 years

KUBIKA automatic liquid soap dispenser with infrared sensor, ideal for hygiene and the aesthetic improvement of sanitary areas.

Thanks to its touch-free activation and rectangular, minimalist desing, it combines aesthetic an hygiene, limiting the risk of cross-contamination.
Not to mention its robust construction, making it suitable for installation in high-traffic areas.
Easy to install and refill, it provides a cost-effective solution while reducing soap consumption.

  • Infrared sensor activation
  • 230/12V mains-operated or 6 LR20 batteries (not supplied)
  • Panel-mounted or recessed installation
  • 1L soap tank to refill with wall bracket included (optional 2L or 6L)
  • Peristaltic pump allowing the use of all types of liquid soap, detergent, lotion or antibacterial gel
  • Viscosity: 100-3800 cPs. PH: 6.5 - 8.5

Recessed installation

Wall-mounted fixation

Recessed installation



OPTIONS:
    • Remote control RES-38
    • Matte Black, Matte White, Brushed Nickel PVD, Matte Gold PVD, Copper PVD finishes (please contact us)
    • 6L soap tank to supply up to 6 dispensers (ref. RES-790)
    • 4 IP 68 transformer to supply up to 4 faucets(ref. RES-294)
    • Junction box to supply up to 10 faucets (ref. RES-296)
    • Matching KUBIKA faucet

Sensor
Self-adjusting infrared
Spout length
150 mm
Power supply
230/12V transformer
Battery (6xLR20 not supplied)
Capacity
1 L tank (6 L option)
Soap
Liquid soap (viscosity 100 -3800 cPs)
Dosage
0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
Pump
Peristaltic pump
Material
Brass
Fixing
Wall mounted or recessed
Operation settings
Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
Warranty
3 years
