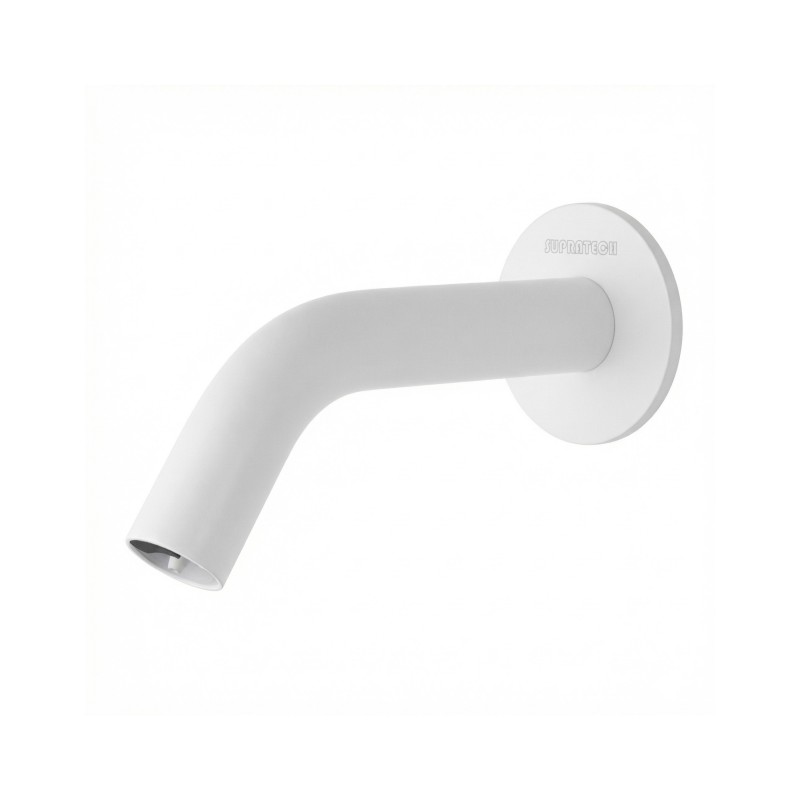

EXTREME WS wall-mounted designer touchless soap dispenser, matte white finish
Dimensions of the EXTREME WS wall-mounted electronic soap dispenser, mains-powered, cross-partition mounting
Previous
Next
EXTREME WS wall-mounted designer touchless soap dispenser, matte white finish
Dimensions of the EXTREME WS wall-mounted electronic soap dispenser, mains-powered, cross-partition mounting

Automatic wall mounted soap dispenser EXTREME WS

sensor integrated into the spout...

Available in finish Chrome, Matt black, Matte white, Matte Gold PVD, Copper PVD and Gunmetal PVD.

Reference RES-641-B
Unit price
€410.00 Tax Excl.
→ See Stainless Steel AISI 316 finish
Finish
Power supply
Wall installation
Spout length

Wall mounted electronic soap dispenser with an infrared detected integrated into the end of the spout, offering a fresh and subtle look.

  • Controlled soap quantity: touch-free soap dispenser senses the user’s hands, providing ‘just enough’ soap when needed and shutting off automatically without dripping.
  • This cost-effective sanitary solution is easily maintained and refilled, ensuring that the bathroom stays clean, organized and aesthetically pleasing.
  • Cross contamination protection; no physical contact.

 EXTREME WS electronic faucet

Technical specifications

  • Wall mounted touch-free electronic soap dispenser for liquid non-proprietary soap.
  • Activated by an infrared sensor.
  • Heavy duty 100% one-piece brassed body.
  • Peristaltic pump with accurate soap quantity.
  • 1 L soap bottle easy to refill (6L optional).
  • Easy to use refill button in order for the soap to come out of the spout. This function can also be performed with the remote control.
  • Adjustable settings by remote control: soap dosage, temporary shut-off function, soap tank refill, reset to factory settings.
  • Power supply battery box for 6xD batteries (not included)  or 12V transformer.
  • Sensor includes a low battery indicator.
  • Soap viscosity 100-3000 cPs.
  • Limited warranty 2 years. CE.



OPTIONS:

Sensor
Infrared
Detection adjustment
Self-adjusting
Detection details
Sensor in the spout tip
Spout length
150 mm
Power supply
Battery (6xLR20 not supplied)
230/12V transformer
Capacity details
1 L tank (6 L option)
Soap type
Liquid
Dosage
0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
Pump
Peristaltic pump
Material
Brass
Fixing
Wall recessed
Through-partition mounted
Operation settings
Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
Warranty
2 years
Soap details
Liquid soap (viscosity 100 -3800 cPs)
Tank capacity
1 to 1.5 L

Wall mounted electronic soap dispenser with an infrared detected integrated into the end of the spout, offering a fresh and subtle look.

  • Controlled soap quantity: touch-free soap dispenser senses the user’s hands, providing ‘just enough’ soap when needed and shutting off automatically without dripping.
  • This cost-effective sanitary solution is easily maintained and refilled, ensuring that the bathroom stays clean, organized and aesthetically pleasing.
  • Cross contamination protection; no physical contact.

 EXTREME WS electronic faucet

Technical specifications

  • Wall mounted touch-free electronic soap dispenser for liquid non-proprietary soap.
  • Activated by an infrared sensor.
  • Heavy duty 100% one-piece brassed body.
  • Peristaltic pump with accurate soap quantity.
  • 1 L soap bottle easy to refill (6L optional).
  • Easy to use refill button in order for the soap to come out of the spout. This function can also be performed with the remote control.
  • Adjustable settings by remote control: soap dosage, temporary shut-off function, soap tank refill, reset to factory settings.
  • Power supply battery box for 6xD batteries (not included)  or 12V transformer.
  • Sensor includes a low battery indicator.
  • Soap viscosity 100-3000 cPs.
  • Limited warranty 2 years. CE.



OPTIONS:

Sensor
Infrared
Detection adjustment
Self-adjusting
Detection details
Sensor in the spout tip
Spout length
150 mm
Power supply
Battery (6xLR20 not supplied)
230/12V transformer
Capacity details
1 L tank (6 L option)
Soap type
Liquid
Dosage
0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
Pump
Peristaltic pump
Material
Brass
Fixing
Wall recessed
Through-partition mounted
Operation settings
Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
Warranty
2 years
Soap details
Liquid soap (viscosity 100 -3800 cPs)
Tank capacity
1 to 1.5 L
