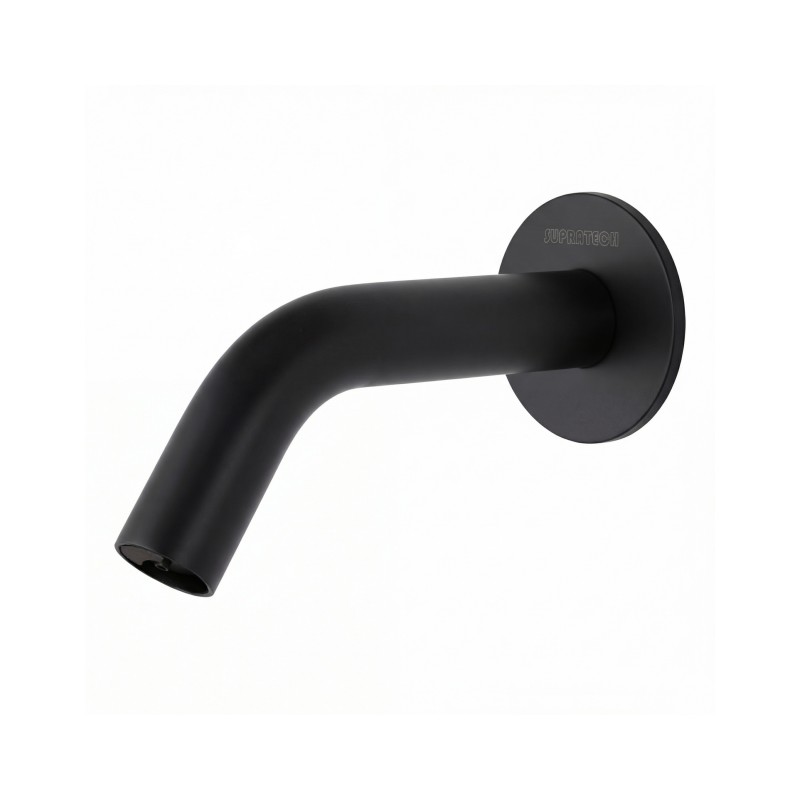

Automatic wall mounted soap dispenser EXTREME WS
sensor integrated into the spout...
Available in finish Chrome, Matt black, Matte white, Matte Gold PVD, Copper PVD and Gunmetal PVD.

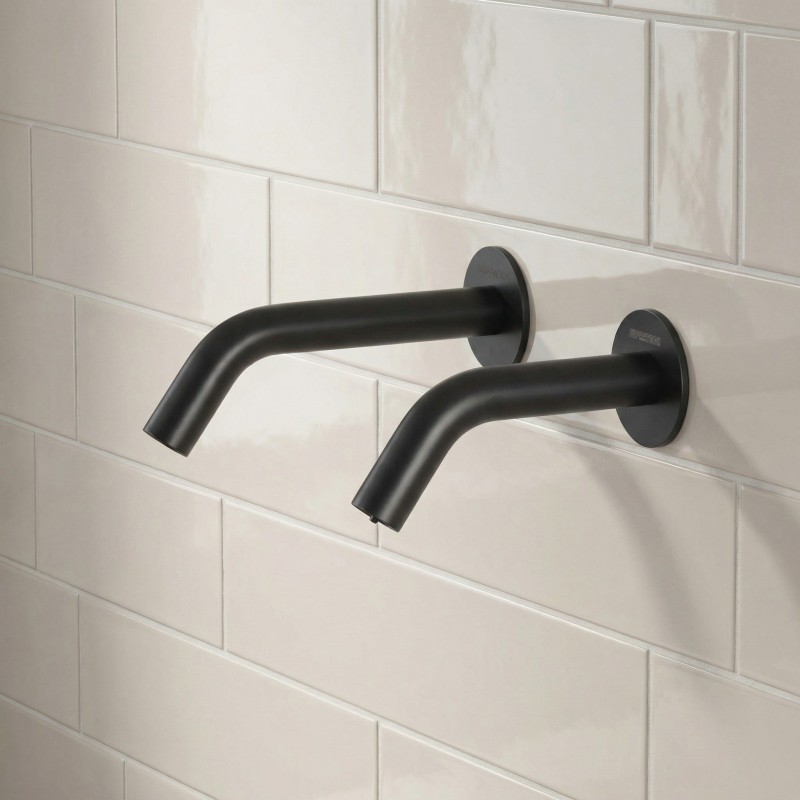

Wall mounted electronic soap dispenser with an infrared detected integrated into the end of the spout, offering a fresh and subtle look.
- Controlled soap quantity: touch-free soap dispenser senses the user’s hands, providing ‘just enough’ soap when needed and shutting off automatically without dripping.
- This cost-effective sanitary solution is easily maintained and refilled, ensuring that the bathroom stays clean, organized and aesthetically pleasing.
- Cross contamination protection; no physical contact.

Technical specifications
- Wall mounted touch-free electronic soap dispenser for liquid non-proprietary soap.
- Activated by an infrared sensor.
- Heavy duty 100% one-piece brassed body.
- Peristaltic pump with accurate soap quantity.
- 1 L soap bottle easy to refill (6L optional).
- Easy to use refill button in order for the soap to come out of the spout. This function can also be performed with the remote control.
- Adjustable settings by remote control: soap dosage, temporary shut-off function, soap tank refill, reset to factory settings.
- Power supply battery box for 6xD batteries (not included) or 12V transformer.
- Sensor includes a low battery indicator.
- Soap viscosity 100-3000 cPs.
- Limited warranty 2 years. CE.
- Sensor
- Infrared
- Detection adjustment
- Self-adjusting
- Detection details
- Sensor in the spout tip
- Spout length
- 150 mm
- Power supply
- Battery (6xLR20 not supplied)
230/12V transformer - Capacity details
- 1 L tank (6 L option)
- Soap type
- Liquid
- Dosage
- 0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
- Pump
- Peristaltic pump
- Material
- Brass
- Fixing
- Wall recessed
Through-partition mounted - Operation settings
- Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
- Warranty
- 2 years
- Soap details
- Liquid soap (viscosity 100 -3800 cPs)
- Tank capacity
- 1 to 1.5 L
Wall mounted electronic soap dispenser with an infrared detected integrated into the end of the spout, offering a fresh and subtle look.
- Controlled soap quantity: touch-free soap dispenser senses the user’s hands, providing ‘just enough’ soap when needed and shutting off automatically without dripping.
- This cost-effective sanitary solution is easily maintained and refilled, ensuring that the bathroom stays clean, organized and aesthetically pleasing.
- Cross contamination protection; no physical contact.

Technical specifications
- Wall mounted touch-free electronic soap dispenser for liquid non-proprietary soap.
- Activated by an infrared sensor.
- Heavy duty 100% one-piece brassed body.
- Peristaltic pump with accurate soap quantity.
- 1 L soap bottle easy to refill (6L optional).
- Easy to use refill button in order for the soap to come out of the spout. This function can also be performed with the remote control.
- Adjustable settings by remote control: soap dosage, temporary shut-off function, soap tank refill, reset to factory settings.
- Power supply battery box for 6xD batteries (not included) or 12V transformer.
- Sensor includes a low battery indicator.
- Soap viscosity 100-3000 cPs.
- Limited warranty 2 years. CE.
- Sensor
- Infrared
- Detection adjustment
- Self-adjusting
- Detection details
- Sensor in the spout tip
- Spout length
- 150 mm
- Power supply
- Battery (6xLR20 not supplied)
230/12V transformer - Capacity details
- 1 L tank (6 L option)
- Soap type
- Liquid
- Dosage
- 0.7 to 0.9 cm³ depending on soap viscosity (adjustable by remote control)
- Pump
- Peristaltic pump
- Material
- Brass
- Fixing
- Wall recessed
Through-partition mounted - Operation settings
- Adjustable by RES-38 remote control: soap quantity, tank refill, temporary stop, reset (factory settings)
- Warranty
- 2 years
- Soap details
- Liquid soap (viscosity 100 -3800 cPs)
- Tank capacity
- 1 to 1.5 L
