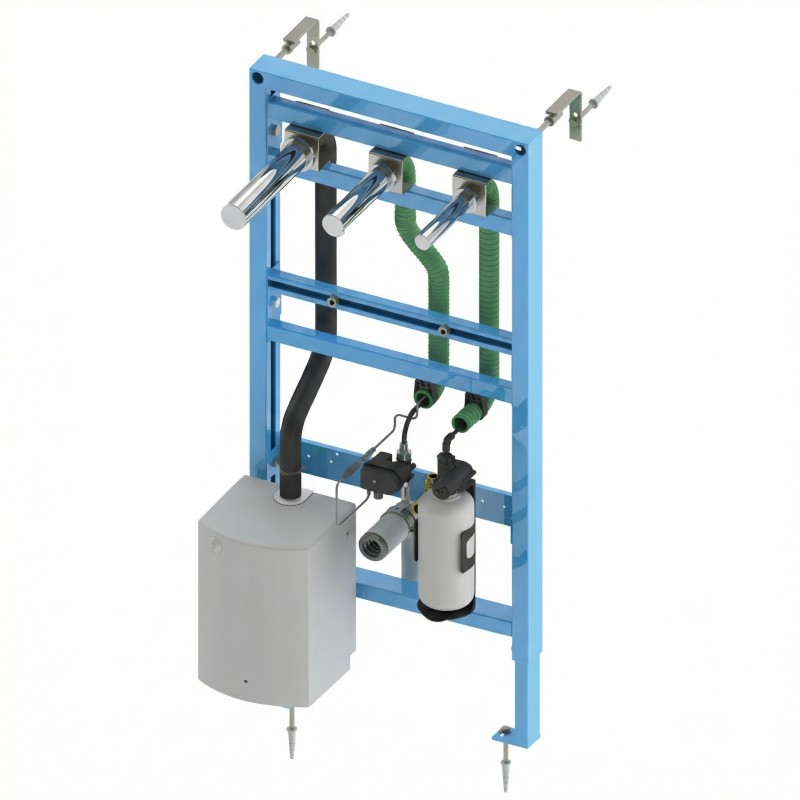

RONDEO TRIO washbasin support frame, with electronic faucet, integrated soap dispenser and hand dryer

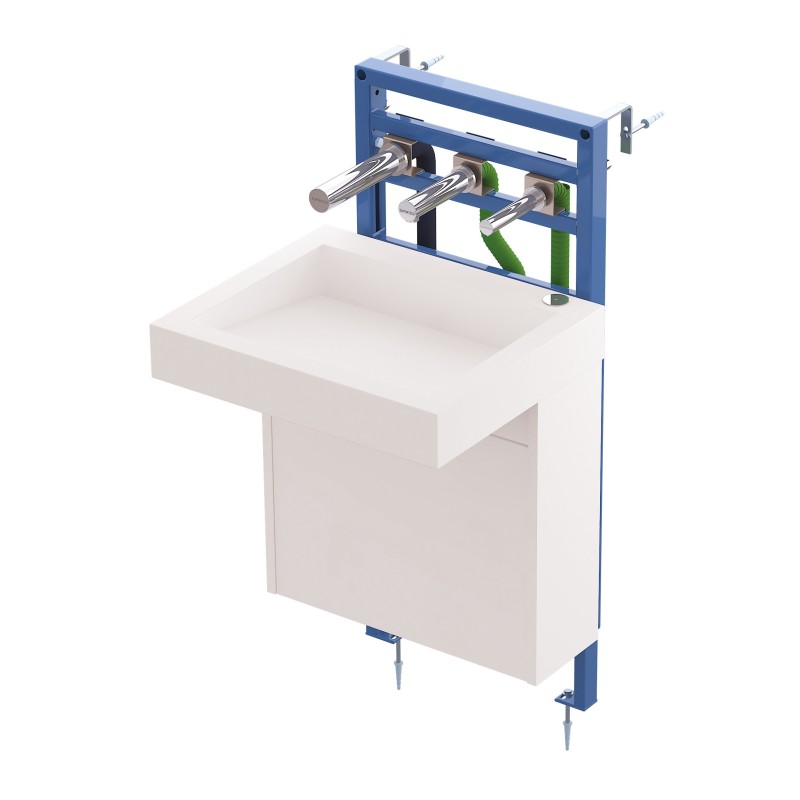

RONDEO TRIO lavatory support frame set and RIVAGE hand basin with under-basin cabinet, accessible for people with reduced mobili

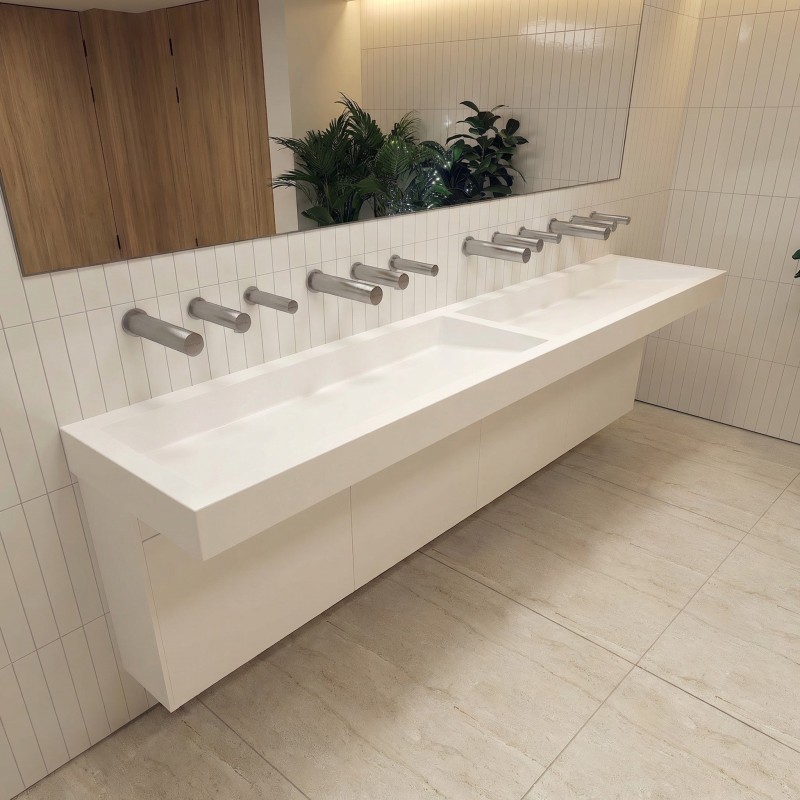

Mounting frame for washbasin with contactless faucet RONDEO soap, water and air dispenser for facilities

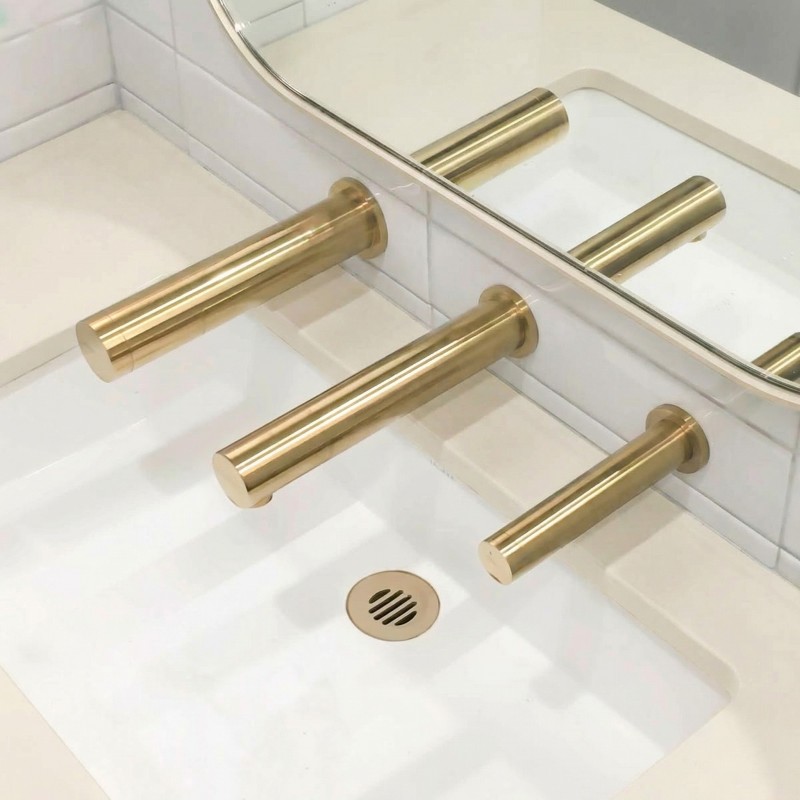

RONDEO TRIO brushed gold for contactless hand washing, integrated on lavatory support frame

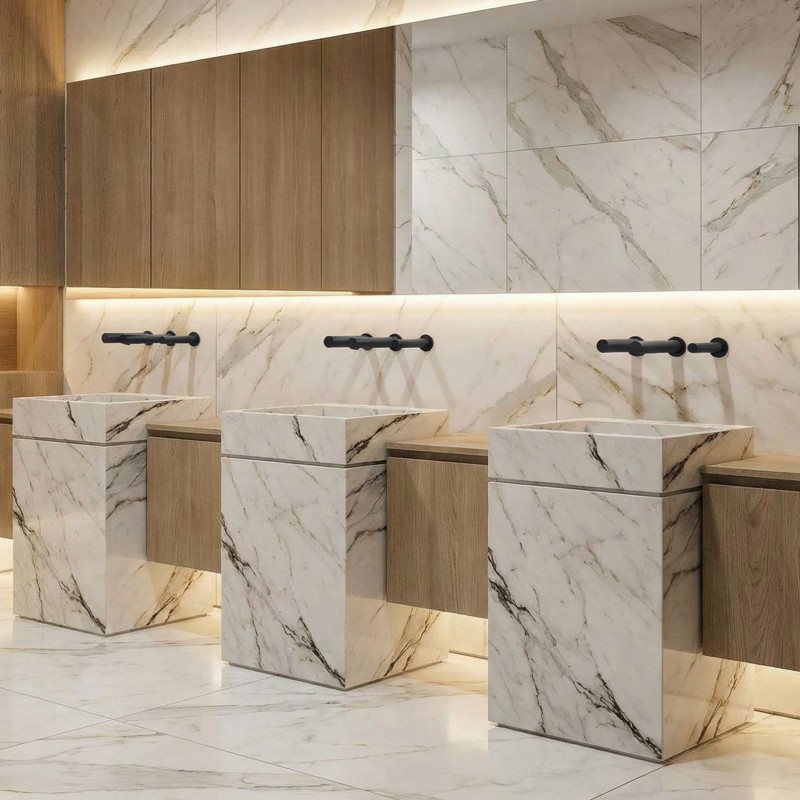

Vandal-resistant mounting for wall-mounted RONDEO contactless faucet in matte black, integrated on metal support frame

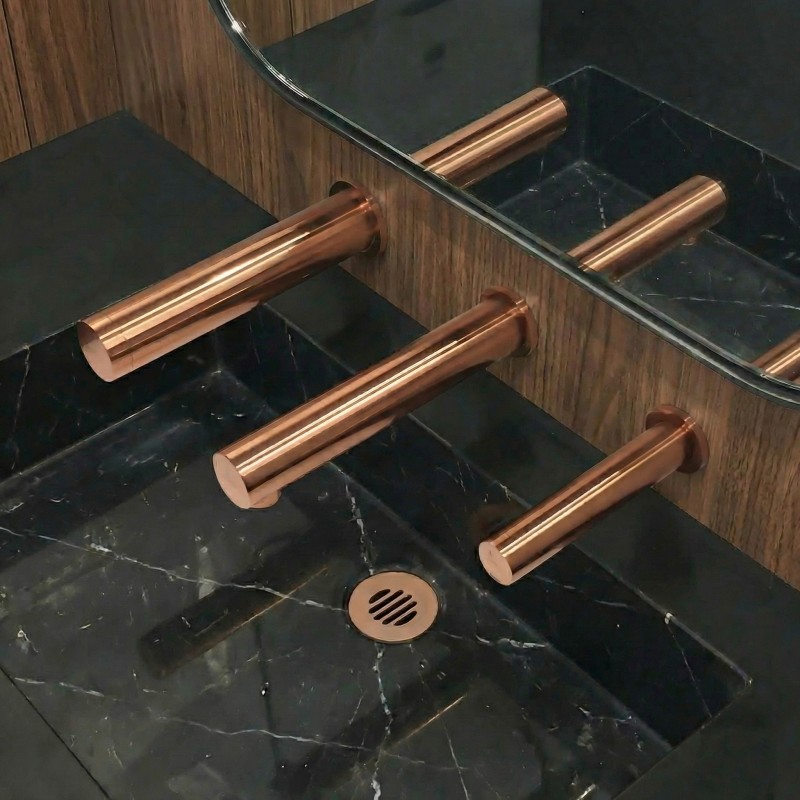

RONDEO TRIO contactless faucet with PVD Copper finish for hand hygiene, integrated on sink mounting frame
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
RONDEO TRIO washbasin support frame, with electronic faucet, integrated soap dispenser and hand dryer
RONDEO TRIO lavatory support frame set and RIVAGE hand basin with under-basin cabinet, accessible for people with reduced mobili
Mounting frame for washbasin with contactless faucet RONDEO soap, water and air dispenser for facilities
RONDEO TRIO brushed gold for contactless hand washing, integrated on lavatory support frame
Vandal-resistant mounting for wall-mounted RONDEO contactless faucet in matte black, integrated on metal support frame
RONDEO TRIO contactless faucet with PVD Copper finish for hand hygiene, integrated on sink mounting frame

RONDEO TRIO washbasin frame for soap water and air

robust and simplified installation

Reference RES-KE3-123
Unit price
€1,555.00 Tax Excl.
Finish
Ask a question

Metal washbasin frame for RONDEO TRIO collection, with integrated electronic cold or premixed water faucets, electronic soap dispenser and hand dryer, available with an entirely brass or stainless steel body type AISI 316.

A COMPLET SOLUTION OF TOUCH FREE HAND WASHING, WITH COST OPTIMISATION.

Supplies an exact soap and water quantity useful to washing hands, for a quick investment feedback.

The wall faucets are appreciated for the creation of a clean and sophisticated environment, but it requires a precise installation.
With the washbasin frame for the touch free water, soap and air, the installation is extremely simple and rugged.

The support frame allows for an easy, quick, and worry-free installation in a few steps: frame mounting, faucet and soap dispenser connexions, wall basin fixation; and it's finished!

Advantages :
- Allows a rugged and simplified installation.
- Minimizes water splashes on the floor and around the washbasin.
- Vandal proof fixation of spout on a metal frame.
- Drastic water and soap reduction consumption.
- Touch free. Participates to user protection against crossed contamination.
- Evacuation height, wash basin and adjustable faucets.
- Brings an electronic complete solution water, air and soap, also mounting elements (excluding the washbasin).

Technical characteristics :
- For wall thickness 40 mm maximum (70 mm optional).
- Washbasin frame adjustable 1140 to 1340 mm.
- Galvanized feet adjustable height 0-200 mm, rotating.
- Washbasin fixation distance from 60 – 360 mm.
- C profile in 40/40 mm. Blue epoxy paint.
- Protection cover for openings against humidity and dirt, to be cut depending on the wall thickness.
- Faucet infrared detection, adjustable at all moments by remote control RES-31:
  detection sensitivity, security stop delay, hygienic flush, temporary off...
- Hand dryer power and volume adjustable by a button. Hepa filter.
-  3 year limited warranty.

Delivered with:
Electronic soap dispenser RONDEO spout 150 mm - Electronic faucet RONDEO spout 170 mm – Hand dryer RONDEO spout 220 mm ; Evacuation ø 50 mm – Joint ø 44/32 mm – 2 threaded rods M10 for wash basin fixation and bolt covers– Floor and wall fixations.

OPTIONS:

  • Remote control settings RES-31
  • Water flow limit 3 LPM., 1,9 LPM. or 1,3 LPM
  • Version L water spout extended 220 mm, XL water spout 295 mm (soap 177 mm as an option)
  • Finishes in brushed stainless steel AISI 316 grade, matte black, matte white, matte gold PVD, copper PVD
  • Mixing tap
  • Periodical rinse anti-legionella
  • Transformer box to supply up to 10 faucets or soap dispensers (ref. RES-295)
  • Multiple supply kit: tank 6L. to supply from 1 to 6 soap dispensers (ref. RES-790)

Components

Electronic faucet RONDEO

Installation Electric supply

Wall mounted or recessed with wall frame support

Electric supply

12V transformer (for water and soap with power splitter)

Pressure

0.5-8 bars

Water dispenser

Cold or premixed water

Water flow

6 LPM – as an option 3 LPM / 1,9 LPM / 1,3 LPM

Temperature

Max 70°C

Security off

After 90 sec. without interruption (adjustable by remote control)

Periodic rinse

24 hours after last use

Soap dispenser RONDEO

Installation

Wall mounted or recessed with wall frame support

Electrical supply

12V transformer (for water and soap with power splitter)

Soap

1L. tank. Peristaltic pump for all types of liquid soap, detergent or gel hand sanitizer.

Soap quantity

Pre-set: 1.2 -1.6 cc (adjustable by remote control).

Filling

Soap initiation button on the pump or by remote control

Hand dryer RONDEO

Installation

Wall mounted or recessed with wall frame support

Power

1600 W adjustable (engine 350-700 W / resistance 450-900 W)

Voltage supply

200-240V 50-60Hz / 1,3-1,6 KW / 6.1-6.7 A

Security

Automatic switch-off in case of an irregular use, more than 60 seconds.

Engine with security thermostat at 85° C.
Resistance stop by thermic fuse at 142°C.

Standby consumption

0.3 - 0.4 W

Security off

After 60 seconds without interruption or in case of overheating

Sensor range

170 mm ± 20, adjustable

Protection rating

IP34
Hygienic rinse anti-legionella
After 24 H of non-use
