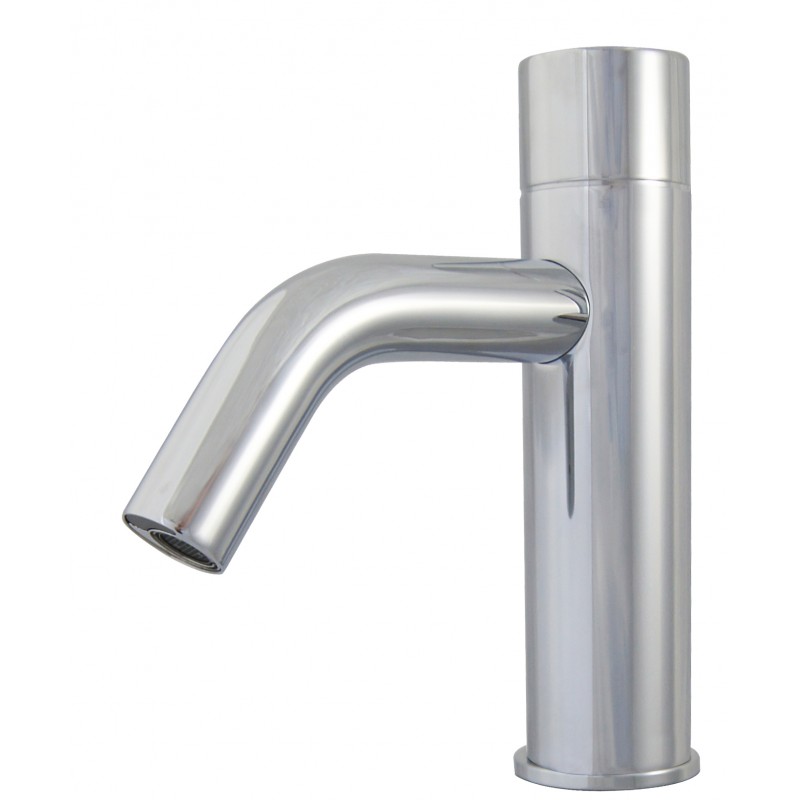

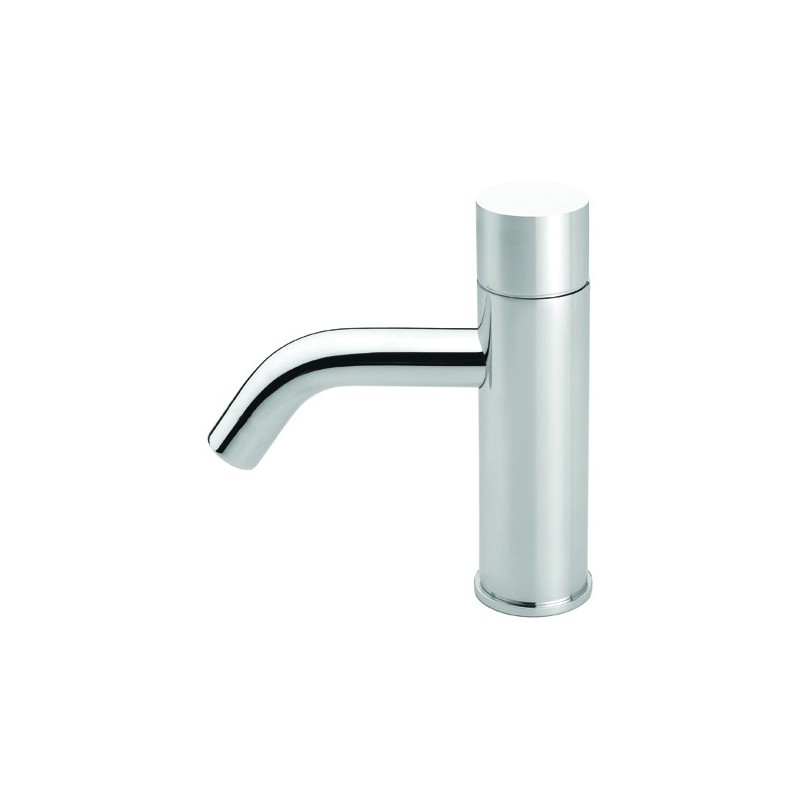

EXTREME DS electronic faucet

Discreet detection located directly at the end of the spout.

Ref. : RES-6

€354.00 excl. VAT

Tax excluded

Choose a model

Quantity

EXTREME DS electronic faucet with infrared detection at the end of the spout, for a cleaner and more refined aesthetic.

Another advantage is the rapid response time of the detection system.

Self-adjusting detection. If necessary, settings can be adjusted using the RES-31 remote control (detection sensitivity, flow time, periodic rinse, temporary stop...).

Powered by 9V battery or 230/9V transformer. By transformer, with a battery backup compartment for normal operation in the event of a power outage.

For cold or premixed water with chromed brass robust body.

robinet-noir-mat-electronique-EXTREME-DS-BLACK

Hot trend: matt black is modern, sleek, and chic.
It reveals the subtlety of this deep hue by combining it with the reflections
of stainless steel, anthracite grey or by coordinating it with light colours...

OPTIONS :

Remote control RES-31
Brushed, matt black, matt gold finish (minimum quantity)
Periodic hygienic rinse
Limited flow rate 1,9 LPM.
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from up to 4 taps (ref. RES-294)
230/12V junction box to supply up to 10 taps (ref. RES-295)
Soap dispenser matching design

Sensor: Spout tip with self-adjusting infrared sensor
Electrical supply: 230/9V transformer or 9V alkaline battery
Security off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: External M1/2'' with filter. Includes a space for a backup battery for mains operated, in the case of a power cut.
Material: Chrome brass
Water supply: For cold or pre-mixed water
Pressure: 0.3 - 8 bars
Max. temperature eligible: 70°C
Flow rate: 4 LPM (1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.
