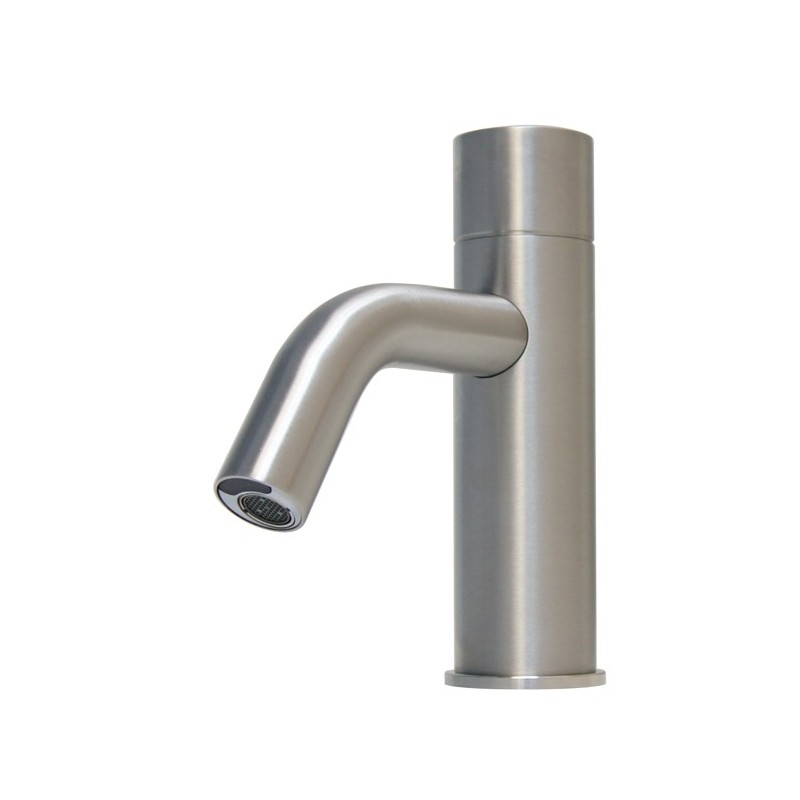

EXTREME DS AISI 316 stainless steel electronic faucet

Concealed infrared detection directly in the end of the spout with a simple shape

Réf. : RES-5-S1

€433.00 Tax Excl.

Power supply

Finish

AISI 3016 brushed stainless steel

Ask a question

Electronic stainless steel tap EXTREME DS with infrared detection integrated in the end of the spout, for a neater and refined design.
Touch free, perfect hygiene and comfortable to use.

Auto-adjustable detection. Adjustable function settings by remote control RES-31 if necessary (detection sensitivity, flow time, periodical rinse, temporary off…).

Stainless steel robust body for cold or premixed water.

High range stainless steel brushed finish, AISI 316 quality, offering a higher durability and hygiene.

Long lasting throughout time (resistant to marks and scratches, UV, finger marks…), ensuring quality, lasting and irreproachable aspect to you lavatory. The brushed striae brings a matt, design and contemporary aspect.

The 316 stainless steel is particularly appreciated for its bacteriostatic quality in the medical field and anti-corrosion in the sea environment. Entirely recyclable and ecological stainless steel.

robinet-electronique-inox-design-extreme-ds

OPTIONS :

Remote control RES-31
Anti-legionella hygienic rinse
Limited flow rate 1,9 LPM.
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 taps (ref. RES-294)
230/12V junction box to supply up to 10 taps (ref. RES-295)

Sensor: Spout tip with self-adjusting infrared sensor
Power supply: 9V battery
230/9V transformer
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: External M1/2'' with filter. Includes a space for a backup battery for mains operated, in the case of a power cut.
Material: AISI 316 Stainless steel
Finish: Brushed
Water supply: Single supply: cold water or pre-mixed water (mixed upstream)
Pressure: 0.3 - 8 bars
Max. eligible temperature: 70°C
Flow rate: 4 LPM (1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.

RES-5-6-S1_Technical-sheet (pdf)

Electronic stainless steel tap EXTREME DS with infrared detection integrated in the end of the spout, for a neater and refined design.
Touch free, perfect hygiene and comfortable to use.

Auto-adjustable detection. Adjustable function settings by remote control RES-31 if necessary (detection sensitivity, flow time, periodical rinse, temporary off…).

Stainless steel robust body for cold or premixed water.

High range stainless steel brushed finish, AISI 316 quality, offering a higher durability and hygiene.

OPTIONS :

Remote control RES-31
Anti-legionella hygienic rinse
Limited flow rate 1,9 LPM.
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 taps (ref. RES-294)
230/12V junction box to supply up to 10 taps (ref. RES-295)

Sensor: Spout tip with self-adjusting infrared sensor
Power supply: 9V battery
230/9V transformer
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: External M1/2'' with filter. Includes a space for a backup battery for mains operated, in the case of a power cut.
Material: AISI 316 Stainless steel
Finish: Brushed
Water supply: Single supply: cold water or pre-mixed water (mixed upstream)
Pressure: 0.3 - 8 bars
Max. eligible temperature: 70°C
Flow rate: 4 LPM (1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.
