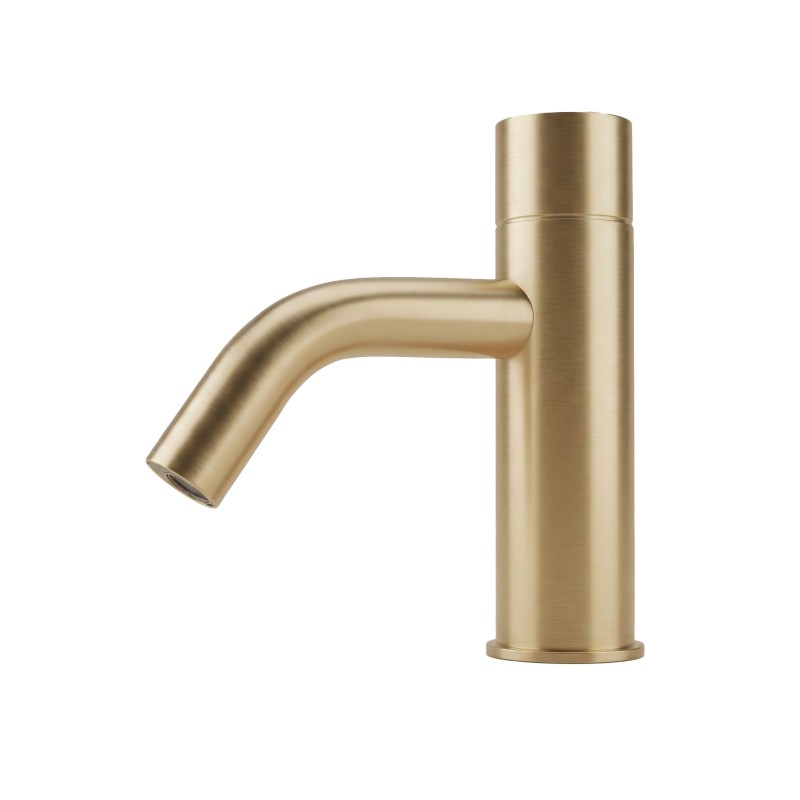

Touch-free tap EXTREME DS in matt gold PVD finish, sensor concealed in the tip of the spout

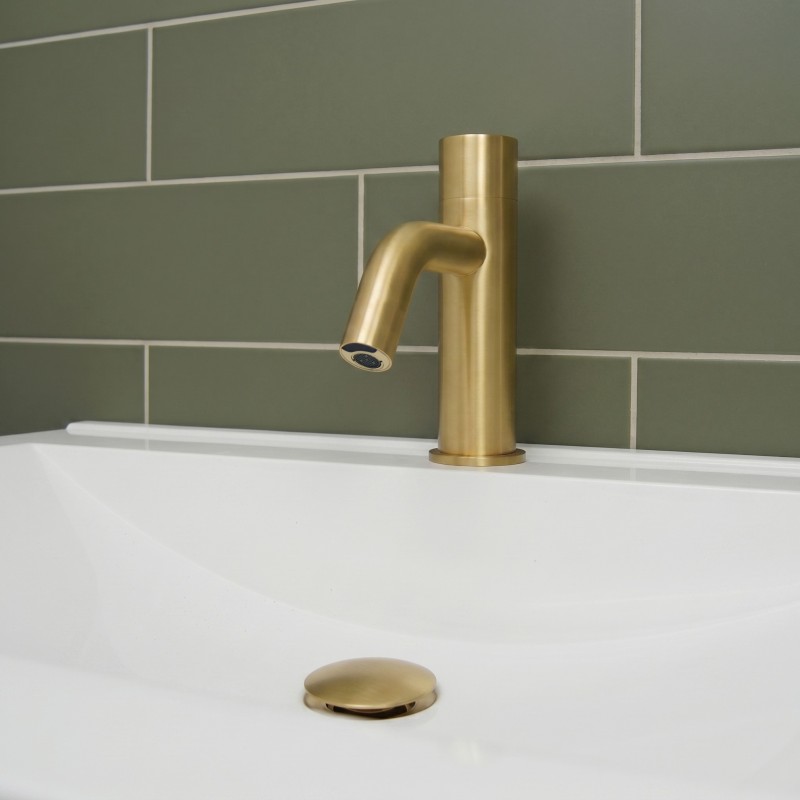

Infrared automatic tap in matt gold PVD EXTREME DS
Dimensions of the mains-powered electronic tap EXTREME DS
Previous
Next
Touch-free tap EXTREME DS in matt gold PVD finish, sensor concealed in the tip of the spout
Infrared automatic tap in matt gold PVD EXTREME DS
Dimensions of the mains-powered electronic tap EXTREME DS

EXTREME DS sensor tap

Clean design: sensor concealed right in the tip of the spout

Available in finish Chrome, Matt black, Matte Gold PVD and Copper PVD.

Reference RES-6-AB
Unit price
€531.00 Tax Excl.
Technical sheet & documents
→ See Stainless Steel AISI 316 finish
Finish
Power supply
Ask a question

Free shipping from €1,000 excl. VAT in mainland France. Delivery terms

EXTREME DS electronic tap with an infrared sensor built into the tip of the spout, for a look that is cleaner and more refined.
Another advantage: optimal sensor response speed.

Self-adjusting sensor. If needed, the operating settings can be adjusted with the RES-31 remote control (sensor range, run time, periodic flush, temporary shut-off...).

Runs on a 9 V battery or a 230/9 V transformer. On mains power, a backup battery slot keeps the tap working normally during a power cut.

For cold or pre-mixed water with a sturdy chrome-plated brass body.

EXTREME DS matt black electronic tap A strong trend, matt black is modern, clean and chic.
The subtlety of this deep shade comes out when it is paired with the sheen of stainless steel,
with anthracite grey, or with light colours...



OPTIONS:

Sensor
Infrared
Detection adjustment
Self-adjusting
Detection details
Sensor in the spout tip
Power supply
9V battery
230/9V transformer
Hygienic rinse anti-legionella
After 24 H of non-use
Safety shut-off
Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve
External M1/2'' with filter. Includes a space for a backup battery for mains operated, in the case of a power cut.
Material
Brass
Water supply
Single supply
Water supply details
Single supply: cold water or pre-mixed water (mixed upstream)
Pressure
0.3 - 8 bars
Max. eligible temperature
70°C
Flow rate
4 LPM (1.9 LPM upon request)
Operation settings
Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty
3 years
Certification
ACS
Marking
CE
