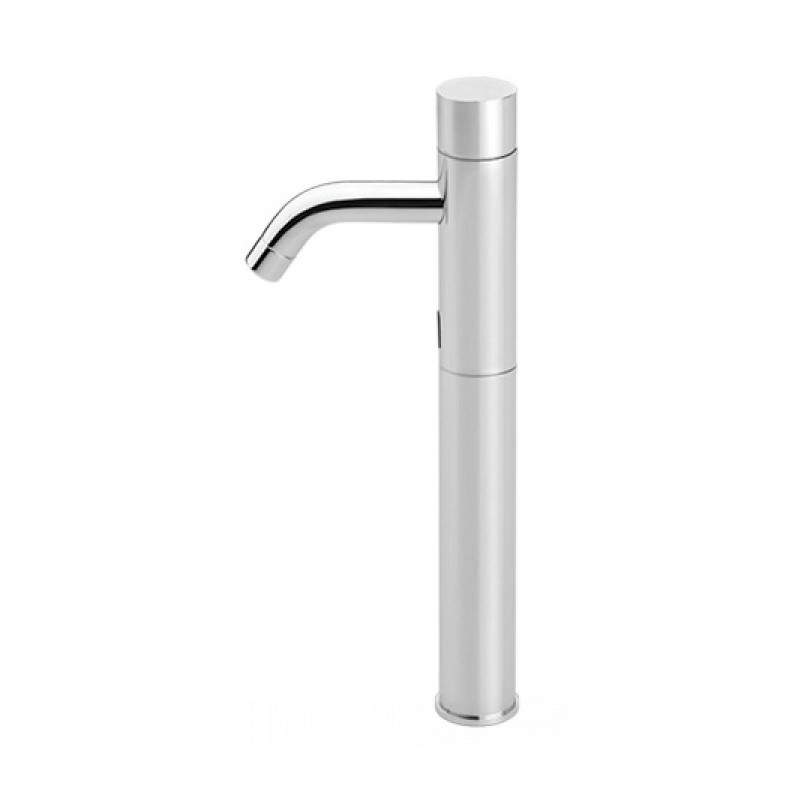

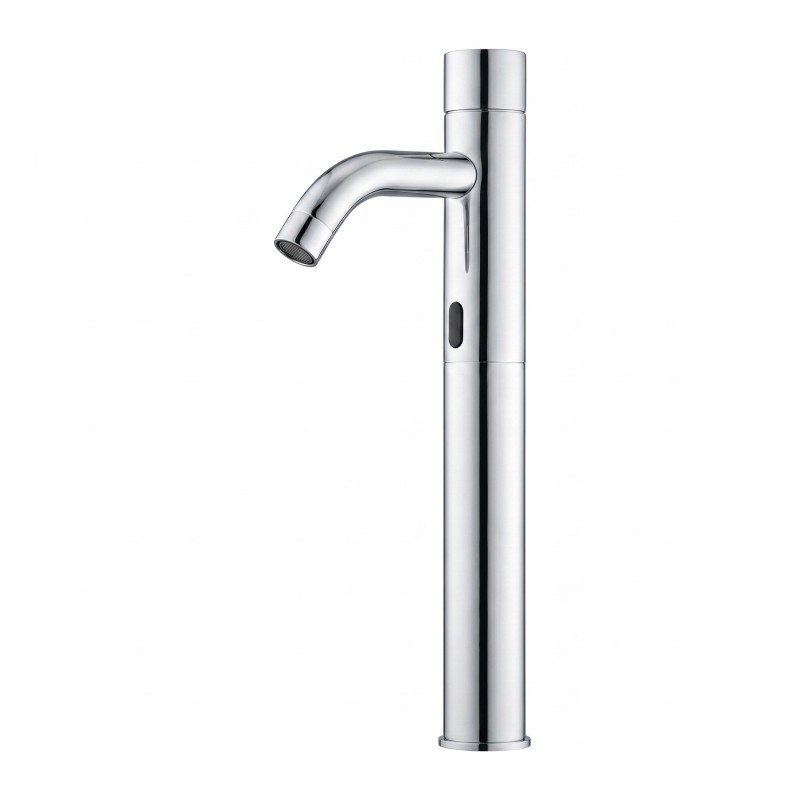

EXTREME tall deck-mounted electronic faucet

Name: EXTREME tall deck-mounted electronic faucet
SKU: RES-3-R

with different available heights

Réf. : RES-3-R

€510.00 Tax Excl.

Choose a model

Option long spout

Poser une question

EXTREME electronic tap, tall version for vanity bowl, countertop washbasin or vessel sink.

Its elegant design brings a modern and refined look to your sanitary spaces.
The faucet is designed for an easy installation and maintenance, with all its components integrated into the body.
Easy battery access under the washbasin.

Automatic faucet EXTREME PLUS

Technical Features

- Pre-adjusted infrared detection, optimized or adjustable by remote control (flow time, sensor range, temporary stop).

- Temporary stop after 90 seconds when water runs non-stop (adjustable by remote control).

- Indicator light when batteries need changing.

- 230/9V transformer or 9V battery power supply.

- Low energy consumption, batteries last around 3 years.

- Water pressure: 0.3 – 8.0 bars.

- Maximum temperature 70°C.

- Mixes cold and hot water on mixer version, with solenoid valve integrated into the faucet body.

- NEOPERL adjustable aerator to set the water stream direction, with 6 LPM limited flow rate (1,9 LPM. or 3 LPM. on request).

- SPEX hoses (resistant to chlorinated disinfection and temperature increase) with non return valve integrated.

- CE. ACS. norm compliant. 3 year warranty.

Electronic faucet EXTREME PLUS

OPTIONS:

RES-31 remote control
Brushed finish (limited quantity)
Limited 1,9 LPM or 3 LPM flow rate
45, 110, 163 or 230 mm raise according to washbasin height
Extended L spout version of 138 mm
LED: bright ring
IP68 transformer (ref. RES-292)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
230/12V junction box to supply up to 10 faucets (ref. RES-295)
Matching soap dispenser

Sensor: Infrared with optimized presets
Power supply: 230/9V transformer or 9V alkaline battery
Hygienic rinse anti-legionella: After 24 H of non-use
Safety shut-off: Shut-off after 90 seconds of uninterrupted use (adjustable)
Solenoid valve: Embedded
Material: Chrome-plated brass
Water supply: For cold or pre-mixed water / Cold and hot water
Water inlet: HOSE flexibles with embedded check valves F1/2''. Filters included.
Pressure: 0.3 - 8 bars
Max. eligible temperature: 70°C
Flow rate: NEOPERL 6 LPM adjustable jet aerator (flow limited at 3 LPM, 1.3 or 1.9 LPM upon request)
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Warranty: 3 years. CE. ACS.

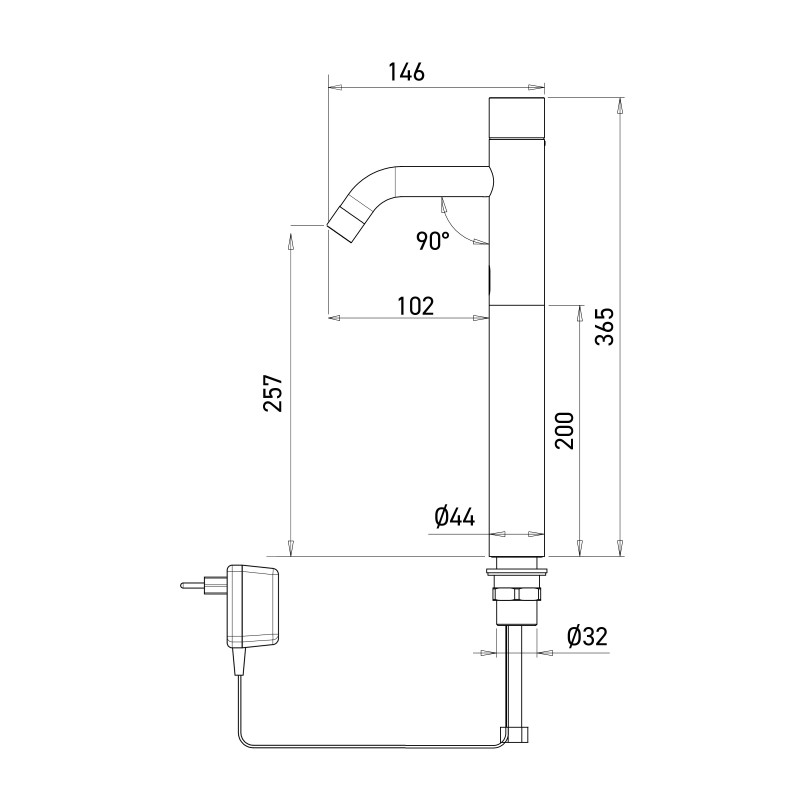

RES-3L-R_Dim (pdf)

RES-1-L-R-2D-ftl-view (dwg)

RES-1-L-R-3D (dwg)

RES-1-L-R (ifc)

RES-1-L-R (obj)

RES-1-R-2D-ftl-view (dwg)

RES-1-R-3D (dwg)

RES-1-R (ifc)

RES-1-R (obj)

RES-1-4-R_Technical-sheet (pdf)
