Electronic urinal for public restrooms VAO rimless

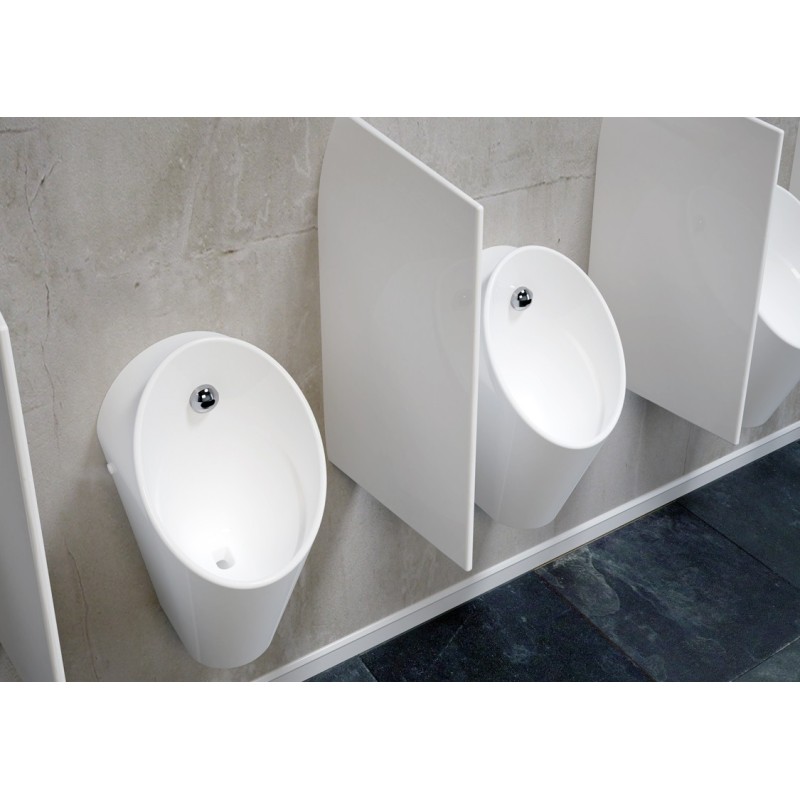

Automatic urinal faucet with integrated detection VAO

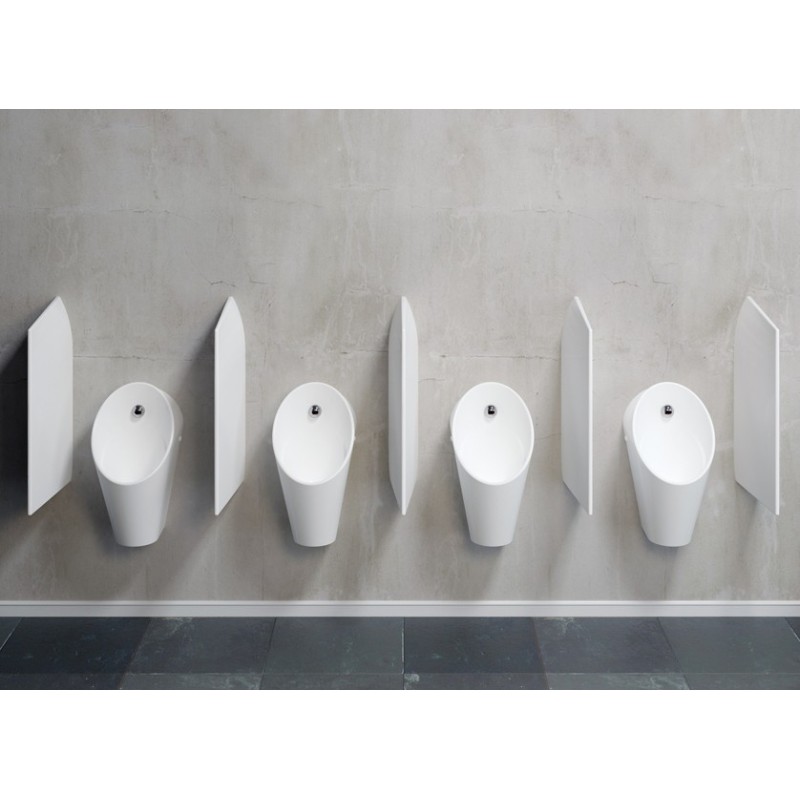

VAO design urinal with automatic flush

Ceramic urinal with infrared sensor VAO

design without flange and concealed s-trap

S14
€645.00 Tax Excl.

Choose a model

CERAMIC URINAL VAO WITH INTEGRATED DETECTOR FOR AN AUTOMATIC FLUSH
A more aesthetic and simplified automatic tap which is integrated in the urinal

- Presence detection at a maximum distance of 0,70 m and a minimum time of 7,5 sec.
- Automatic flush 1L outside of the user range.
- Adjustable automatic flush from 0,5 to 15,5 s.
- Minimum use time before adjustable set-off from 6 to 15 sec.
- Adjustable settings by remote control SLD03 without dismantling the urinal: sensor range - flush time - stop/start).
- Automatic flush after 24 H without being used.
- Pre-rinse activated by remote control.
- Low battery indicator on S14B
- Electronics warrantee 5 years.

utinal mural men automatic VAO cheap Electronic urinal faucet integratic automatic rinse

urinal design without rim automatic vao

OPTIONS:

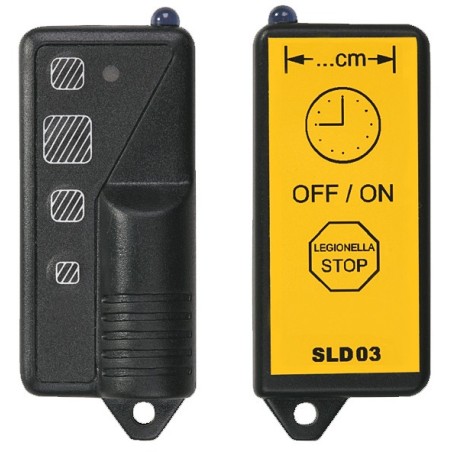

  • Remote control SLD03
  • Transformer box 230/24V by electrical supply SPZ07 (ref. SPZ07)
  • Transformer box 230/24V to supply 1 urinal SPZ06 (ref. SPZ06)
  • Transformer box to supply up to 5 urinal SPZ02 (ref. SPZ02)
  • Transformer box to supply up to 9 urinal SPZ01 (ref. SPZ01)
  • On request rail DIN transformer.
Sensor
Embedded infrared sensor
Sensor range
Power supply
230/24V external transformer or 9V battery
Consumption
5 W on 24 V ; 1,4 W on 9 V
Water inlet
Threaded M1/2''
Evacuation
Ø 50 mm
Pressure
1-6 bars
Flush volume
1 L
Operation settings
Adjustable by SLD03 remote control: Detection sensitivity, flow time, interval rinse, temporary off...
Dimensions
Warranty
Electronics 5 years

CERAMIC URINAL VAO WITH INTEGRATED DETECTOR FOR AN AUTOMATIC FLUSH
A more aesthetic and simplified automatic tap which is integrated in the urinal

- Presence detection at a maximum distance of 0,70 m and a minimum time of 7,5 sec.
- Automatic flush 1L outside of the user range.
- Adjustable automatic flush from 0,5 to 15,5 s.
- Minimum use time before adjustable set-off from 6 to 15 sec.
- Adjustable settings by remote control SLD03 without dismantling the urinal: sensor range - flush time - stop/start).
- Automatic flush after 24 H without being used.
- Pre-rinse activated by remote control.
- Low battery indicator on S14B
- Electronics warrantee 5 years.

utinal mural men automatic VAO cheap Electronic urinal faucet integratic automatic rinse

urinal design without rim automatic vao

OPTIONS:

  • Remote control SLD03
  • Transformer box 230/24V by electrical supply SPZ07 (ref. SPZ07)
  • Transformer box 230/24V to supply 1 urinal SPZ06 (ref. SPZ06)
  • Transformer box to supply up to 5 urinal SPZ02 (ref. SPZ02)
  • Transformer box to supply up to 9 urinal SPZ01 (ref. SPZ01)
  • On request rail DIN transformer.

Sensor
Embedded infrared sensor
Sensor range
Power supply
230/24V external transformer or 9V battery
Consumption
5 W on 24 V ; 1,4 W on 9 V
Water inlet
Threaded M1/2''
Evacuation
Ø 50 mm
Pressure
1-6 bars
Flush volume
1 L
Operation settings
Adjustable by SLD03 remote control: Detection sensitivity, flow time, interval rinse, temporary off...
Dimensions
Warranty
Electronics 5 years
