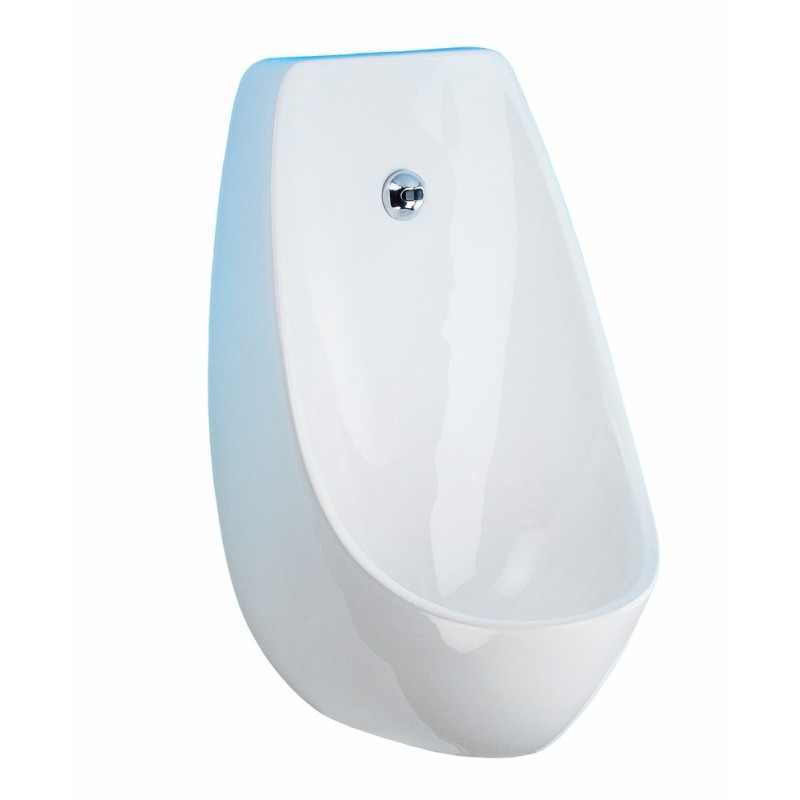

Photo Rimless automatic urinal DOMINO with large pan S17

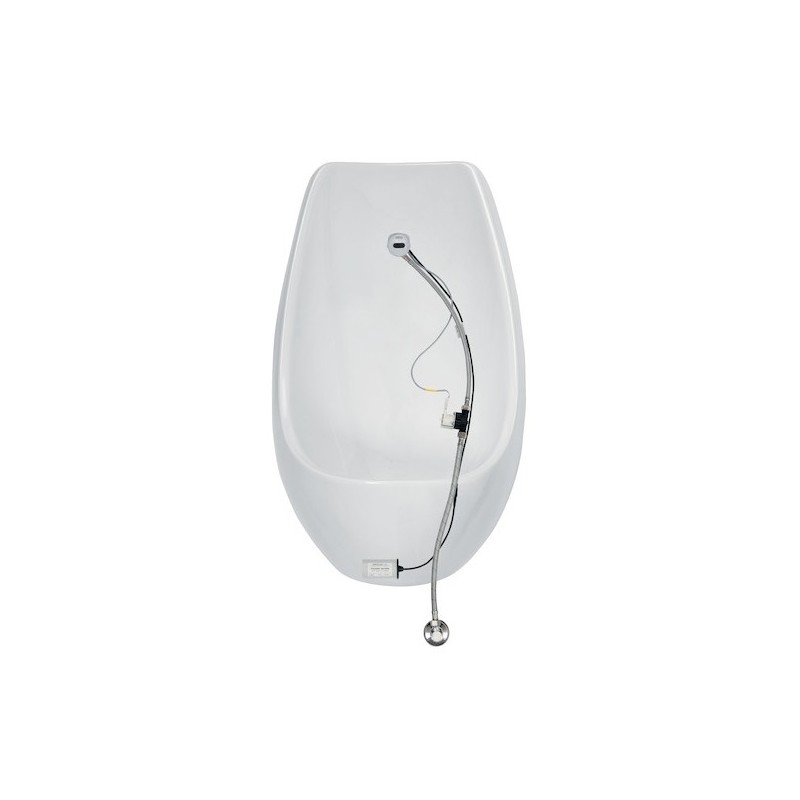

Urinal with infrared detection integrated DOMINO

wide bowl without rim...

Ref. : S17

€655.00 excl. VAT

Tax excluded

Choose a model

Quantity

Ask a question

CERAMIC URINAL DOMINO WITH SENSOR INTEGRATED FOR AUTOMATIC FLUSH

Features:

- Detects when user arrives at a maximum distance of 0,70 m and for a minimum time of 7,5 sec.
- Automatic flush when the user leaves the detection range
- Adjustable flush time from 0,5 to 15,5 sec.
- Minimum use before triggering adjustable from 6 to 15 sec.
- Adjustable settings by SP03 remote control (no urinal dismounting)
- ON / OFF function
- 24 H anti-legionella periodical rinse
- Low battery warning on S17B
- S-trap and plugs not included
- 5 years electronics warrantee

DOMINO dimensional drawing

OPTIONS:

Remote control SLD03
Transformer box 230/24V by electrical supply SPZ07 (ref. SPZ07)
Transformer box 230/24V to supply 1 urinal SPZ06 (ref. SPZ06)
Transformer box to supply up to 5 urinals SPZ02 (ref. SPZ02)
Transformer box to supply up to 9 urinals SPZ01 (ref. SPZ01)
On request rail DIN transformer

Sensor: Infrared detection embedded
Sensor range
Electrical supply: External transformer 230/24 V or battery 9 V
Consumption: 5 W on 24 V ; 1,4 W on 9 V
Water inlet: Threaded M1/2''
Evacuation: Ø 40 mm
Pressure: 1-6 bars
Flow rate: 12 LPM.
Operation settings: Adjustable by remote control SLD03 : Detection sensitivity, flow time, interval rinse, temporary off...
Dimensions
Warranty: Electronic 5 years
