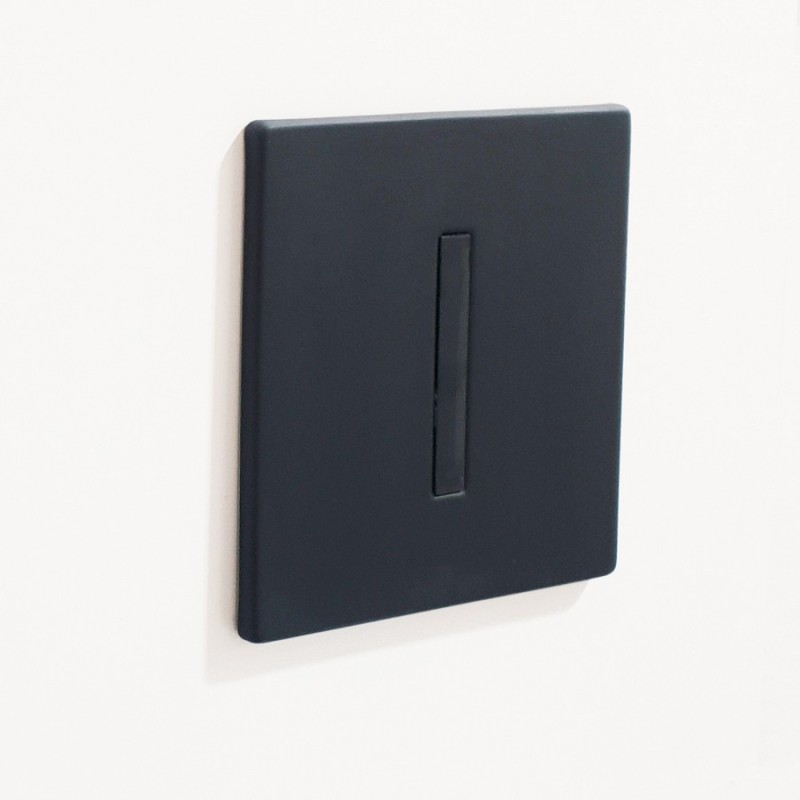

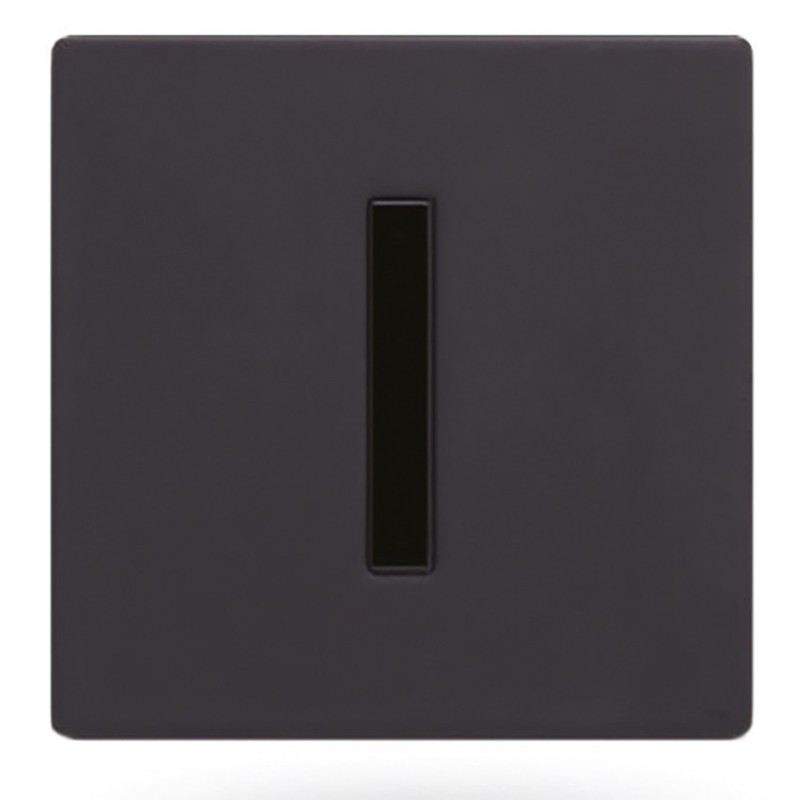

Recessed stainless steel automatic urinal faucet I-CARO
Automatic I-CARO stainless-steel urinal flush valve, concealed version. Touchless infrared detection for optimal hygiene and controlled water consumption. Battery or mains powered – compatible with all brands. Ideal for public/restroom facilities.
I-Caro vandal-resistant concealed electronic valve for automatic flushing of standard urinals or siphonic-action urinals.
Vandal-resistant front panel in AISI 316 stainless steel.
The I-Caro automatic urinal flush valve is designed for concealed installation, and its compact format allows discreet integration in all types of professional washrooms.
Infrared sensor detection ensures touch-free activation, improving hygiene and everyday user comfort.
Power supply can be mains (AC) or battery, offering great flexibility for both new builds and renovations.
For aesthetics, I-Caro is available with a brushed stainless-steel front panel or in matte black / matte white finish, to match the décor of the premises.
A reliable and durable solution, particularly suited to high-traffic areas.
Key benefits
-
Comfort: touch-free operation and elimination of unpleasant odors (automatic flushing).
-
Durable: built for intensive use and for locations exposed to vandalism.
-
Total hygiene: helps prevent the spread of germs via hands.
-
Water savings: only the urinal that has been used is flushed.
- Easy installation

- Hygienic rinse after 24 hours of non-use (keeps water in the trap, prevents freezing, helps limit bacterial growth).
Can be disabled via remote control.
Available integrated on a urinal carrier frame.
- Sensor
- Infrared
- Power supply
- 9V battery
IP68 230/9V transformer - Solenoid valve
- Recessed solenoid valve box with stopcock (flow rate settings) and filter
- Material
- AISI 316 Stainless steel
- Stopcock
- Embedded (allows flow rate adjustment)
- Water inlet
- M1/2'' or 3/4'' threaded
- Water outlet
- F1/2'' threaded
- Pressure
- 0.5 - 8 bars
- Operation settings
- Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
- Dimensions
- L140 x P69 x H140 mm (encastrement P63 mm)
- Warranty
- 3 years. CE.
I-Caro vandal-resistant concealed electronic valve for automatic flushing of standard urinals or siphonic-action urinals.
Vandal-resistant front panel in AISI 316 stainless steel.
The I-Caro automatic urinal flush valve is designed for concealed installation, and its compact format allows discreet integration in all types of professional washrooms.
Infrared sensor detection ensures touch-free activation, improving hygiene and everyday user comfort.
Power supply can be mains (AC) or battery, offering great flexibility for both new builds and renovations.
For aesthetics, I-Caro is available with a brushed stainless-steel front panel or in matte black / matte white finish, to match the décor of the premises.
A reliable and durable solution, particularly suited to high-traffic areas.
Key benefits
-
Comfort: touch-free operation and elimination of unpleasant odors (automatic flushing).
-
Durable: built for intensive use and for locations exposed to vandalism.
-
Total hygiene: helps prevent the spread of germs via hands.
-
Water savings: only the urinal that has been used is flushed.
- Easy installation

- Hygienic rinse after 24 hours of non-use (keeps water in the trap, prevents freezing, helps limit bacterial growth).
Can be disabled via remote control.
Available integrated on a urinal carrier frame.
- Sensor
- Infrared
- Power supply
- 9V battery
IP68 230/9V transformer - Solenoid valve
- Recessed solenoid valve box with stopcock (flow rate settings) and filter
- Material
- AISI 316 Stainless steel
- Stopcock
- Embedded (allows flow rate adjustment)
- Water inlet
- M1/2'' or 3/4'' threaded
- Water outlet
- F1/2'' threaded
- Pressure
- 0.5 - 8 bars
- Operation settings
- Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
- Dimensions
- L140 x P69 x H140 mm (encastrement P63 mm)
- Warranty
- 3 years. CE.
