Recessed stainless steel automatic urinal faucet I-CARO

Name: Recessed stainless steel automatic urinal faucet I-CARO
SKU: DUS-50

in stainless steel 140x140 mm robust and design

Réf. : DUS-50

€305.00 Tax Excl.

Choose a model

Poser une question

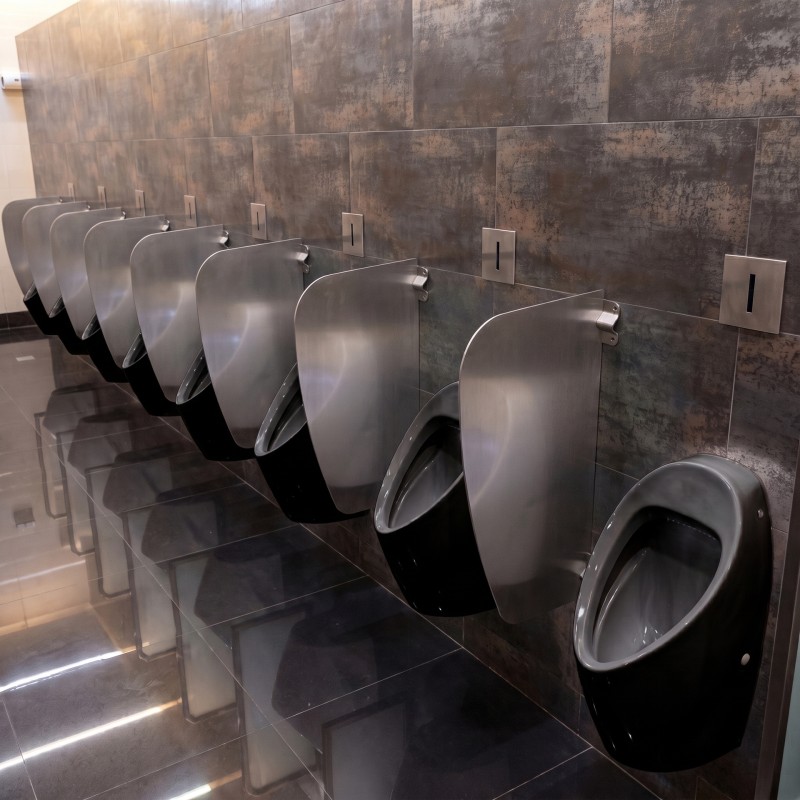

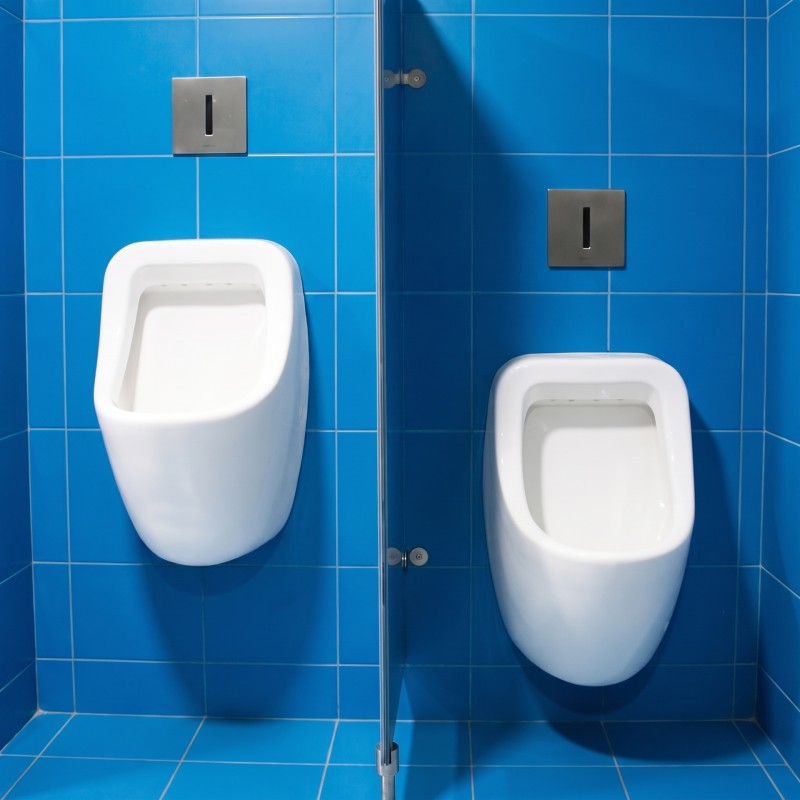

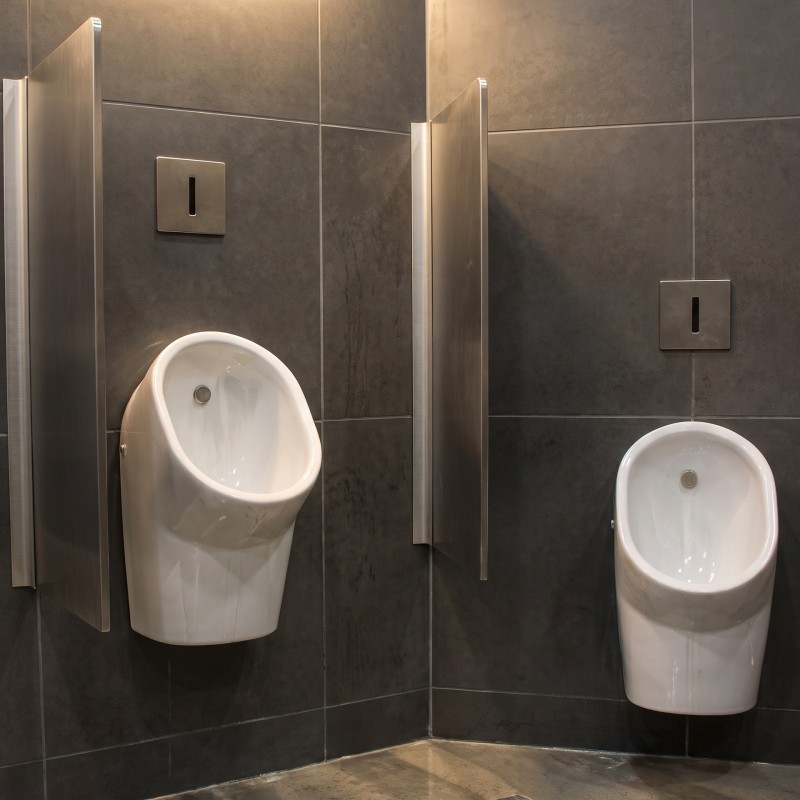

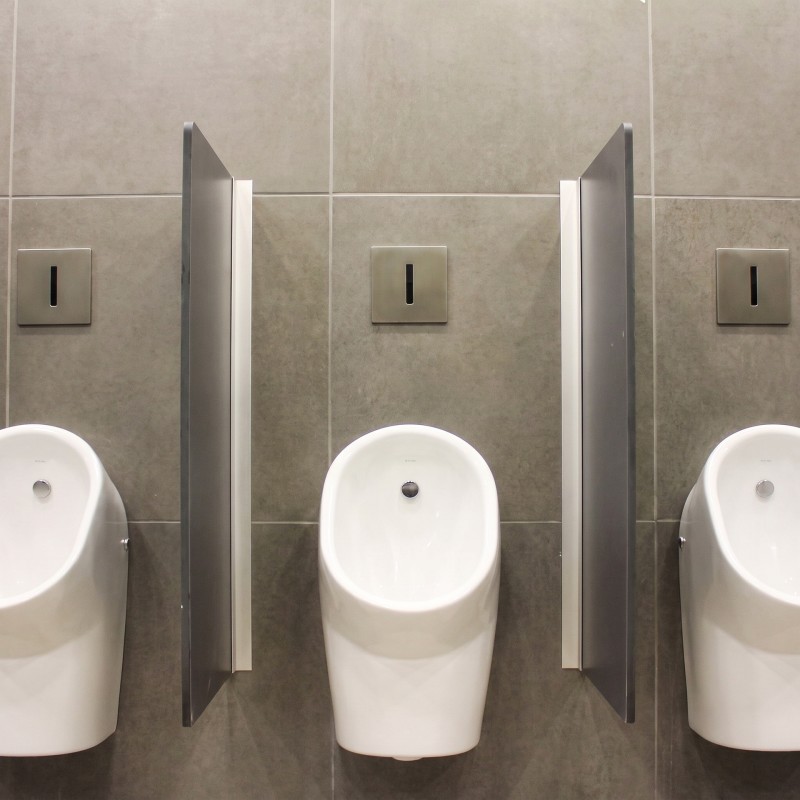

Recessed electronic faucet vandal-proof in stainless steel I-Caro for an automatic flush ordinary urinal or with a s-trap system.

• Comfort: touch free manual functioning and unpleasant odour elimination (automatic rinse).
• Robust for intensive use and places exposed to vandalism.
• Total hygiene: avoid germs from spreading by hands.
• Saves on water: only the used urinal is rinsed.
• Easy installation

Electronic urinal faucet stainless steel I-caro

Vandal-prof in brushed stainless steel type AISI 316

- Anti-legionella periodical rinse (keeps water in the siphon, to prevent from freezing, fights against bacteria from spreading). Can be deactivated by remote control

urinal support frame electronic faucet icaro Available with urinal wall support frame

OPTIONS:

Remote control RES-31
Matt black or white finish - Ref. DUS-50-N, DUS-50-B (minimum quantity)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)
Integrated on urinal wall support frame

Sensor: Infrared
Power supply: 230/9V IP68 ransformer or 9V battery
Solenoid valve: Recessed solenoid valve box with stopcock (flow rate settings) and filter
Material: AISI 316 brushed stainless steel finish
Stopcock: Embedded (allows flow rate adjustment)
Water inlet: M1/2'' or 3/4'' threaded
Water outlet: F1/2'' threaded
Pressure: 0.5 - 8 bars
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Dimensions: L140 x P69 x H140 mm (encastrement P63 mm)
Warranty: 3 years. CE.

DUS-51-2D-ftl-view (dwg)

DUS-51-3D (dwg)

DUS-51 (ifc)

DUS-51 (obj)

DUS-50-51_Technical-sheet (pdf)

Recessed electronic faucet vandal-proof in stainless steel I-Caro for an automatic flush ordinary urinal or with a s-trap system.

Available with urinal wall support frame

OPTIONS:

Remote control RES-31
Matt black or white finish - Ref. DUS-50-N, DUS-50-B (minimum quantity)
230/12V IP 68 transformer to supply from 1 to 4 faucets (ref. RES-294)
Junction box 230/12V to supply up to 10 faucets (ref. RES-295)
Integrated on urinal wall support frame

Sensor: Infrared
Power supply: 230/9V IP68 ransformer or 9V battery
Solenoid valve: Recessed solenoid valve box with stopcock (flow rate settings) and filter
Material: AISI 316 brushed stainless steel finish
Stopcock: Embedded (allows flow rate adjustment)
Water inlet: M1/2'' or 3/4'' threaded
Water outlet: F1/2'' threaded
Pressure: 0.5 - 8 bars
Operation settings: Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Dimensions: L140 x P69 x H140 mm (encastrement P63 mm)
Warranty: 3 years. CE.
