I-CARO electronic recessed urinal flush valve
Urinal flush valve dimensions
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
I-CARO electronic recessed urinal flush valve
Urinal flush valve dimensions

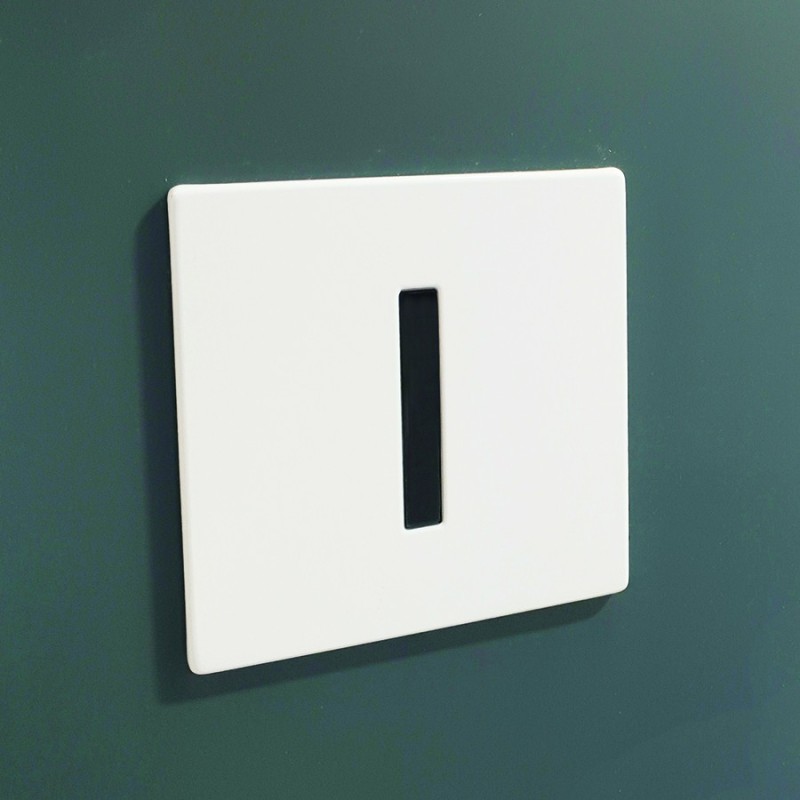

Recessed stainless steel automatic urinal faucet I-CARO

Automatic I-CARO stainless-steel urinal flush valve, concealed version. Touchless infrared detection for optimal hygiene and controlled water consumption. Battery or mains powered – compatible with all brands. Ideal for public/restroom facilities.

DUS-50-B
€390.00 Tax Excl.

Finish

I-Caro vandal-resistant concealed electronic valve for automatic flushing of standard urinals or siphonic-action urinals.
Vandal-resistant front panel in AISI 316 stainless steel.

The I-Caro automatic urinal flush valve is designed for concealed installation, and its compact format allows discreet integration in all types of professional washrooms.

Infrared sensor detection ensures touch-free activation, improving hygiene and everyday user comfort.

Power supply can be mains (AC) or battery, offering great flexibility for both new builds and renovations.

For aesthetics, I-Caro is available with a brushed stainless-steel front panel or in matte black / matte white finish, to match the décor of the premises.

A reliable and durable solution, particularly suited to high-traffic areas.

Key benefits

  • Comfort: touch-free operation and elimination of unpleasant odors (automatic flushing).

  • Durable: built for intensive use and for locations exposed to vandalism.

  • Total hygiene: helps prevent the spread of germs via hands.

  • Water savings: only the urinal that has been used is flushed.

  • Easy installation

Electronic urinal faucet stainless steel I-caro


- Hygienic rinse after 24 hours of non-use (keeps water in the trap, prevents freezing, helps limit bacterial growth).
  Can be disabled via remote control.

urinal support frame electronic faucet icaro Available integrated on a urinal carrier frame.

OPTIONS:

Sensor
Infrared
Power supply
9V battery
IP68 230/9V transformer
Solenoid valve
Recessed solenoid valve box with stopcock (flow rate settings) and filter
Material
AISI 316 Stainless steel
Stopcock
Embedded (allows flow rate adjustment)
Water inlet
M1/2'' or 3/4'' threaded
Water outlet
F1/2'' threaded
Pressure
0.5 - 8 bars
Operation settings
Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Dimensions
L140 x P69 x H140 mm (encastrement P63 mm)
Warranty
3 years. CE.

I-Caro vandal-resistant concealed electronic valve for automatic flushing of standard urinals or siphonic-action urinals.
Vandal-resistant front panel in AISI 316 stainless steel.

The I-Caro automatic urinal flush valve is designed for concealed installation, and its compact format allows discreet integration in all types of professional washrooms.

Infrared sensor detection ensures touch-free activation, improving hygiene and everyday user comfort.

Power supply can be mains (AC) or battery, offering great flexibility for both new builds and renovations.

For aesthetics, I-Caro is available with a brushed stainless-steel front panel or in matte black / matte white finish, to match the décor of the premises.

A reliable and durable solution, particularly suited to high-traffic areas.

Key benefits

  • Comfort: touch-free operation and elimination of unpleasant odors (automatic flushing).

  • Durable: built for intensive use and for locations exposed to vandalism.

  • Total hygiene: helps prevent the spread of germs via hands.

  • Water savings: only the urinal that has been used is flushed.

  • Easy installation

Electronic urinal faucet stainless steel I-caro


- Hygienic rinse after 24 hours of non-use (keeps water in the trap, prevents freezing, helps limit bacterial growth).
  Can be disabled via remote control.

urinal support frame electronic faucet icaro Available integrated on a urinal carrier frame.

OPTIONS:

Sensor
Infrared
Power supply
9V battery
IP68 230/9V transformer
Solenoid valve
Recessed solenoid valve box with stopcock (flow rate settings) and filter
Material
AISI 316 Stainless steel
Stopcock
Embedded (allows flow rate adjustment)
Water inlet
M1/2'' or 3/4'' threaded
Water outlet
F1/2'' threaded
Pressure
0.5 - 8 bars
Operation settings
Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
Dimensions
L140 x P69 x H140 mm (encastrement P63 mm)
Warranty
3 years. CE.
