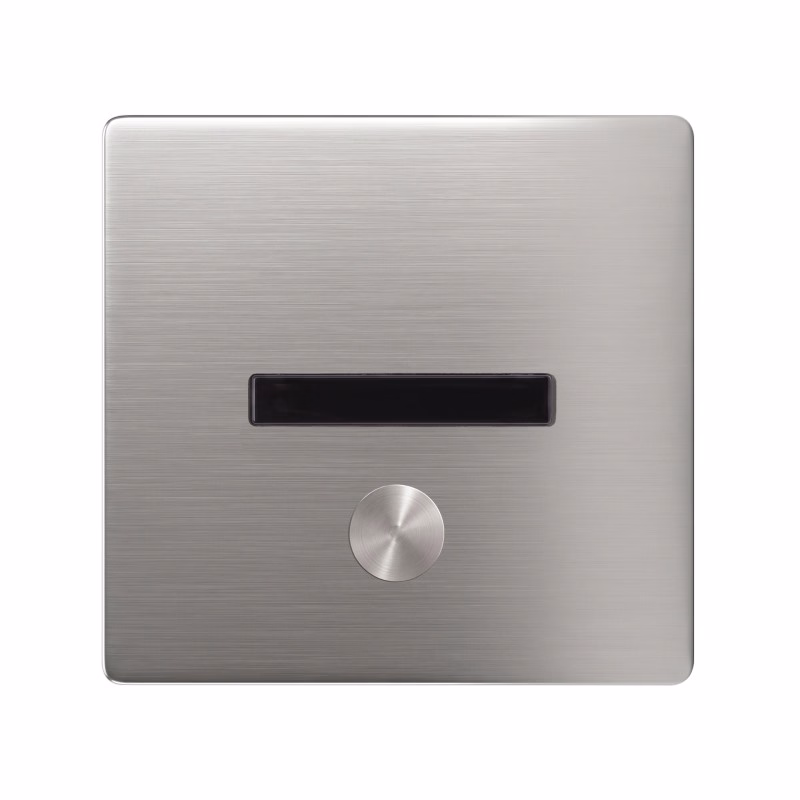

Recessed automatic or manual urinal faucet I-CARO
Optional trigger by sensitive Piezo button
Recessed electronic faucet in stainless steel for automatic rinse and trigger by sensor detection or manual button.
Infrared detection or optional sensitive Piezo button (with invisible mechanism), to be activated with a simple touch.
Easy to clean: to avoid dirt and clogs in the urinal pipes, a rinse of 2-3 minutes is activated by touching the button twice.
Anti-vandal in brushed stainless steel type AISI 316 (marine quality for humid places, better resistance to corrosion).
Detection length, delay before trigger, flush volume, hygienic flush… adjustable by remote control RES-31.
Distance detection adjustable manually .
- Automatic rinse in case the urinal not being used for 24 H (s-trap maintained in water, reduces freeze risks, fights against bacteria from spreading).
- Light indicating low battery, on battery version.
- Sensor
- Piezo sensor
Infrared - Power supply
- 9V battery
IP68 230/9V transformer - Solenoid valve
- Recessed solenoid valve box with stopcock (flow rate settings) and filter
- Material
- AISI 316 stainless steel
- Finish
- Brushed
- Stopcock
- Embedded (allows flow rate adjustment)
- Water inlet
- 1/2"
3/4" - Water outlet
- F1/2'' threaded
- Pressure
- 0.5 - 8 bars
- Operation settings
- Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...

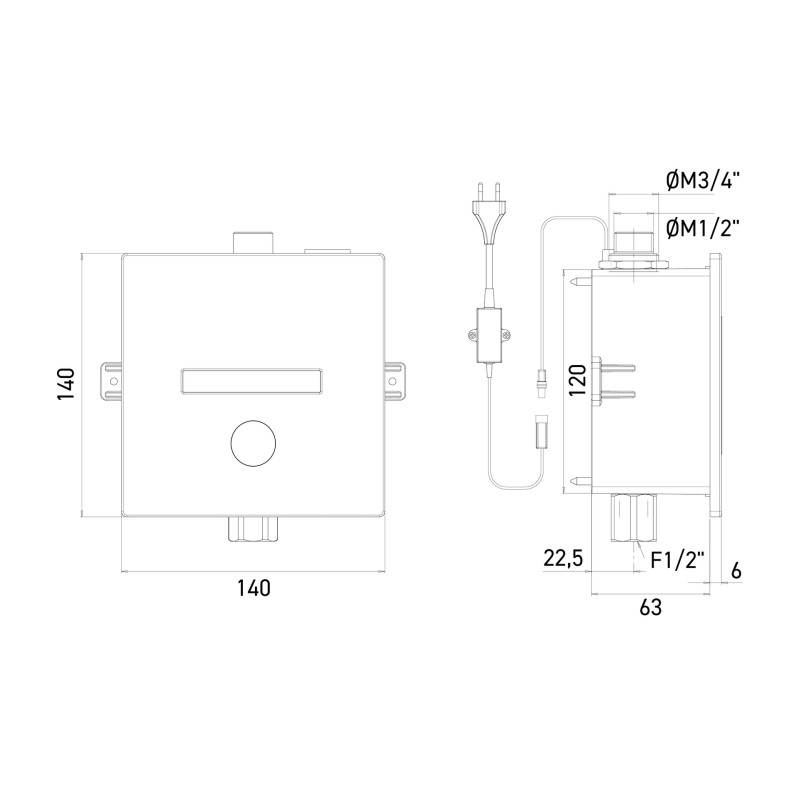

- Dimensions
- L140 x P69 x H140 mm (encastrement P63 mm)
- Warranty
- 3 years
- Certification
- CE
- Connection gender
- Male
- Water inlet details
- M1/2'' or 3/4'' threaded
Recessed electronic faucet in stainless steel for automatic rinse and trigger by sensor detection or manual button.
Infrared detection or optional sensitive Piezo button (with invisible mechanism), to be activated with a simple touch.
Easy to clean: to avoid dirt and clogs in the urinal pipes, a rinse of 2-3 minutes is activated by touching the button twice.
Anti-vandal in brushed stainless steel type AISI 316 (marine quality for humid places, better resistance to corrosion).
Detection length, delay before trigger, flush volume, hygienic flush… adjustable by remote control RES-31.
Distance detection adjustable manually .
- Automatic rinse in case the urinal not being used for 24 H (s-trap maintained in water, reduces freeze risks, fights against bacteria from spreading).
- Light indicating low battery, on battery version.
- Sensor
- Piezo sensor
Infrared - Power supply
- 9V battery
IP68 230/9V transformer - Solenoid valve
- Recessed solenoid valve box with stopcock (flow rate settings) and filter
- Material
- AISI 316 stainless steel
- Finish
- Brushed
- Stopcock
- Embedded (allows flow rate adjustment)
- Water inlet
- 1/2"
3/4" - Water outlet
- F1/2'' threaded
- Pressure
- 0.5 - 8 bars
- Operation settings
- Adjustable by RES-31 remote control: sensor range, flow time, periodic rinse, temporary stop...
- Dimensions
- L140 x P69 x H140 mm (encastrement P63 mm)
- Warranty
- 3 years
- Certification
- CE
- Connection gender
- Male
- Water inlet details
- M1/2'' or 3/4'' threaded
