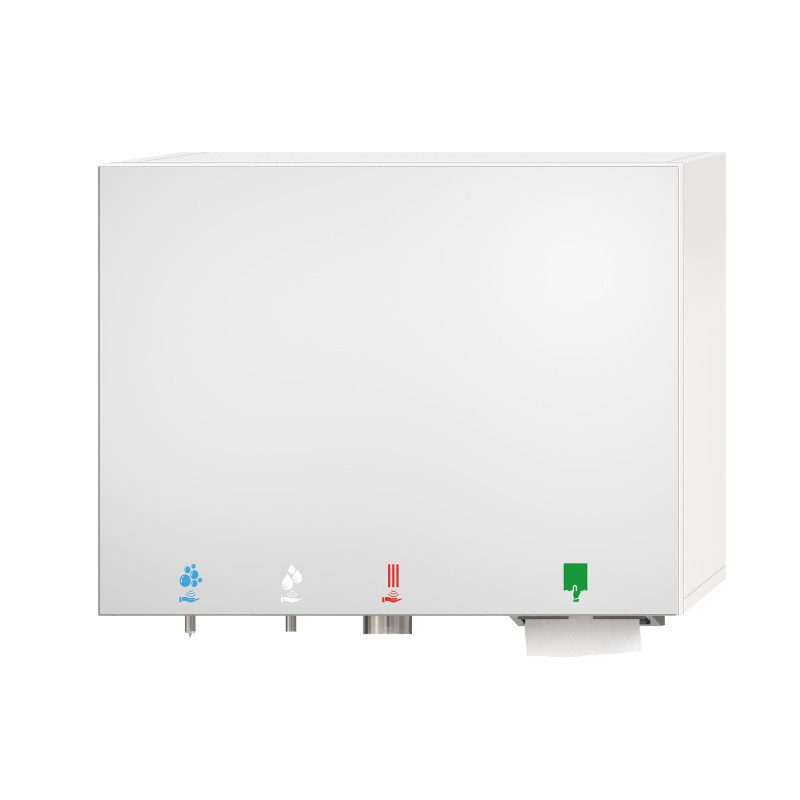

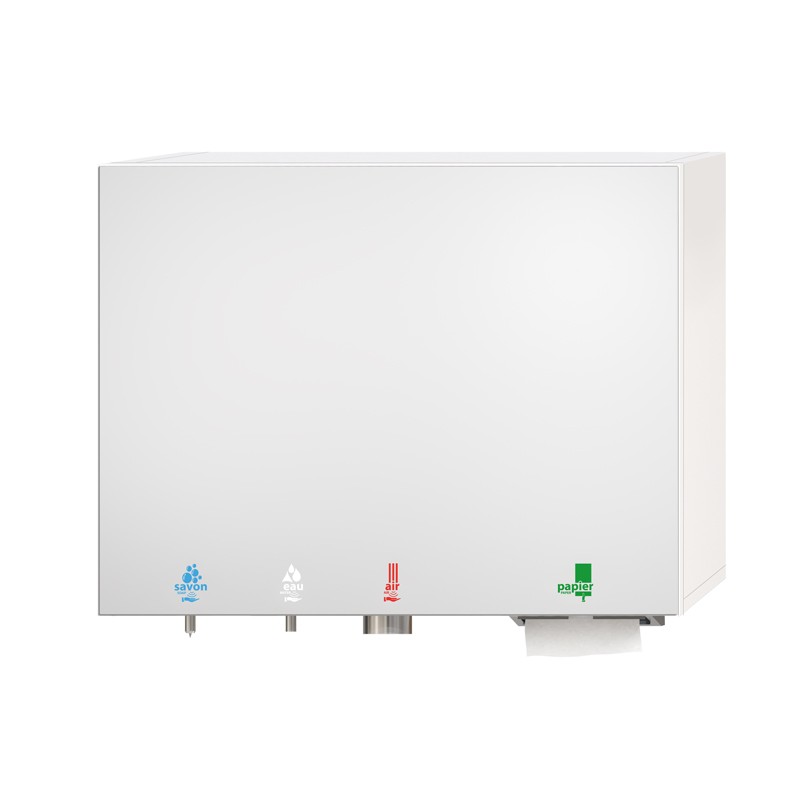

Photo HYFLO 5 in 1 mirror - soap - water - air - paper cabinet RES-854

HYFLO 5 in 1 "mirror-soap-water-air-paper" cabinet, width 900 mm

All in one and ready to install HYFLO mirror cabinet, width 900 mm, with integrated soap dispenser, automatic tap, hand dryer and hand paper towel dispenser

Ref. : RES-854

€2,860.00 excl. VAT

Tax excluded

Soap version

Option led strip

Option fixed impost Height 1000 mm

Quantity

Ask a question

HYFLO munltifunction mirror cabinet to mount above a sink including an automatic soap dispenser, liquid or foam, electronic water tap with a thermostatic pre-mixer, high speed hand dryer, sheet-by-sheet paper towel dispenser, and mirror with illuminated pictograms.

Hand paper towels or hand dryer by pulsed air depending on the users preference or needs, to offer a premium service.

By its simple shape in the current interior design tendency and its concealed equipment behind the mirror, the 5 in 1 cabinet limits space and is integrated perfectly by minimizing visual impact.

Hygiene: the functions are automatically activated when the users hands are placed in the detection area and stop once the hands are removed. Complete hand washing cycle without needing to move, this contributes to clean sanitary spaces (avoids dirty taps; soap marks, wet floors...).

Easy to install: cabinet to be set-up on a heavy duty stainless steel suspension rail, only one electric plug, the water to be connected to the pre-mixer and everything becomes operational!

7L soap tank: easy to access when needing to be filled (foam or liquid soap).

Easy soap service:
- without any lid to unscrew, simple flap
- without any pipes, avoids soap from leaking
- large bottle neck, filled without a funnel
- grand capacity 7L, reduces interventions

Components assembled on a heavy duty stainless steel rugged plate 1,2 mm thickness.

STAINLESS STEEL PLATE

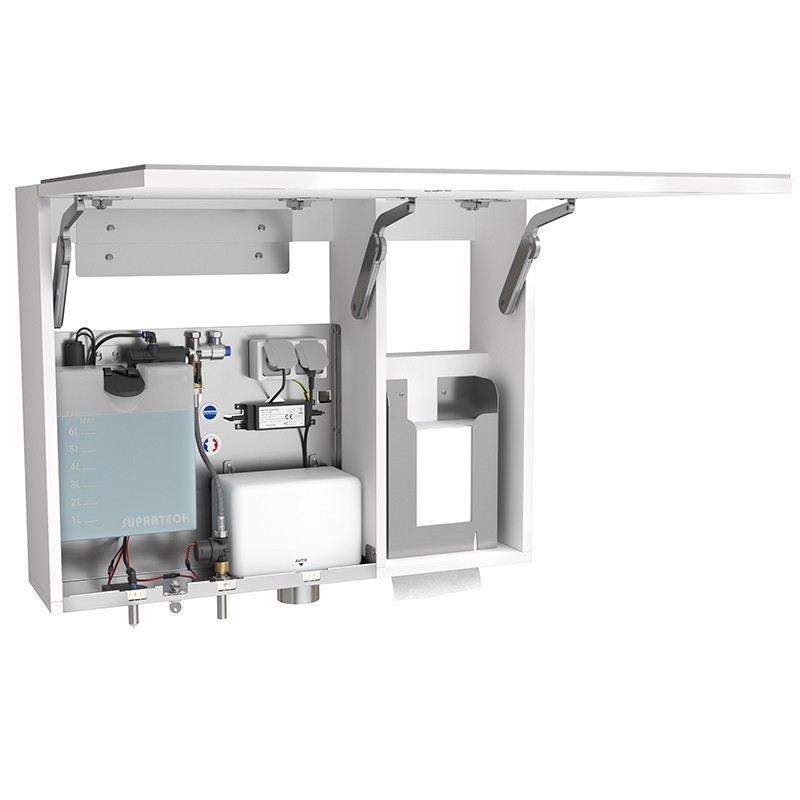

Stainless steel plate with integrated components

Optimized maintenance: all components (solenoid valve, pump, sensors, transformer, stopcock, mixing valve…) easy to access for a quick and easy service.

LED icons (colours of choice between blue, white, red or green), visible vertical stainless steep spouts and nozzle to indicate hand placement.

Key lock (with automatic closure).

CHARACTERISTICS

Cabinet made out of 19 mm thick white water-resistant melamine panel, 1 mm thick white PVC-coated edges,
cabinet base and door in rot-proof 19 mm white komacel. 6 mm thick mirror with backing film.
Lift-up door with 2 stay supports and 2 concealed hinges.
Components mounted on a robust 1.2 mm thick stainless steel plate. Key lock and automatic closure.
Illuminated pictograms (color selection: blue, white, red, or green), french/english inscription, logo for hand detection from below,
vertical spouts and visible stainless steel nozzle to indicate hand placement in public spaces and to facilitate use.
Soap dispenser operates with peristaltic pump for precise soap dosage. Closes automatically without dripping.
7L soap tank easily accessible for filling, liquid or foam soap.
Liquid soap viscosity 100-3800 cPs, foam soap viscosity 0-100 cPs. PH 5.5 to 8.5.
F3/8” thermostatic mixing valve for tempered water (without on demand).
Vertical faucet with self-adjusting infrared detection, 6 LPM flow rate (1,9 LPM on demand).
Security stop after 90 seconds without interruption. Water pressure: 0.5-8 bars. Periodic hygiene rinse to prevent Legionnaires’ disease.
High speed hand dryer 920W nominal ouput (mini. setting 350W). Hot/ambiant air switch. White finished steel cover.
Hands dried in 9 seconds (according to UL PCR hand dryer standard). Adjustable airflow and sound level (67.4-71.2 dB at 1m).
Stainless steel top-filling paper towel dispenser. Approximate capacity: 500 towels.
CE. 3-year warranty.
Dimensions: W900 x D256 x H700 mm.
This concept is flexible in terms of dimensions, finishes and integrated components, please contact us.

New or renovated installation

OPTIONS :

Water flow limited 1,9 LPM.
Remote control RES-30 for water tap and soap dispenser settings
White LEDs only
Visual low soap level indicator
Hand dryer with HEPA filter and brushless motor
Magnetic lock (without key)

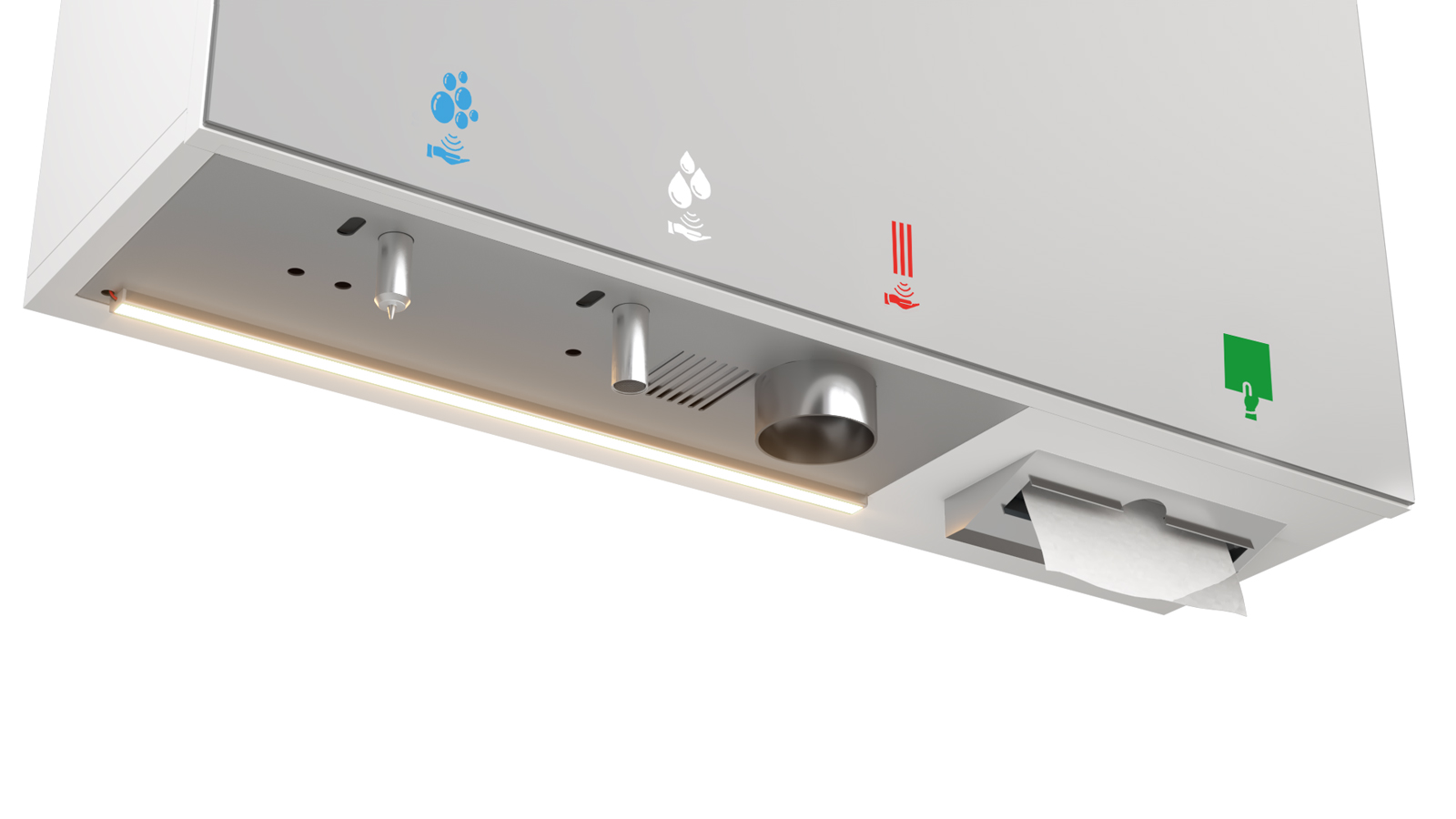

LED strip on top and/or bottom of the cabinet, with or without motion sensor
Top mirror casing H300 mm for total mirror unit height 1000mm (Ref. MH)
Paper towel dispenser
Choose your modules
Cabinet color finish

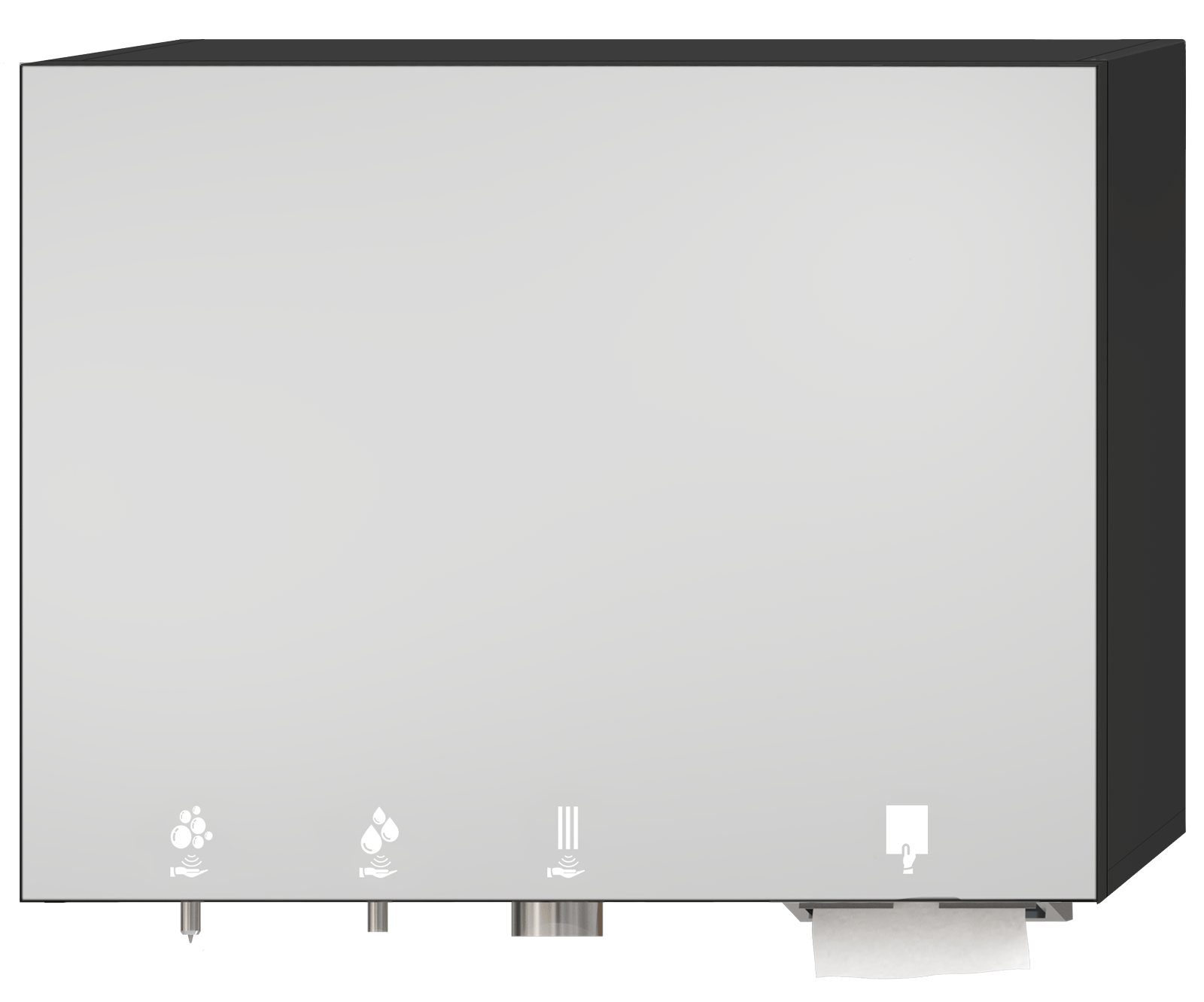

Module miroir HYFLO pictogrammes leds blanches

Module miroir HYFLO pictogrammes leds blanches sans texte

Material: 19mm white hydro melamine board with 1mm black PVC veneer edges
Supporting plate for componants in stainless steel AISI304 thickness 1,2 mm
Underside and door in white 19 mm Komacel
Mirror: 6 mm thick clear mirror with shatterproof film backing, polished edges
Electrical supply: 230 V 50/60Hz. 0.92 KW
Electrical insulation: Class I
Water supply: Cold and hot water
Water inlet: F 3/8''
Fixation: Wall-mounted on stainless steel rails
Dimensions: W900 x D256 x H700
Warranty: 3 years
