Muti-feed kit for automatic soap dispensers

Multi-feed kit for liquid or foam soap dispensers

Simple and quick to install, the kit helps maintain clean and neat restrooms in an automated environment, while preventing the spread of germs

It allows the simultaneous supply of up to 6 soap dispensers from a supplied 6 L central tank.
Maximum 3 m distance between the tank and pump for the transformer version (battery operated = max. 1.50 m). Max. distance between pump and spout 1.40 m.

Top-fill mechanism with chrome-plated cap = easy access, convenient to fill and no need to handle the bottle below the washbasin.

Suitable for wall-mounted or deck-mounted soap dispensers.

• Easy installation


• High quality PVC tubes


• 6L tank


• Up to 6 dispensers

Optional LED soap level indicator: green/orange/red or lights up only to indicate that refilling is to anticipated (to be specified when ordering).

Slotted cap		Hexagonal screw cap		Level indicator cap

Collective tank also available with filling directly into the 6L tank (ref. RES-791) under the washbasin, in a mirrored cabinet above the washbasin, in a technical room, etc.

Tank up to 60L as an option.

Top filling		Top filling, level indicator light		6 L tank refill

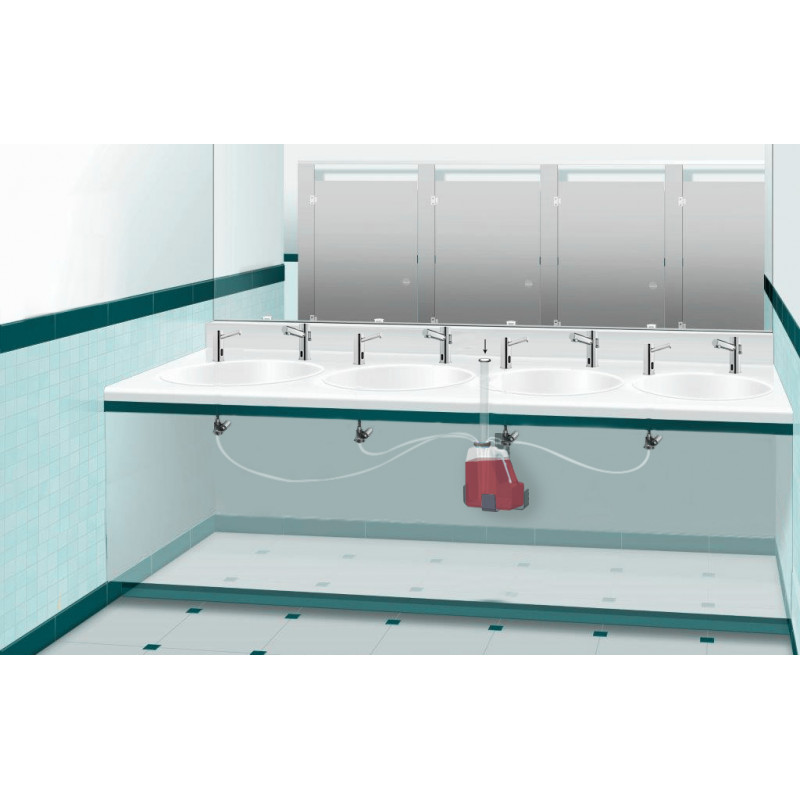

Example of wall mounting with technical gallery,
front filling RES-790(L) or rear filling RES-791

LED level indicator (green- orange - red)
