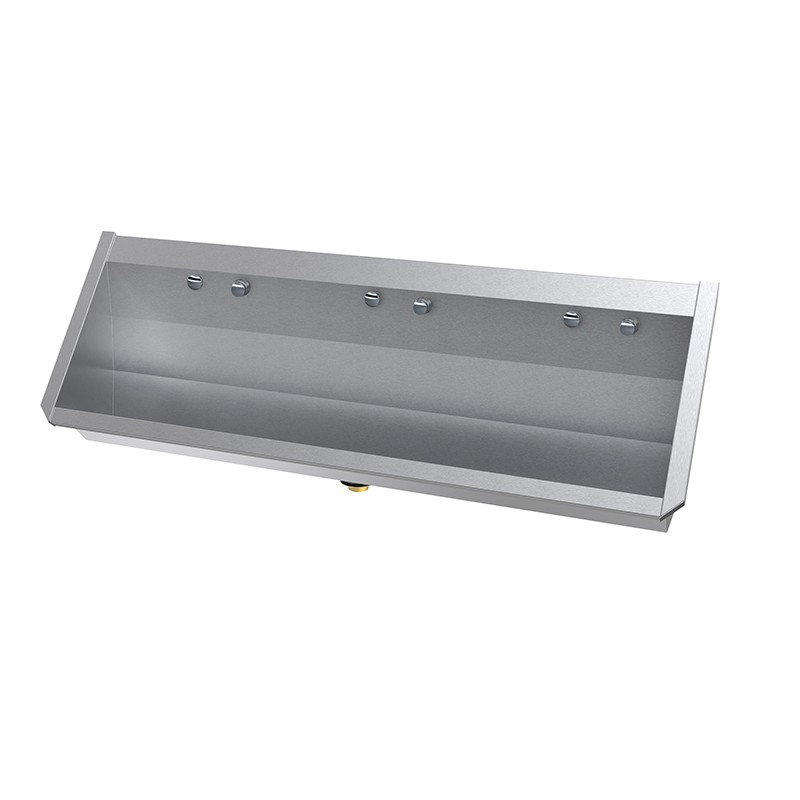

Wall-mounted communal stainless steel urinal with integrated timed faucets
With individual flushes to save water and an integrated plumbing system, there's no need for flush-mounted installation work
URCO-1-120-M3
€1,972.00 excl. VAT
Tax excluded
Wall-mounted communal stainless steel urinal with integrated vandal-proof timed faucets, designed for public spaces.
Individual flushing for 2 to 5 users, with integrated push-button faucets.
Available in custom sizes and perfectly suited for serial installation.
Welded inside, without grooves to avoid rusting or dirt build-up.
Inner angles greater than 90° along the length of the urinal to facilitate cleaning and prevent stagnant liquid inside or outside the urinal.
Plug & Play: built-in piping (multilayer pipe) and pre-connected within the urinal for quick and easy installation.
Threaded water inlet F1/2" on T-connector.
Closed pipe on the left side as standard with M1/2" plug; removing the plug allows serial connection of urinals.
Perforated embossed bottom drainage, 1 1/2" drain provided.
Easy and quick installation with 4 fixing points.

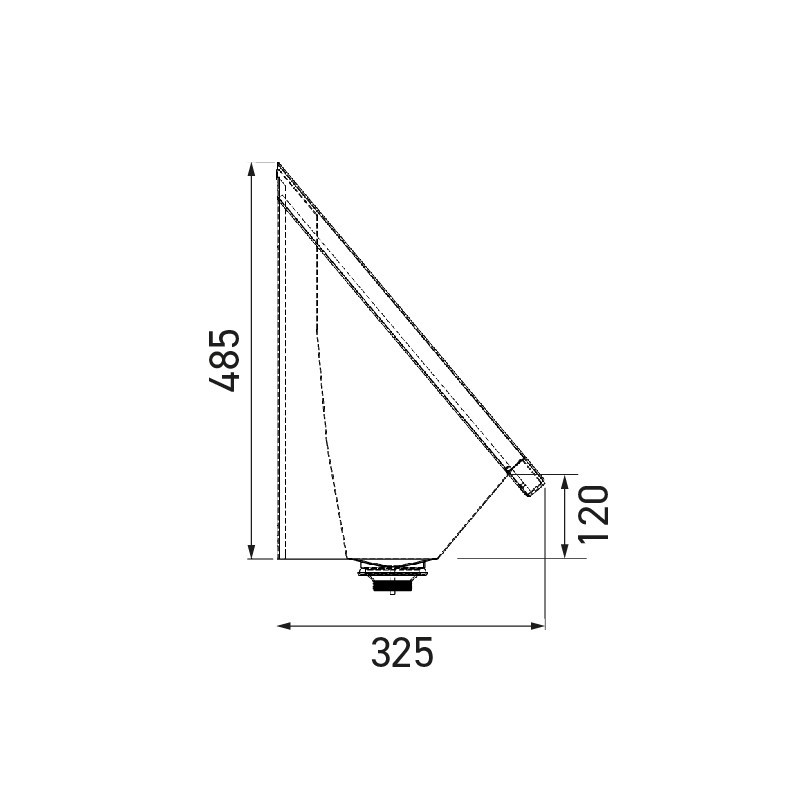

Dimensions: D325 x H485 x W1200 à 3000 mm.
10 year warranty
OPTIONS:

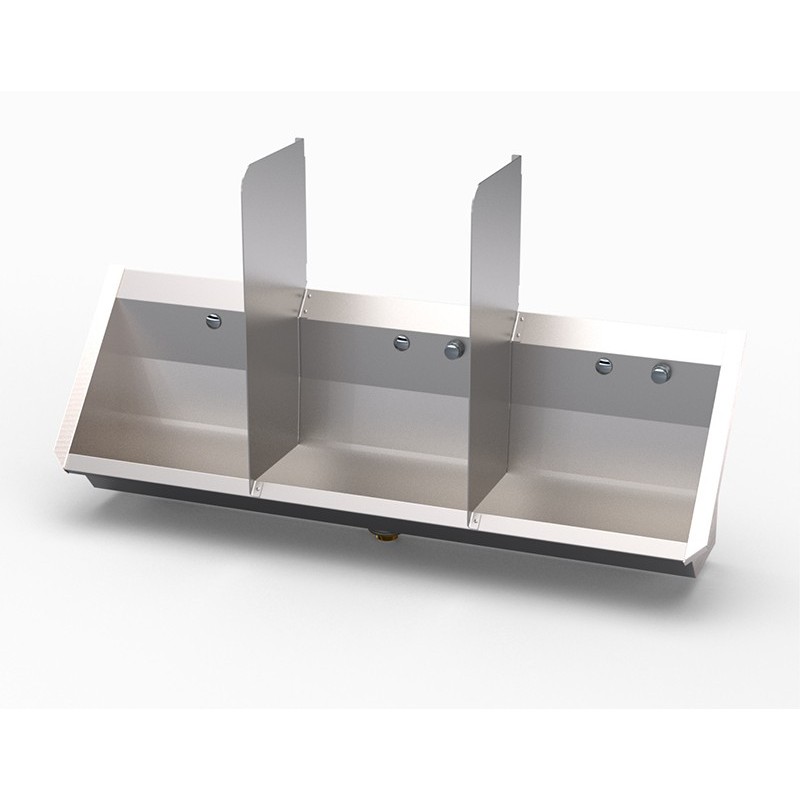

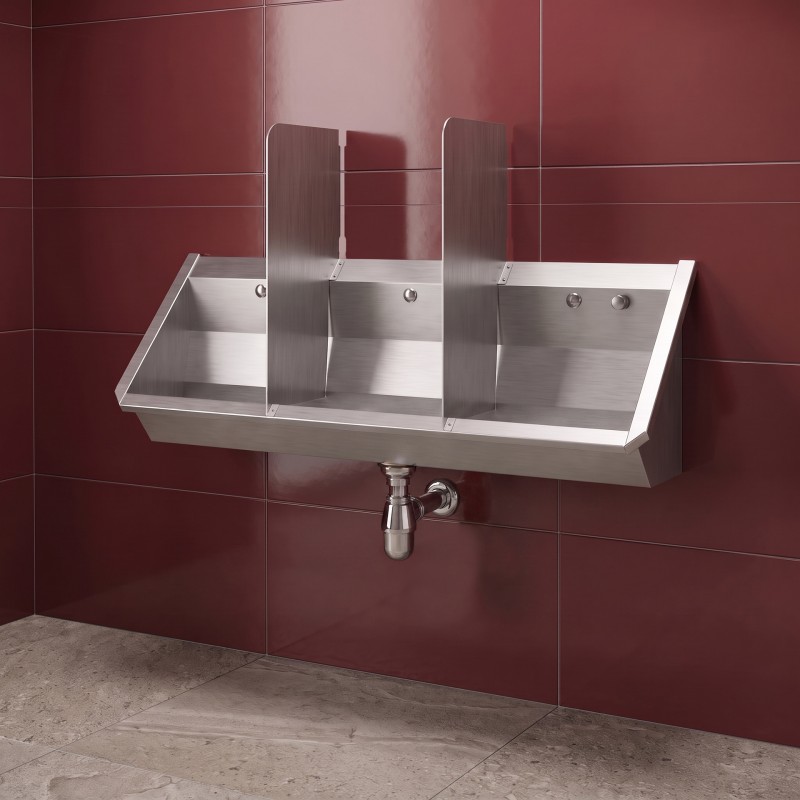

- Stainless steel divider (Ref. URCO-1-SEP)

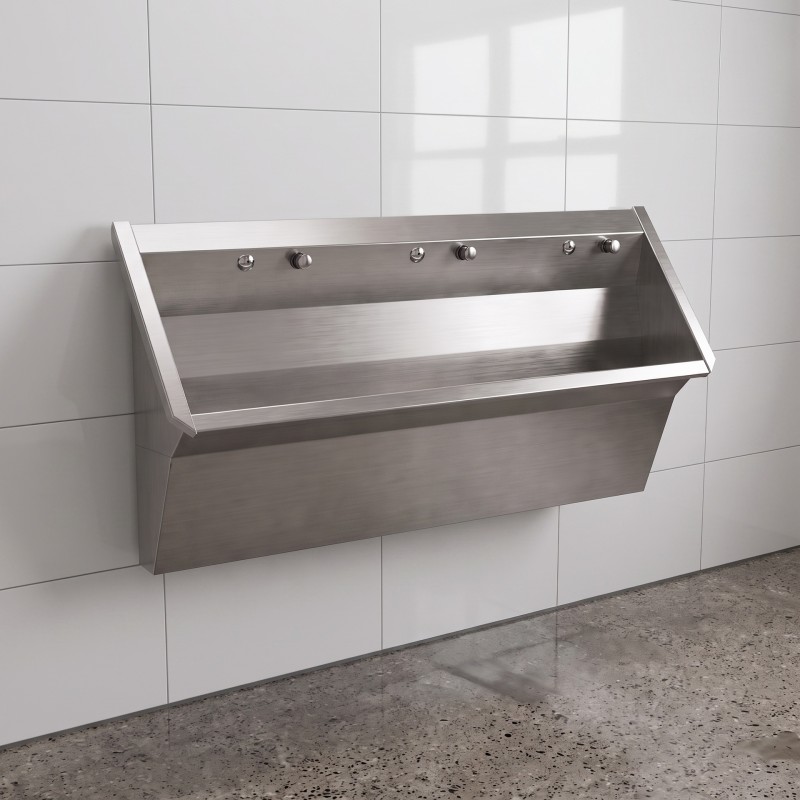

- Stainless steel trap cover skirt (Ref. INTER-A5)

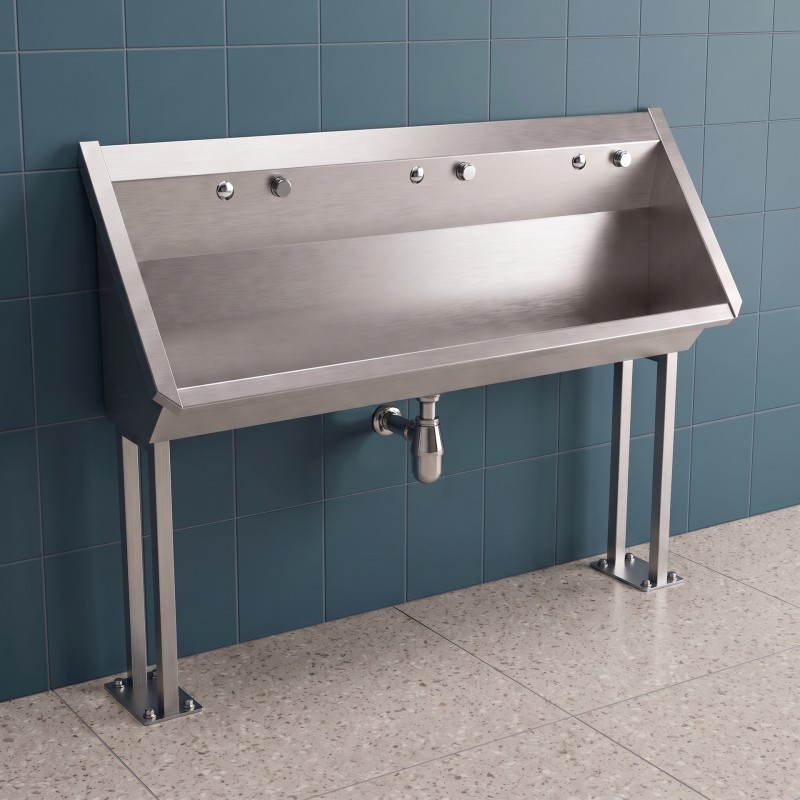

- Self-supporting on stainless steel legs (Ref. URCO-1P)
- Touch-free activation (Ref. ...-M9)
- Adjustable mounting bracket for horizontal or vertical alignment, perfect for serial installation (Ref. INTER-A61)
- Customizable to the centimeter (max 3 m)
- Material
- Bacteriostatic AISI 304 stainless steel
- Stainless steel thickness
- 1 mm
1,5 mm - Finish
- Brushed
- Water inlet
- Threaded M1/2''
- Evacuation
- 1 1/2''
- Fixation
- Wall mounted
- Dimensions
- D325 x H485 x W1200 - for 2 users
D325 x H485 x W1800 - for 3 users
D325 x H485 x W2400 - for 4 users
D325 x H485 x W3000 - for 5 users - Warranty
- 10 years. CE.
