Recessed 3 in 1 automatic stainless steel handwashing station

3 in 1 SOAP-WATER-AIR compact stainless steel recessed handwashing station for intensive use in public places.
Robust, compact and functional.

VANDAL-PROOF: 2 mm thick AISI 304 stainless steel

HYGIENE: touch-free, by infrared detection, to avoid germs from spreading.

SAFETY: the user has no access to the fixtures an fittings, water supply and evacuation in the technical gallery.

Maximizing utility in a minimal space.

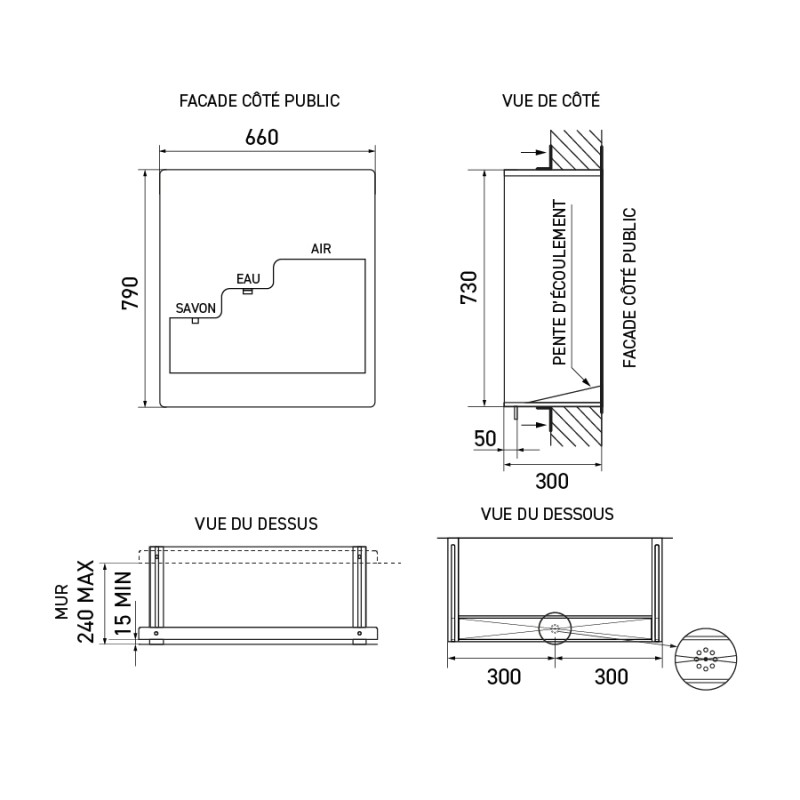

Front installation into the wall cutout, secured through the technical duct using two metal angles for drawer slides. This ensures both ease and stability during installation on walls with a thickness ranging from 15 to 240 mm.

Maintenance and soap refill only through mechanical room.

3 year limited guarantee

Soap = vertical spout with infrared detection. Operates via a peristaltic pump for liquid soap, with refillable 1L plastic bottle (larger capacity option). Delivers an exact soap dose. Automatic drip-proof dosing system.

Water = vertical spout with infrared self-adjustable detection for cold or pre-mixed water. Consistent 6 LPM flow (customizable upon request). Safety stop mechanism after 90 seconds of uninterrupted flow. 0.5-8 bar: max 70°C.

230/12V transformer for water and soap.

Air = 1000W high-speed energy-saving hand dryer with infrared detection. Adjustable air flow and sound volume. Heated or ambient air switch. Dries within less than 10 seconds.

  Registered model
