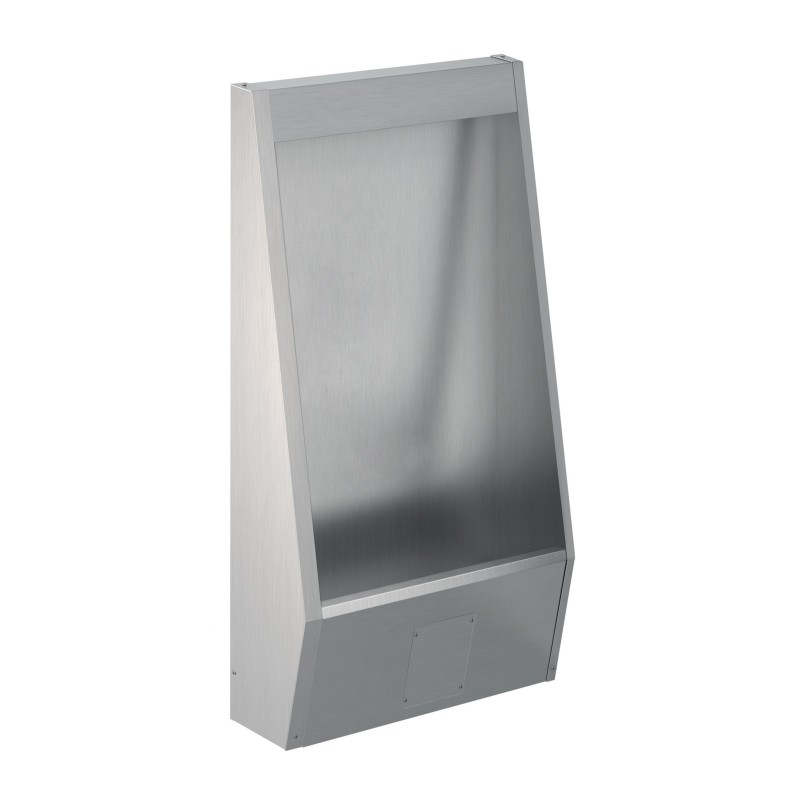

Floor-mounted stainless steel urinal stall with integrated automatic flushing.
Stainless steel floor-mounted urinal stall with integrated automatic flushing.
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
Floor-mounted stainless steel urinal stall with integrated automatic flushing.
Stainless steel floor-mounted urinal stall with integrated automatic flushing.

Free-standing stainless steel urinal stalls with integrated automatic flushing.

touch-free for better hygiene

URPX-600P-TH
€1,599.00 Tax Excl.
Ask a question

Free-standing stainless steel urinal stall, floor-mounted, with invisible thermal electronic activation = vandal-proof.

- Specifically designed for simplified installation and maintenance, with high modularity to suit the desired configuration.

- Central water supply ½". Drainage through a central waste fitting 1 1/2" (ø 40 mm).

- Complete flushing through a perforated stainless steel spray bar, creating a waterfall effect = accessible plumbing connection and removable spray bar.

AUTOMATIC RINSING = the system activates the flush when it detects a change in temperature (heat of the urine).

The quality of a unique detection system located in the dry section ensures a very long lifespan.
No risk of damage from urine, unlike other systems integrated into the trap.

OPTIONS :

  • Remote control (ref. SLD04)
  • Transformer box to supply up to 5 faucets (ref. SPZ02)
  • Transformer box to supply up to 9 faucets (ref. SPZ01)
  • DIN rail transformer upon request

  • Joint cover between stalls (ref. URPX-JP)
  • 90° or custom angle covers (ref. URPX-ANGP)
  • Visible side cover not mounted against the wall (ref. URPX-LAT-GP or URPX-LAT-DP)
  • Separator screen (ref. URPX-SEP)

ecran-separateur-urinoir-inox-URPX-SEP

Quote upon request for custom modular installation, corner covers, and joints with concealed screws.

For stadiums, schools, performance venues, etc..



Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
1,2 mm
Finish
Brushed
Water inlet
Threaded M1/2''
Evacuation
1 1/2" Ø 40 mm (trap included)
Dimensions
W600 x D240 x H1225 mm
W1200 x D240 x H1225 mm
W1800 x D240 x H1225 mm

Free-standing stainless steel urinal stall, floor-mounted, with invisible thermal electronic activation = vandal-proof.

- Specifically designed for simplified installation and maintenance, with high modularity to suit the desired configuration.

- Central water supply ½". Drainage through a central waste fitting 1 1/2" (ø 40 mm).

- Complete flushing through a perforated stainless steel spray bar, creating a waterfall effect = accessible plumbing connection and removable spray bar.

AUTOMATIC RINSING = the system activates the flush when it detects a change in temperature (heat of the urine).

The quality of a unique detection system located in the dry section ensures a very long lifespan.
No risk of damage from urine, unlike other systems integrated into the trap.

OPTIONS :

  • Remote control (ref. SLD04)
  • Transformer box to supply up to 5 faucets (ref. SPZ02)
  • Transformer box to supply up to 9 faucets (ref. SPZ01)
  • DIN rail transformer upon request

  • Joint cover between stalls (ref. URPX-JP)
  • 90° or custom angle covers (ref. URPX-ANGP)
  • Visible side cover not mounted against the wall (ref. URPX-LAT-GP or URPX-LAT-DP)
  • Separator screen (ref. URPX-SEP)

ecran-separateur-urinoir-inox-URPX-SEP

Quote upon request for custom modular installation, corner covers, and joints with concealed screws.

For stadiums, schools, performance venues, etc..



Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
1,2 mm
Finish
Brushed
Water inlet
Threaded M1/2''
Evacuation
1 1/2" Ø 40 mm (trap included)
Dimensions
W600 x D240 x H1225 mm
W1200 x D240 x H1225 mm
W1800 x D240 x H1225 mm
