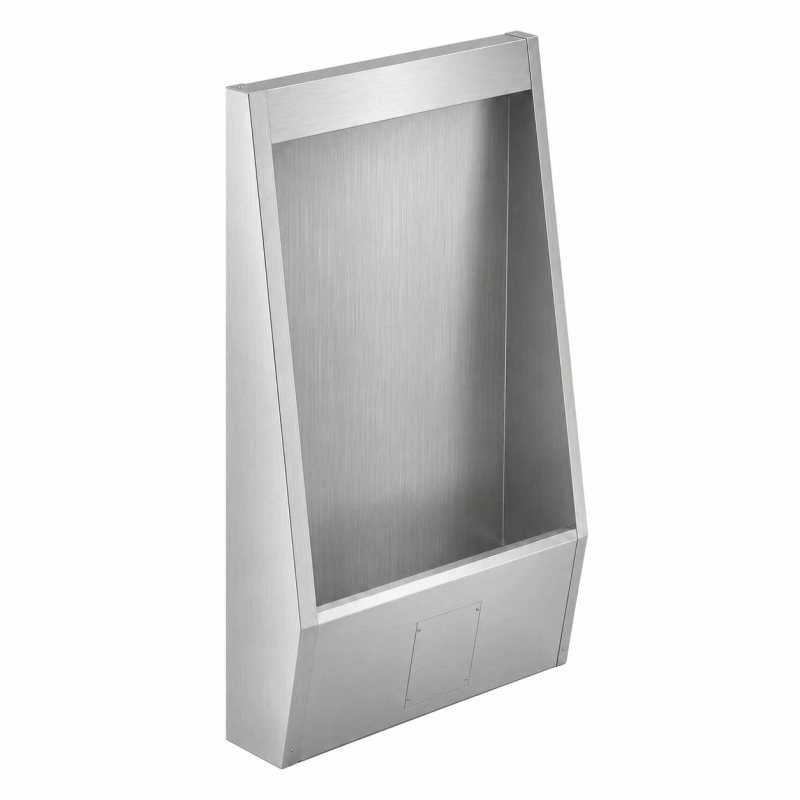

Photo Floor-mounted stainless steel urinal stall with integrated automatic flushing. URPX-600P-TH

Free-standing stainless steel urinal stalls with integrated automatic flushing.

touch-free for better hygiene

Ref. : URPX-600P-TH

€1,599.00 excl. VAT

Tax excluded

Dimensions

Quantity

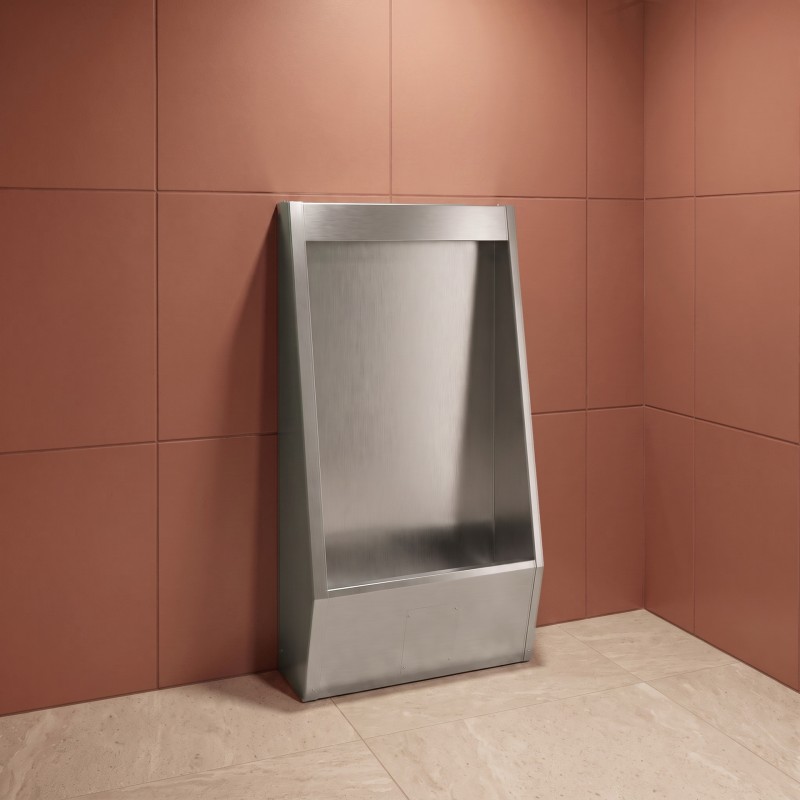

Free-standing stainless steel urinal stall, floor-mounted, with invisible thermal electronic activation = vandal-proof.

- Specifically designed for simplified installation and maintenance, with high modularity to suit the desired configuration.

- Central water supply ½". Drainage through a central waste fitting 1 1/2" (ø 40 mm).

- Complete flushing through a perforated stainless steel spray bar, creating a waterfall effect = accessible plumbing connection and removable spray bar.

AUTOMATIC RINSING = the system activates the flush when it detects a change in temperature (heat of the urine).

The quality of a unique detection system located in the dry section ensures a very long lifespan.
No risk of damage from urine, unlike other systems integrated into the trap.

OPTIONS :

Remote control (ref. SLD04)
Transformer box to supply up to 5 faucets (ref. SPZ02)
Transformer box to supply up to 9 faucets (ref. SPZ01)
DIN rail transformer upon request
Joint cover between stalls (ref. URPX-JP)
90° or custom angle covers (ref. URPX-ANGP)
Visible side cover not mounted against the wall (ref. URPX-LAT-GP or URPX-LAT-DP)
Separator screen (ref. URPX-SEP)

Quote upon request for custom modular installation, corner covers, and joints with concealed screws.

For stadiums, schools, performance venues, etc..

Material: Bacteriostatic AISI 304 stainless steel
Stainless steel thickness: 1,2 mm
Finish: Brushed
Water inlet: Threaded M1/2''
Evacuation: 1 1/2" Ø 40 mm (skimmer included)
Dimensions: W600 x D240 x H1225 mm
W1200 x D240 x H1225 mm
W1800 x D240 x H1225 mm
