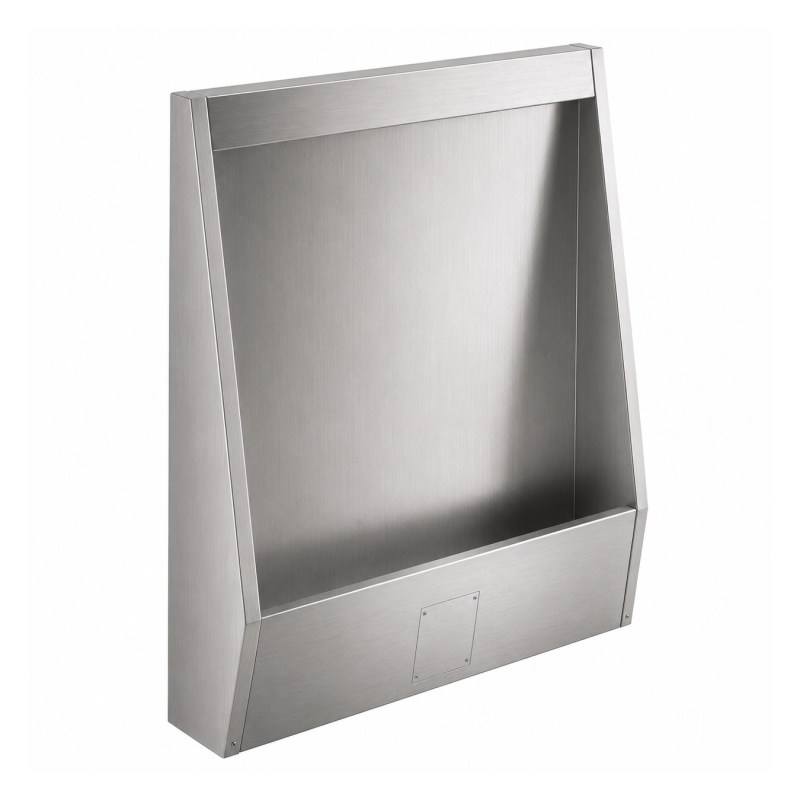

Free-standing stainless steel urinal stalls with integrated automatic flushing.
touch-free for better hygiene
Free-standing stainless steel urinal stall, floor-mounted, with invisible thermal electronic activation = vandal-proof.
- Specifically designed for simplified installation and maintenance, with high modularity to suit the desired configuration.
- Central water supply ½". Drainage through a central waste fitting 1 1/2" (ø 40 mm).
- Complete flushing through a perforated stainless steel spray bar, creating a waterfall effect = accessible plumbing connection and removable spray bar.
AUTOMATIC RINSING = the system activates the flush when it detects a change in temperature (heat of the urine).
| The quality of a unique detection system located in the dry section ensures a very long lifespan. No risk of damage from urine, unlike other systems integrated into the trap. |
ECO modes for high water savings:
ECO 1: Reduction in the number of rincing cycles during peak usage periods (schools, theatres, stadiums...).
ECO 2: Flushing of the urinal after each use, but not always with the same water volume.
Adjustable settings depending on usage frequency.
OPTIONS :

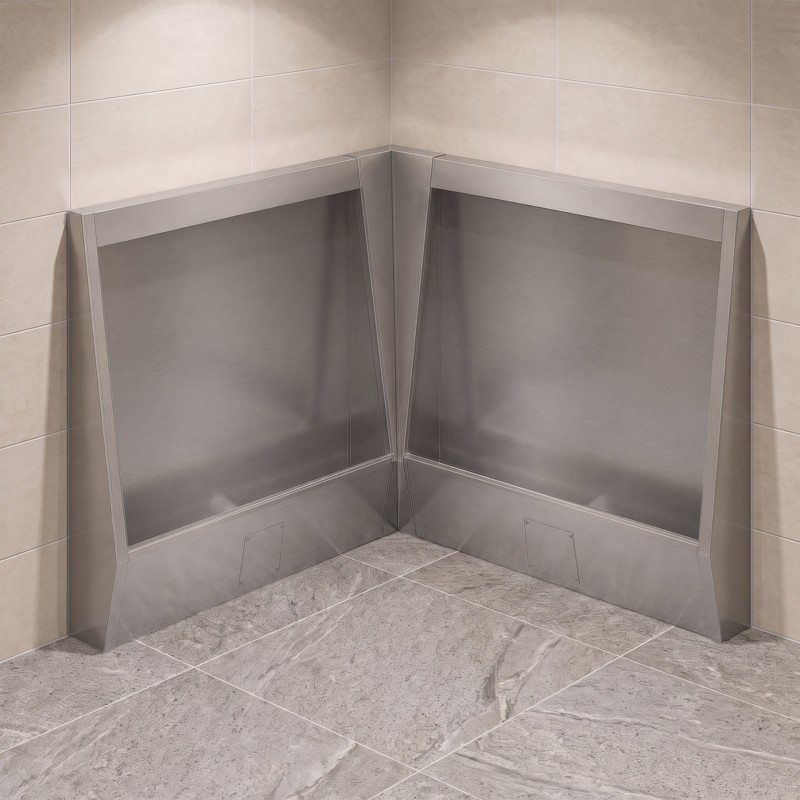

Quote upon request for custom modular installation, corner covers, and joints with concealed screws.

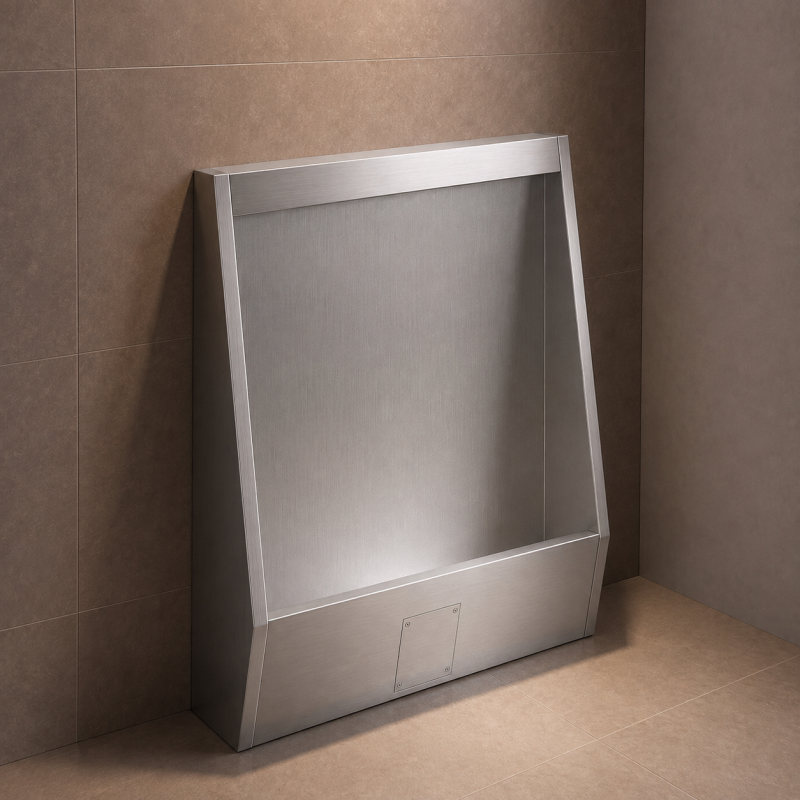

For stadiums, schools, performance venues, etc..
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.2 mm
- Finish
- Brushed
- Water inlet
- 1/2"
- Evacuation
- Ø 40 mm

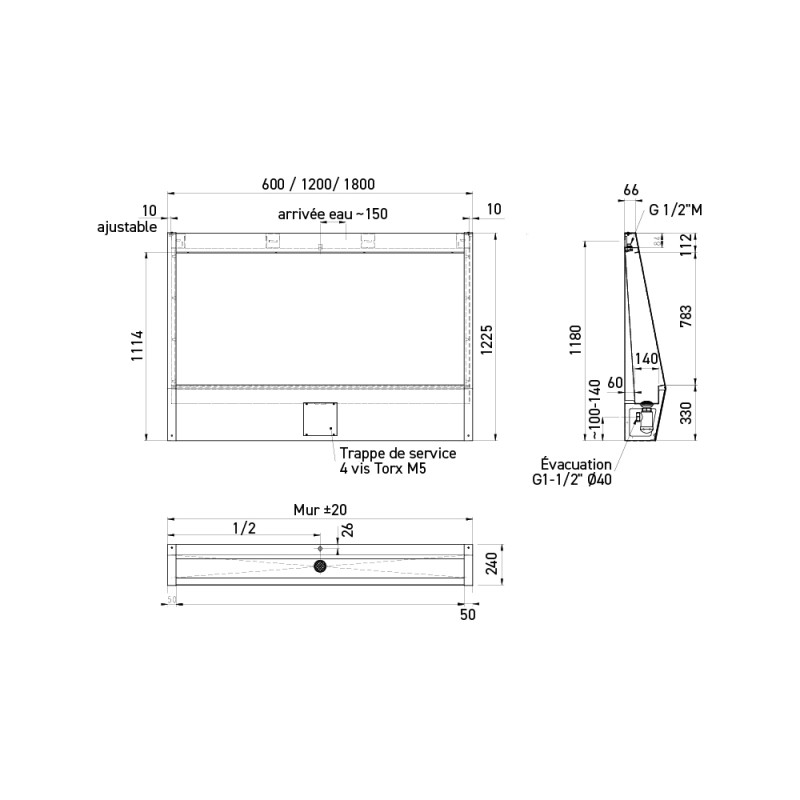

- Dimensions
- W600 x D240 x H1225 mm
W1200 x D240 x H1225 mm
W1800 x D240 x H1225 mm - Waste connection
- 1 1/2"
- Outlet details
- 1 1/2" Ø 40 mm (trap included)
- Connection gender
- Male
Free-standing stainless steel urinal stall, floor-mounted, with invisible thermal electronic activation = vandal-proof.
- Specifically designed for simplified installation and maintenance, with high modularity to suit the desired configuration.
- Central water supply ½". Drainage through a central waste fitting 1 1/2" (ø 40 mm).
- Complete flushing through a perforated stainless steel spray bar, creating a waterfall effect = accessible plumbing connection and removable spray bar.
AUTOMATIC RINSING = the system activates the flush when it detects a change in temperature (heat of the urine).
| The quality of a unique detection system located in the dry section ensures a very long lifespan. No risk of damage from urine, unlike other systems integrated into the trap. |
ECO modes for high water savings:
ECO 1: Reduction in the number of rincing cycles during peak usage periods (schools, theatres, stadiums...).
ECO 2: Flushing of the urinal after each use, but not always with the same water volume.
Adjustable settings depending on usage frequency.
OPTIONS :
Quote upon request for custom modular installation, corner covers, and joints with concealed screws.
For stadiums, schools, performance venues, etc..
- Material
- AISI 304 stainless steel
- Stainless steel thickness
- 1.2 mm
- Finish
- Brushed
- Water inlet
- 1/2"
- Evacuation
- Ø 40 mm
- Dimensions
- W600 x D240 x H1225 mm
W1200 x D240 x H1225 mm
W1800 x D240 x H1225 mm - Waste connection
- 1 1/2"
- Outlet details
- 1 1/2" Ø 40 mm (trap included)
- Connection gender
- Male
