Stainless steel wash trough with integrated brackets
Stainless steel multi-user washbasin for industrial sites, schools, public areas and other public facilities
Previous
Next
Stainless steel wash trough with integrated brackets
Stainless steel multi-user washbasin for industrial sites, schools, public areas and other public facilities

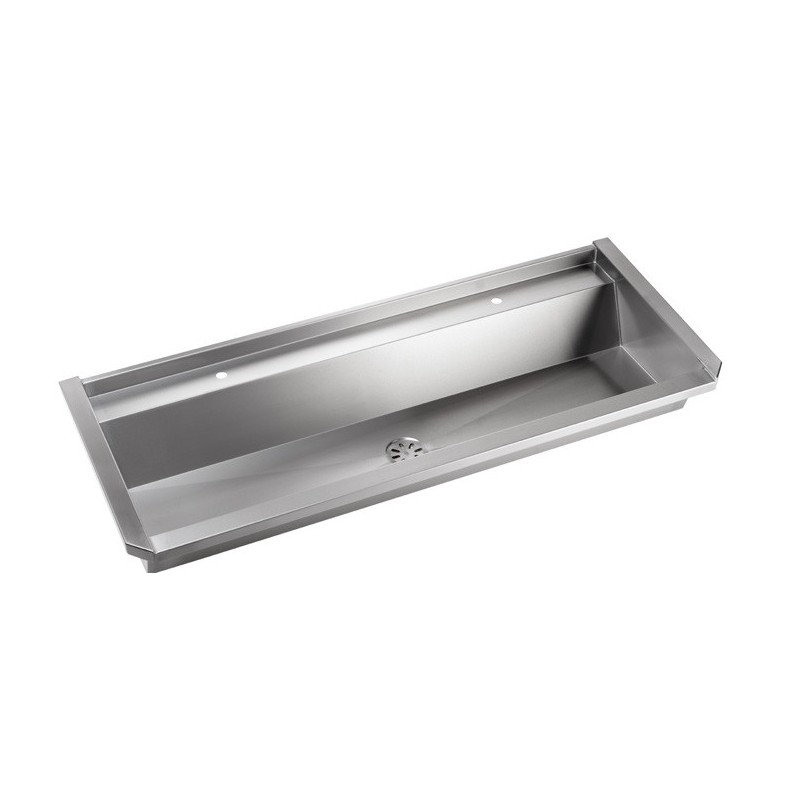

Multi-user stainless steel wash trough INTER-5

Multi-user wash trough for heavy use on exposed sites

Reference INTER-5-60
Unit price
€456.00
Faucet hole
Dimension

Free shipping from €1,000 excl. VAT in mainland France. Delivery terms

INTER-5 multi-user washbasin in AISI 304 stainless steel for 1 to 5 users, with tap deck and rear upstand,  particularly suited to environments that demand strict hygiene and high durability, such as commercial kitchens, laboratories, hospitals and other public or industrial spaces.

- Raised rear edge protects the wall from water and makes cleaning easier.
- Robotic welding with no grooves in the corners, preventing bacterial growth.
- Inner corners along the length of the basin > 90° for easier cleaning.
- Flat bottom takes a 15 l bucket.
- Bowl depth 142 mm. Perforated central 1 1/2" waste grate.
- Quick and easy installation with 4 fixing points.
- Complies with standard EN 14296 on the load resistance of sanitary appliances.
- Accessible to people with reduced mobility from a width of 100 cm.

Rounded corner Pressed waste with no water retention Robotic weld Washbasin with bucket Optional lift-up stainless steel grid, as a rest or drainer SOFT TOUCH with wide folded lower edges
Rounded corners to prevent injury on impact Pressed waste with no water retention or screws, for hygiene and easy cleaning High-quality welding. Inner corners greater than 90° Enough space for a bucket Optional lift-up stainless steel grid, as a rest or drainer "SOFT TOUCH" with wide folded lower edges

ADVANTAGES OF STAINLESS STEEL

  • Exceptionally light and strong compared with ceramic and fine fireclay multi-user washbasins.
  • Stainless steel is tough and does not break on impact = vandal resistance + safety.
  • Hygienic. Biologically inert + smooth, non-porous surface = easy maintenance and minimal risk of bacterial growth.
  • Durable. Excellent resistance to oxidation and corrosion = long service life.
  • Eco-friendly. 100% recyclable, contributing to the requirements of the HQE standard.

OPTIONS:

  • Tap holes Ø 22 or 35 mm.
  • Made to measure (supplied to the nearest centimetre, up to 3 m max).
  • Splashback H 292 mm.
  • Pair of stainless steel legs (Ref. INTER-P2)
  • Lift-up stainless steel support grid.
  • Chrome-plated brass trap for 1 1/2'' waste, removable base (40x49 outlet with nut). Ref. BS-12.
  • Stainless steel trap cover.

Material
AISI 304 stainless steel
Detailed composition
Sides 1.5 mm - tank 1 mm
Stainless steel thickness
1 mm
1.5 mm
Finish
Brushed
Evacuation
Ø 40 mm
Waste connection
1 1/2"
Fixing
Wall mounted
Dimensions
W600 x D474 x H197 mm
W1000 x D474 x H197 mm
W1200 x D474 x H197 mm
W1400 x D474 x H197 mm
W1500 x D474 x H197 mm
W1800 x D474 x H197 mm
W2000 x D474 x H197 mm
W2100 x D474 x H197 mm
W2400 x D474 x H197 mm
W2800 x D474 x H197 mm
W3000 x D474 x H197 mm

INTER-5 multi-user washbasin in AISI 304 stainless steel for 1 to 5 users, with tap deck and rear upstand,  particularly suited to environments that demand strict hygiene and high durability, such as commercial kitchens, laboratories, hospitals and other public or industrial spaces.

- Raised rear edge protects the wall from water and makes cleaning easier.
- Robotic welding with no grooves in the corners, preventing bacterial growth.
- Inner corners along the length of the basin > 90° for easier cleaning.
- Flat bottom takes a 15 l bucket.
- Bowl depth 142 mm. Perforated central 1 1/2" waste grate.
- Quick and easy installation with 4 fixing points.
- Complies with standard EN 14296 on the load resistance of sanitary appliances.
- Accessible to people with reduced mobility from a width of 100 cm.

Rounded corner Pressed waste with no water retention Robotic weld Washbasin with bucket Optional lift-up stainless steel grid, as a rest or drainer SOFT TOUCH with wide folded lower edges
Rounded corners to prevent injury on impact Pressed waste with no water retention or screws, for hygiene and easy cleaning High-quality welding. Inner corners greater than 90° Enough space for a bucket Optional lift-up stainless steel grid, as a rest or drainer "SOFT TOUCH" with wide folded lower edges

ADVANTAGES OF STAINLESS STEEL

  • Exceptionally light and strong compared with ceramic and fine fireclay multi-user washbasins.
  • Stainless steel is tough and does not break on impact = vandal resistance + safety.
  • Hygienic. Biologically inert + smooth, non-porous surface = easy maintenance and minimal risk of bacterial growth.
  • Durable. Excellent resistance to oxidation and corrosion = long service life.
  • Eco-friendly. 100% recyclable, contributing to the requirements of the HQE standard.

OPTIONS:

  • Tap holes Ø 22 or 35 mm.
  • Made to measure (supplied to the nearest centimetre, up to 3 m max).
  • Splashback H 292 mm.
  • Pair of stainless steel legs (Ref. INTER-P2)
  • Lift-up stainless steel support grid.
  • Chrome-plated brass trap for 1 1/2'' waste, removable base (40x49 outlet with nut). Ref. BS-12.
  • Stainless steel trap cover.

Material
AISI 304 stainless steel
Detailed composition
Sides 1.5 mm - tank 1 mm
Stainless steel thickness
1 mm
1.5 mm
Finish
Brushed
Evacuation
Ø 40 mm
Waste connection
1 1/2"
Fixing
Wall mounted
Dimensions
W600 x D474 x H197 mm
W1000 x D474 x H197 mm
W1200 x D474 x H197 mm
W1400 x D474 x H197 mm
W1500 x D474 x H197 mm
W1800 x D474 x H197 mm
W2000 x D474 x H197 mm
W2100 x D474 x H197 mm
W2400 x D474 x H197 mm
W2800 x D474 x H197 mm
W3000 x D474 x H197 mm
