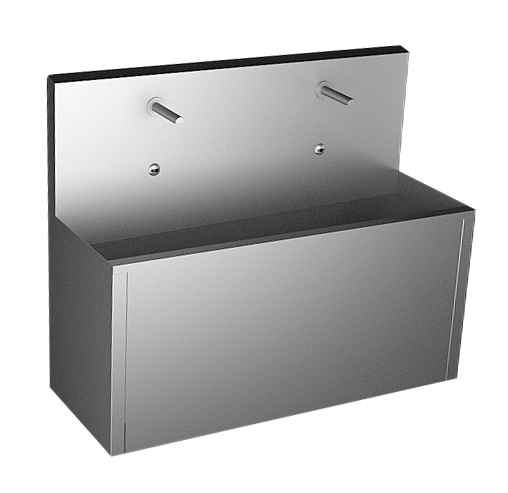

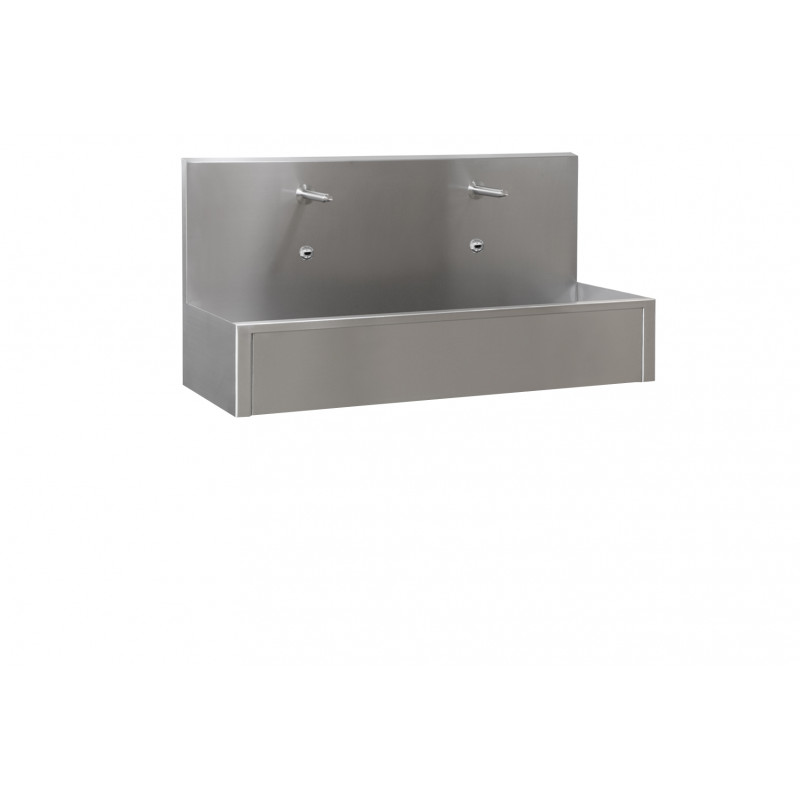

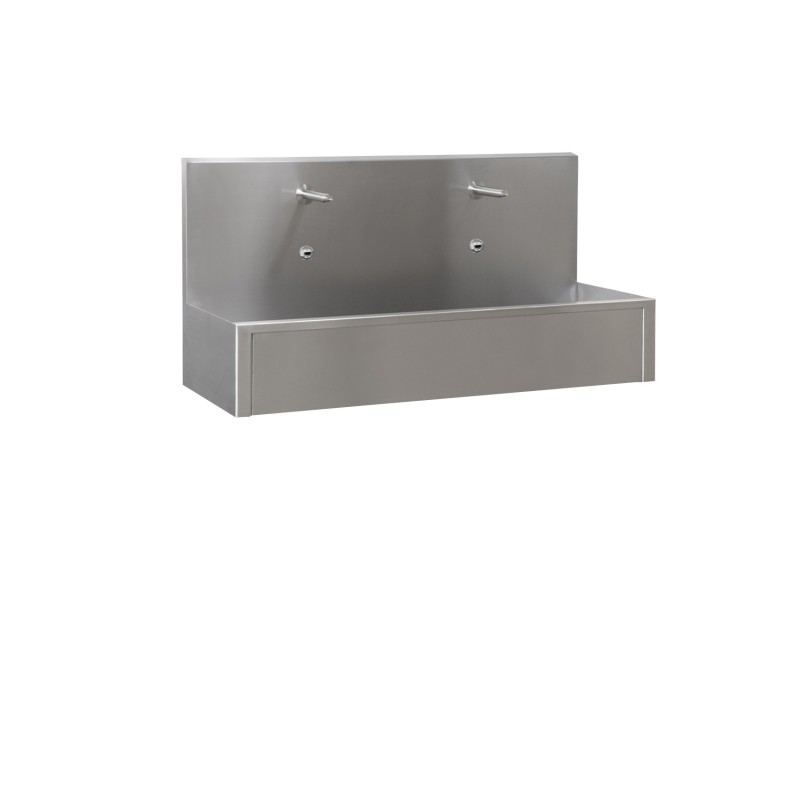

Collective wash basin 2-5 places electronic taps integrated
easy and quick installation
LM-80E
€2,430.00 excl. VAT
Tax excluded
Mural wash basin in stainless steel collective with wall electronic taps integrated (cold water or pre-mixed).
Operation function STANDARD = the water runs as long as the hands are placed in the detection area
or function START/STOP = the water runs when approaching the hands from 5-10 cm from the detection area and stops when placing your hands again at a short distance.
- Infrared detection with stainless steel spouts, solenoid valves 1/2'', connection pipes.
- 2 stopcocks with squares and check valves (pre-mixed water) and filters, plug and s-trap included.
- External transformer 230/24V in sus.
- Remote control SLD03 pour adjusting the settings (detection length, flow time, start/stop, periodical rinse).
OPTIONS:
- Remote control SLD03
- Transformer box to supply up to 5 faucets (ref. SPZ02)
- Transformer box to supply up to 9 faucets (ref. SPZ01)
- Temporized tap with push button or without taps.
- Pre-mixed thermostatic integrated.
- Lower concealed closed s-trap.
;
- Material
- Bacteriostatic AISI 304 stainless steel
- Stainless steel thickness
- Sides 1,5 mm - tank 1,2 mm
- Finish
- Brushed
- Tap sensor
- Infrared autoadjustable
- Electrical supply
- 230/24V transformer
- Security off
- After 5 minutes without interruption (adjustable)
- Water supply
- For cold or pre-mixed water
- Water inlet
- 1/2''
- Evacuation
- 1 1/4''
- Pressure
- 1-6 bars
- Max. temperature eligible
- 70°C
- Flow rate
- 6 LPM (on demand 3,8 or 1,9 LPM.)
- Fixation
- Wall mounted
- Dimensions
- W1250 x D480 x H670 mm
W1900 x D480 x H670 mm
W2500 x D480 x H670 mm
W3000 x D480 x H670 mm - Warranty
- Electronic 5 years
