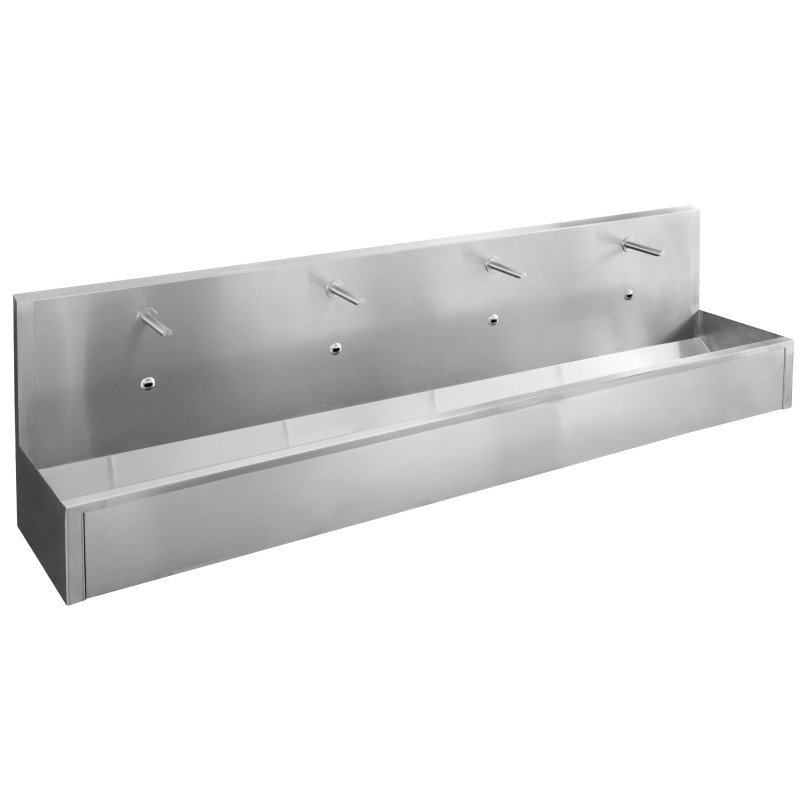

Collective wash basin mural stainless steel with automatic faucet integrated

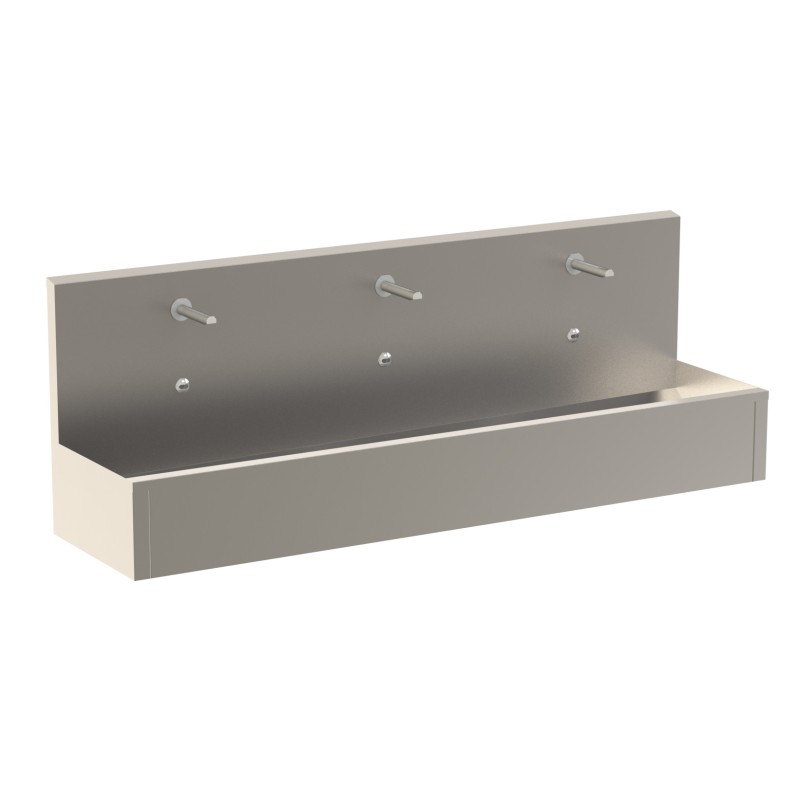

Collective wash basin mural stainless steel 3 faucets electronic integrated

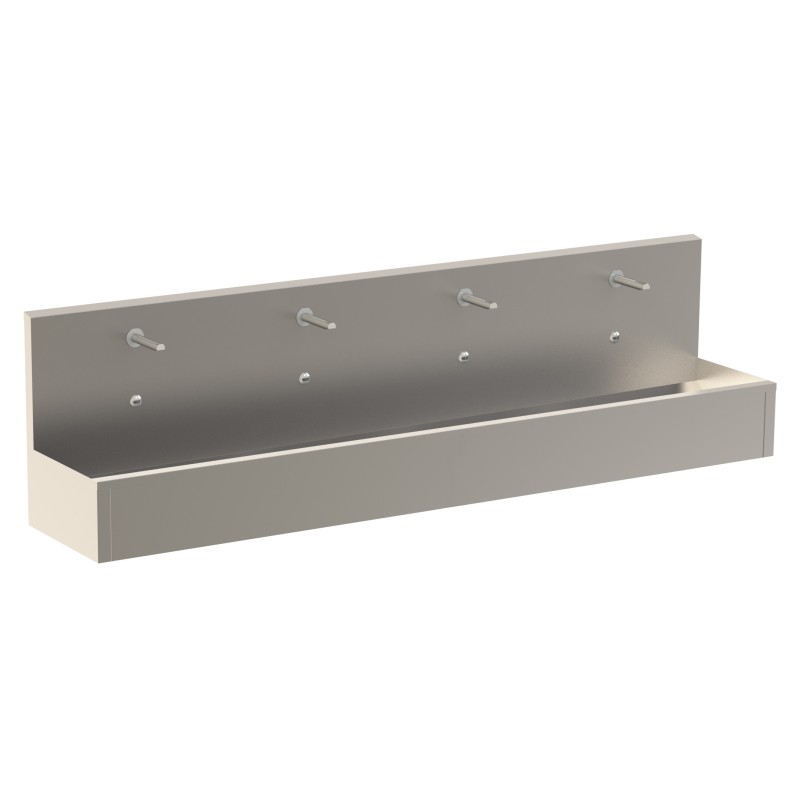

Collective wash basin mural stainless steel 4 faucets electronic integrated
Collective wash basin mural stainless steel 5 electronic faucets integrated

Collective wash basin 2-5 places electronic taps integrated

easy and quick installation

LM-80E
€2,430.00 Tax Excl.

Dimension

Mural wash basin in stainless steel collective with wall electronic taps integrated (cold water or pre-mixed).

Operation function STANDARD = the water runs as long as the hands are placed in the detection area
or function START/STOP = the water runs when approaching the hands from 5-10 cm from the detection area and stops when placing your hands again at a short distance.

- Infrared detection with stainless steel spouts, solenoid valves 1/2'', connection pipes.

- 2 stopcocks with squares and check valves (pre-mixed water) and filters, plug and s-trap included.

- External transformer 230/24V in sus.

- Remote control SLD03 pour adjusting the settings (detection length, flow time, start/stop, periodical rinse).

OPTIONS:

  • Remote control SLD03
  • Transformer box to supply up to 5 faucets (ref. SPZ02)
  • Transformer box to supply up to 9 faucets (ref. SPZ01)
  • Temporized tap with push button or without taps.
  • Pre-mixed thermostatic integrated.
  • Lower concealed closed s-trap.

Lavabo inox antivandalisme automatique avec cache-siphon;

Material
Bacteriostatic AISI 304 stainless steel
Stainless steel thickness
Sides 1,5 mm - tank 1,2 mm
Finish
Brushed
Tap sensor
Self-adjusting infrared
Electrical supply
230/24V transformer
Safety shut-off
After 5 minutes without interruption (adjustable)
Water supply
Single supply: cold water or pre-mixed water (mixed upstream)
Water inlet
1/2''
Evacuation
1 1/4''
Pressure
1-6 bars
Max. eligible temperature
70°C
Flow rate
6 LPM (3,8 or 1,9 LPM upon request)
Fixing
Wall mounted
Dimensions
W1250 x D480 x H670 mm
W1900 x D480 x H670 mm
W2500 x D480 x H670 mm
W3000 x D480 x H670 mm
Warranty
Electronics 5 years
