Floor-standing wash trough with integrated sensor taps
Installation with no wall fixing
Technical sheet & documents
No technical sheet available for this reference. Request the sheet

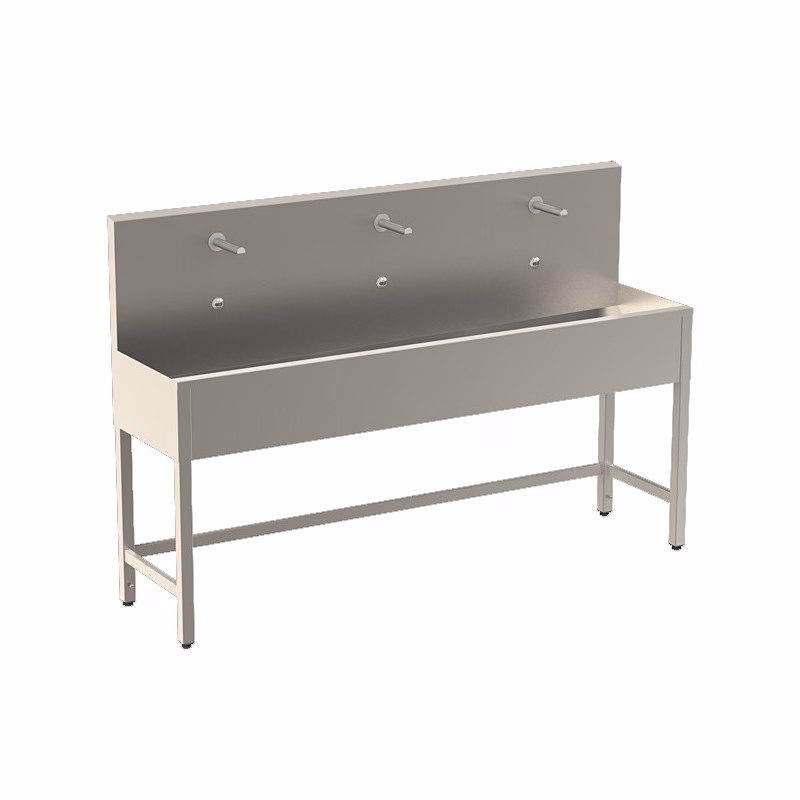

FLOOR-STANDING STAINLESS STEEL WASH TROUGH FOR 2 TO 5 USERS, WITH INTEGRATED SENSOR TAPS
The solution when the washbasins cannot be fixed to the wall.
STANDARD operating mode: water flows as long as the hands are in the detection zone
or ON/OFF operating mode: water starts when a hand comes within 5-10 cm of the sensor and stops when the hand is brought close to it again
- Infrared sensors with wall-mounted spouts, 1/2'' solenoid valves, connection hoses, 2 angle stop valves with non-return valve and filter, waste and trap included.
- External 230/24 V transformer sold separately.
- Optional SLD03 remote control to adjust the settings (detection range, run time, on/off, periodic hygiene flush).
- Power supply
- 230/24V transformer
- Safety shut-off
- After 5 minutes without interruption (adjustable)
- Material
- AISI 304 stainless steel
- Detailed composition
- Sides 1.5 mm - tank 1.2 mm
- Stainless steel thickness
- 1.2 mm
1.5 mm - Finish
- Brushed
- Tap sensor
- Self-adjusting infrared
- Water inlet
- 1/2"
- Evacuation
- Ø 50 mm
- Pressure
- 1-6 bars
- Max. eligible temperature
- 70°C
- Flow rate
- 6 LPM (3.8 or 1.9 LPM upon request)
- Fixing
- Floor mounted
- Mounting details
- On feet
- Dimensions
- W1250 x D480 x H1270 mm (wash basin 850 mm) - Tray D380 x H250 mm
W1900 x D480 x H1270 mm (wash basin 850 mm)
W2500 x D480 x H1270 mm (wash basin 850 mm)
W3000 x D480 x H1270 mm (wash basin 850 mm)
FLOOR-STANDING STAINLESS STEEL WASH TROUGH FOR 2 TO 5 USERS, WITH INTEGRATED SENSOR TAPS
The solution when the washbasins cannot be fixed to the wall.
STANDARD operating mode: water flows as long as the hands are in the detection zone
or ON/OFF operating mode: water starts when a hand comes within 5-10 cm of the sensor and stops when the hand is brought close to it again
- Infrared sensors with wall-mounted spouts, 1/2'' solenoid valves, connection hoses, 2 angle stop valves with non-return valve and filter, waste and trap included.
- External 230/24 V transformer sold separately.
- Optional SLD03 remote control to adjust the settings (detection range, run time, on/off, periodic hygiene flush).
- Power supply
- 230/24V transformer
- Safety shut-off
- After 5 minutes without interruption (adjustable)
- Material
- AISI 304 stainless steel
- Detailed composition
- Sides 1.5 mm - tank 1.2 mm
- Stainless steel thickness
- 1.2 mm
1.5 mm - Finish
- Brushed
- Tap sensor
- Self-adjusting infrared
- Water inlet
- 1/2"
- Evacuation
- Ø 50 mm
- Pressure
- 1-6 bars
- Max. eligible temperature
- 70°C
- Flow rate
- 6 LPM (3.8 or 1.9 LPM upon request)
- Fixing
- Floor mounted
- Mounting details
- On feet
- Dimensions
- W1250 x D480 x H1270 mm (wash basin 850 mm) - Tray D380 x H250 mm
W1900 x D480 x H1270 mm (wash basin 850 mm)
W2500 x D480 x H1270 mm (wash basin 850 mm)
W3000 x D480 x H1270 mm (wash basin 850 mm)
