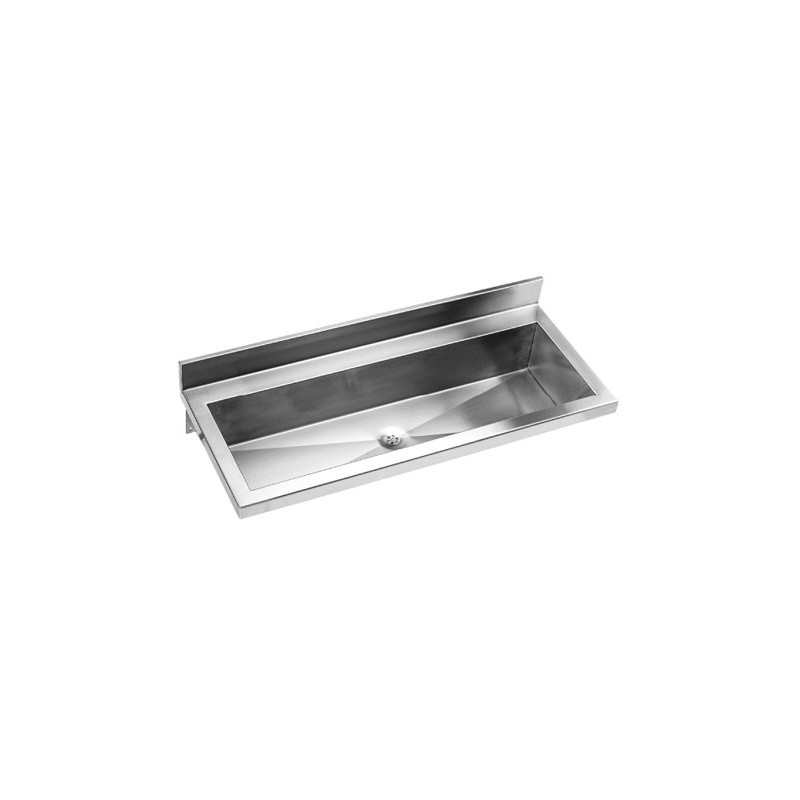

Wash basin stainless steel collective wall mounted vandal-proof

Collective wall mounted wash basin in stainless steel

with spaces for taps...

Reference LVC-P-1200
Unit price
€995.00 Tax Excl.

Technical sheet & documents

No technical sheet available for this reference. Request the sheet

Faucet hole
Dimension
Ask a question

COLLECTIVE HAND WASH WALL MOUNTED STAINLESS STEEL WITH SPACES FOR TAPS
particularly robust

Height 200 / backsplash 100 mm.

OPTIONS

  • Tap hole Ø 22 or Ø 35 mm.

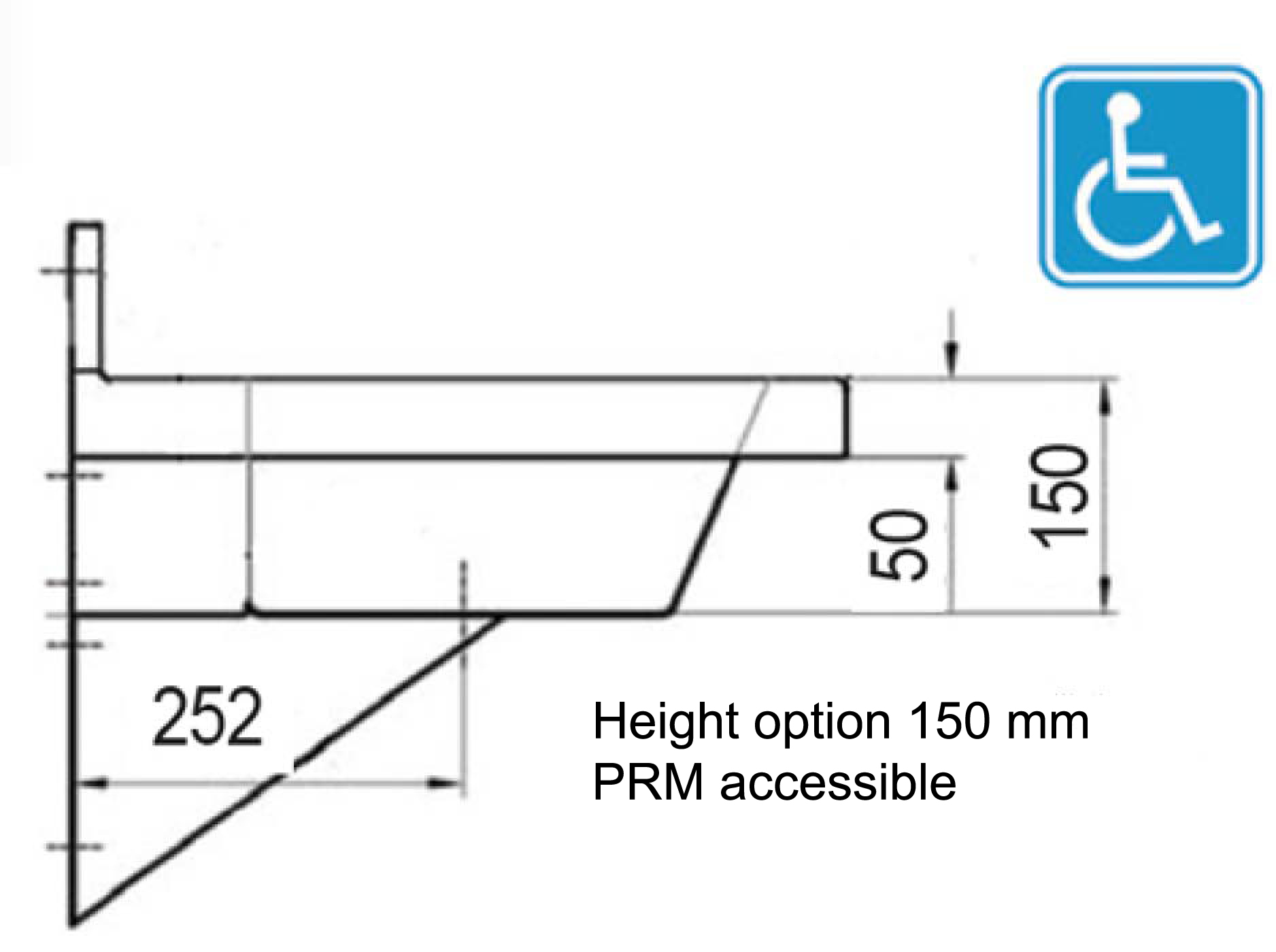

  • Height 150 mm accessibility P.M.R. (Ref. ...-H)
  • Concealed stainless steel s-trap (Ref. LM-CS)
  • Pair of stainless steel feet (Ref. IN-P2)
  • Without back splash.
  • Back splash high thickness 50 mm plumbing integrated.

Material
AISI 304 stainless steel
Stainless steel thickness
1.5 mm
Finish
Brushed
Evacuation
Ø 32 mm
Fixing
Wall mounted
Dimensions
W1200 x D500 x H300 mm
W1800 x D500 x H300 mm
W2400 x D500 x H300 mm
Waste connection
1 1/4"
Outlet details
Perforated grid free drainage, drain 1 1/4''

COLLECTIVE HAND WASH WALL MOUNTED STAINLESS STEEL WITH SPACES FOR TAPS
particularly robust

Height 200 / backsplash 100 mm.

OPTIONS

  • Tap hole Ø 22 or Ø 35 mm.
  • Height 150 mm accessibility P.M.R. (Ref. ...-H)
  • Concealed stainless steel s-trap (Ref. LM-CS)
  • Pair of stainless steel feet (Ref. IN-P2)
  • Without back splash.
  • Back splash high thickness 50 mm plumbing integrated.

Material
AISI 304 stainless steel
Stainless steel thickness
1.5 mm
Finish
Brushed
Evacuation
Ø 32 mm
Fixing
Wall mounted
Dimensions
W1200 x D500 x H300 mm
W1800 x D500 x H300 mm
W2400 x D500 x H300 mm
Waste connection
1 1/4"
Outlet details
Perforated grid free drainage, drain 1 1/4''
